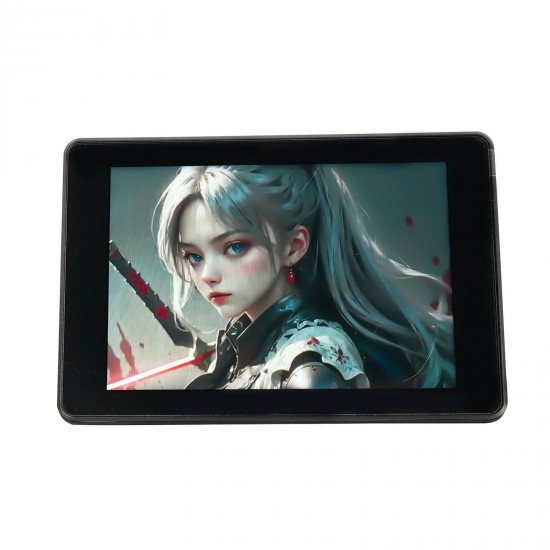

ESP32-S3 3.5inch Capacitive Touch Display Development Board With Enclosure - 320x480 Pixles - IPS TFT Panel - 65K RGB Color - Wi-Fi and Bluetooth 5 - JC3248W535C_I_Y
The ESP32-S3 3.5-inch Capacitive Touch Display Development Board is a powerful all-in-one solution for HMI, IoT, and embedded display applications. Featuring a 3.5-inch IPS TFT panel with a 320 × 480 pixel resolution and 65K RGB color depth, it delivers sharp visuals and wide viewing angles for interactive user interfaces.
Powered by the ESP32-S3 microcontroller, this development board supports Wi-Fi and Bluetooth 5, making it ideal for connected applications such as smart home controls, industrial dashboards, and IoT terminals. The capacitive touch screen enables smooth and accurate multi-touch interaction, while the included protective enclosure ensures durability and a clean, finished appearance for end-use products.
Designed for ease of development, the board supports popular frameworks such as Arduino, ESP-IDF, and MicroPython, allowing rapid prototyping and deployment. With its compact form factor, integrated connectivity, and high-quality display, this ESP32-S3 display development board is well-suited for both hobbyists and professional embedded developers.
Features
- Powered by ESP32-S3 microcontroller with high-performance dual-core processor
- 3.5-inch IPS TFT display with wide viewing angles
- Capacitive touch panel for smooth and responsive multi-touch interaction
- 320 × 480 pixel resolution with 65K RGB color depth for vivid visuals
- Supports Wi-Fi (2.4GHz) and Bluetooth 5 for wireless connectivity
- Integrated display driver and touch controller for easy development
- Pre-installed enclosure for protection and professional finish
- Supports popular development platforms: Arduino, ESP-IDF, MicroPython
- Ideal for HMI interfaces, smart control panels, IoT dashboards, and embedded UI applications
- Compact all-in-one design reduces external wiring and development time
Specifications
- Model: JC3248W535C_I_Y
- Size: 3.5 inch
- Resolution: 320*480(Pixel)
- Display color: RGB 65K color
- Display Type: IPS TFT LCD
- Touch Type: Capacitive touch panel
- Driver chip: AXS15231B
- Effective display area: 73.4* 49.0(mm)
- Module size: 94.5*62.0(mm)
- Operating temperature: -20℃~70℃
- storage temperature: -30℃~80℃
- Operating Voltage: 5V
- Power consumption: About 150mA
Package Includes

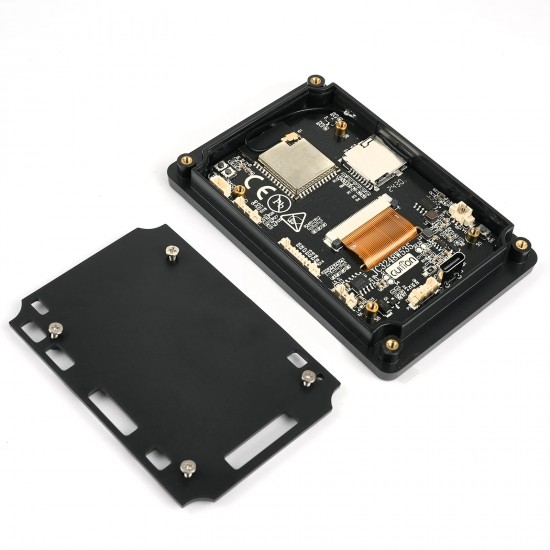

- 1x ESP32-S3 3.5-inch capacitive touch IPS module
- 1x Screw Set
