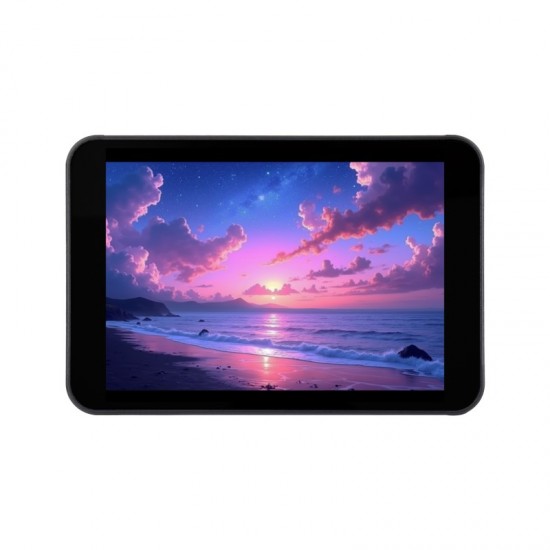

Name: ESP32-S3 3.5inch Capacitive Touch Display Development Board Type B (With Case and OV5640 Camera), 320×480 Pixels, IPS Panel, 262K Color, QSPI Interface, Onboard Camera Interface, Supports Wi-Fi and Bluetooth 5, ESP32 With Display
Brand: WaveShare Electronics
SKU: 31334
Price: 4919.00 INR
Availability: OutOfStock

ESP32-S3 3.5inch Capacitive Touch Display Development Board Type B (With Case and OV5640 Camera), 320×480 Pixels, IPS Panel, 262K Color, QSPI Interface, Onboard Camera Interface, Supports Wi-Fi and Bluetooth 5, ESP32 With Display

WaveShare Electronics

ESP32-S3 3.5inch Capacitive Touch Display Development Board Type B (With Case and OV5640 Camera), 320×480 Pixels, IPS Panel, 262K Color, QSPI Interface, Onboard Camera Interface, Supports Wi-Fi and Bluetooth 5, ESP32 With Display

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹4,919.00

₹4,168.64 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 42
B2B GST Credit Available

Price in reward points: 4169

Stock: 0 in Stock
SKU: 31334
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

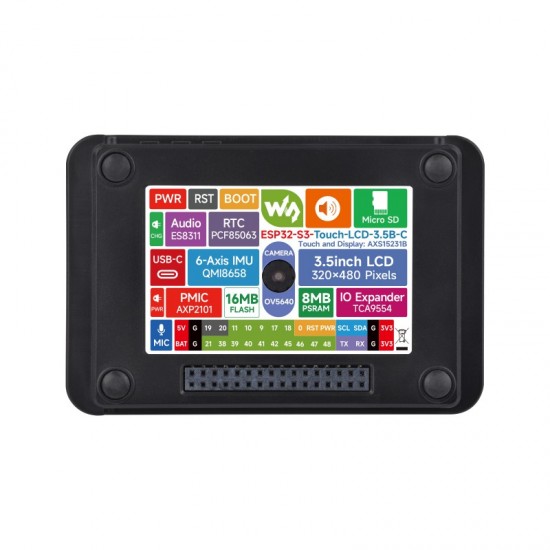

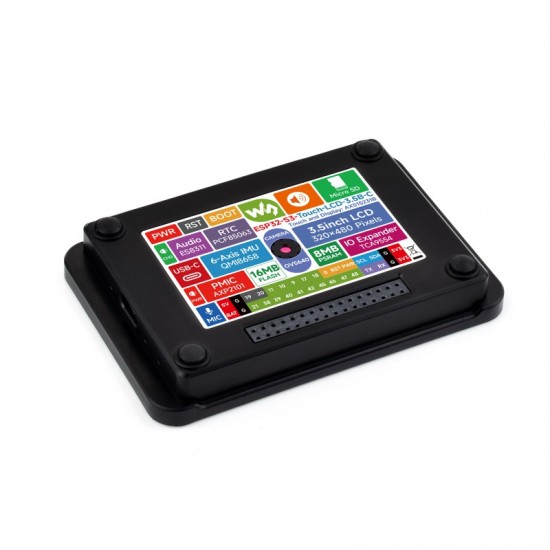

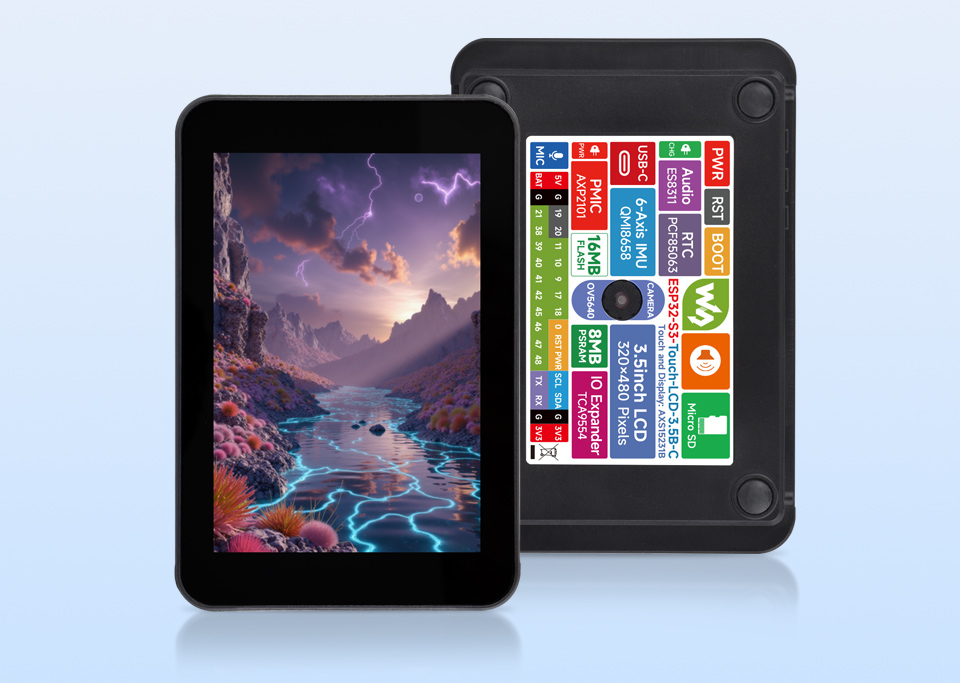

ESP32-S3-Touch-LCD-3.5B is a high-performance, highly integrated MCU board designed by Waveshare. Onboard 3.5inch capacitive touch IPS display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec, and so on, which makes it easy for you to develop and integrate into the products quickly.

Features

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, improving device compatibility, easier to use

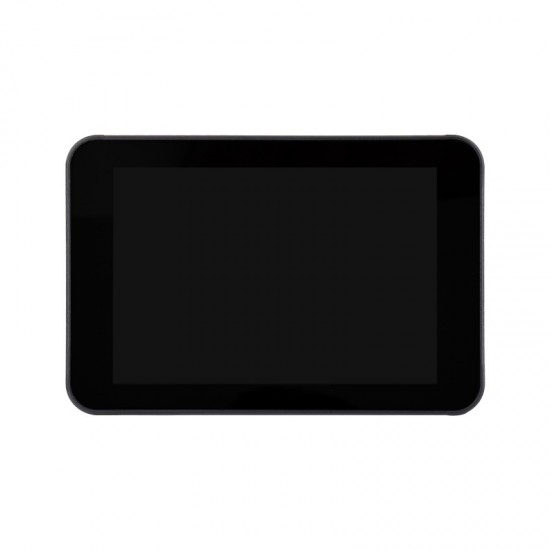

Onboard 3.5inch IPS capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color
Built-in AXS15231B LCD & touch controller, using QSPI and I2C communication respectively
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640
Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc

Specifications

Display Panel	IPS	Display Size	3.5 inch
Resolution	320 × 480 pixels	Display Colors	262K
Brightness	210 cd/㎡	Contrast Ratio	1000:1
Driver IC	AXS15231B	Touch Type	Capacitive
Display Interface	QSPI	Touch Interface	I2C

Resources

User Manual / Datasheet / Example Codes Etc.

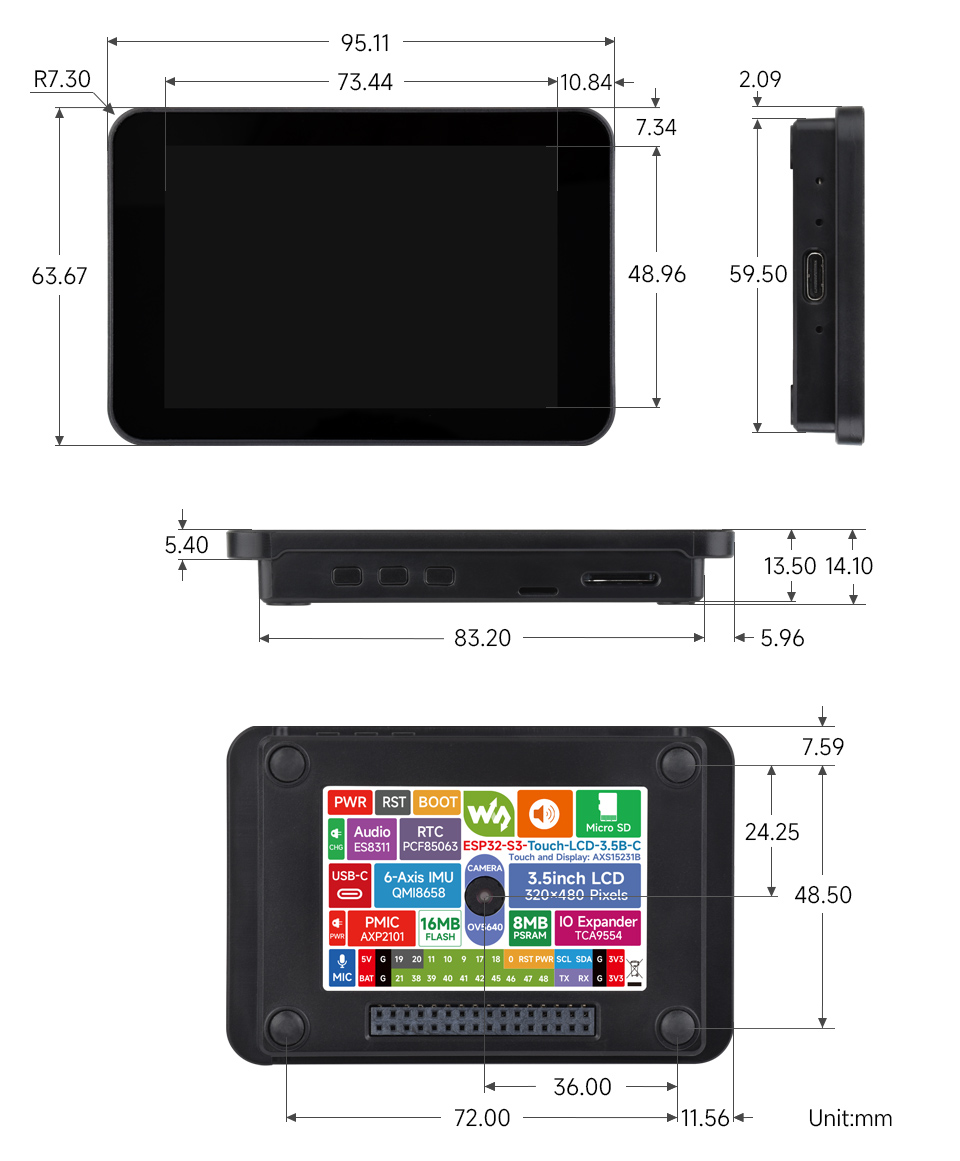

Dimensions
