ESP32-S3 4.3inch Capacitive Touch Display Development Board - 480x272 Pixles - IPS TFT Panel - 65K RGB Color - Wi-Fi and Bluetooth 5 - JC4827W543

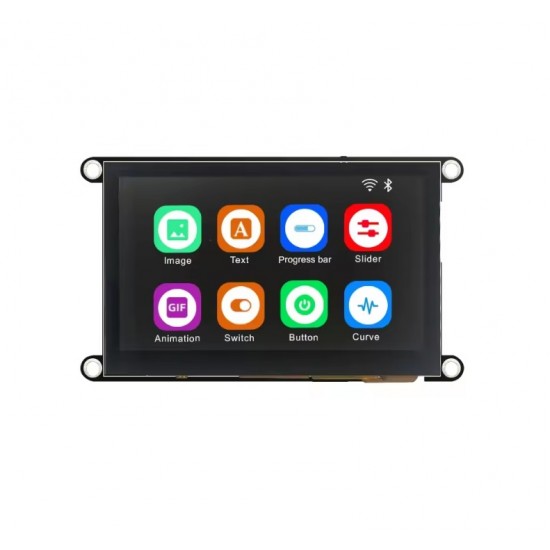

The ESP32-S3 4.3-inch Capacitive Touch Display Development Board is a powerful and user-friendly solution designed for advanced HMI, IoT, and embedded display applications. It features a 4.3-inch IPS TFT panel with a 480 × 272 pixel resolution, delivering crisp visuals, wide viewing angles, and 65K RGB color support for rich and interactive user interfaces.

Powered by the ESP32-S3 microcontroller, this development board offers built-in 2.4GHz Wi-Fi and Bluetooth 5, enabling seamless wireless connectivity for smart control panels, industrial HMIs, and connected IoT devices. The capacitive touch panel ensures smooth and accurate touch response, making it ideal for modern touch-based interfaces.

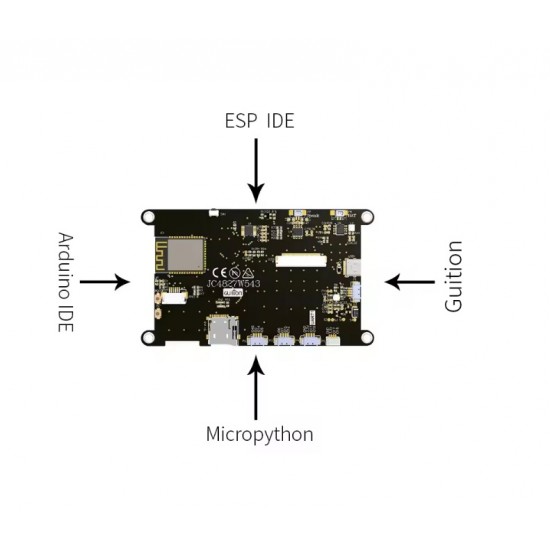

Designed for easy development and rapid deployment, the board supports popular frameworks such as Arduino, ESP-IDF, and MicroPython. Its all-in-one design simplifies hardware integration while providing a reliable platform for both prototyping and production-ready applications.

Features

4.3”LCD-TFT HMI Capacitive touch or Resistance touch display module
Supports WiFi and Bluetooth
Support lithium battery power supply
Capacitive touch
480 x 272 screen resolution
RGB 65K true-to-life colours
IPS glass panel
Onboard 240MHz LX6 MCU
520K Byte RAM
8 MB PSRAM
4 MB Flash memory
JST1.25 4 Pins (+5V, TX, RX, GND) TTL serial interface

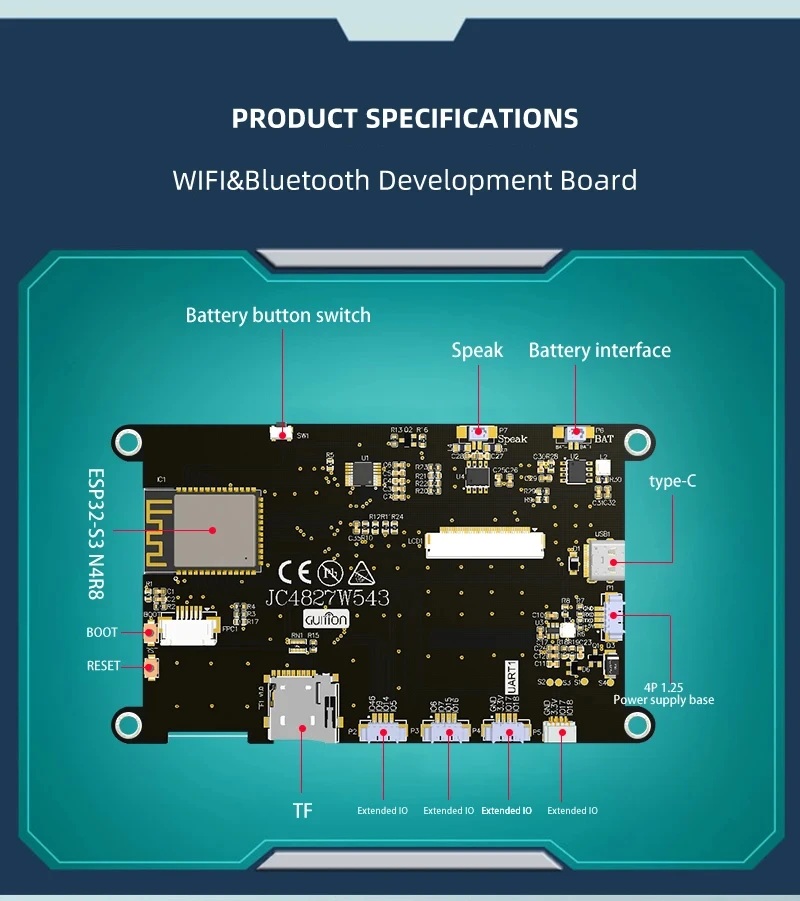

Specifications

Model: JC4827W543
MCU: ESP32-S3 (Dual-core Xtensa® LX7)
Wireless Connectivity:

Wi-Fi 802.11 b/g/n (2.4GHz)
Bluetooth 5 (BLE)

Display Size: 4.3 inch
Display Type: IPS TFT LCD
Resolution: 480 × 272 pixels
Color Depth: 65K RGB colors
Touch Type: Capacitive touch panel
Interface: UART
Operating Voltage: 3.3V logic
Power Supply: 5V via USB / external input
Operating Temperature: –20°C to +70°C (typical)
Applications: HMI systems, smart home panels, industrial control interfaces, IoT dashboards

Package Includes

1x ESP32-S3 4.3inch capacitive touch IPS module
1x Antenna
1x USB A to cable
1x JST1.25 4 Pins Cable
