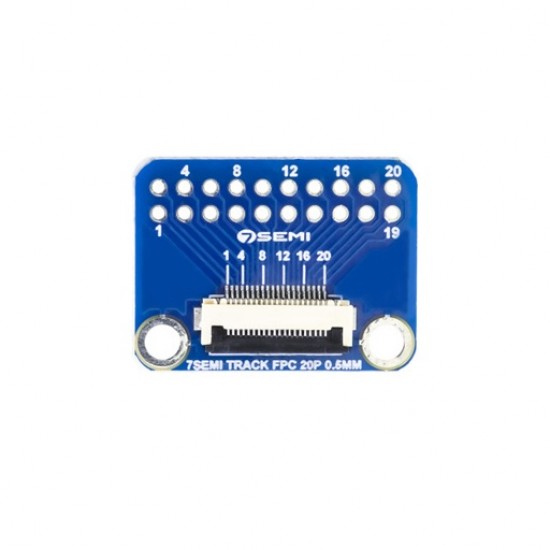

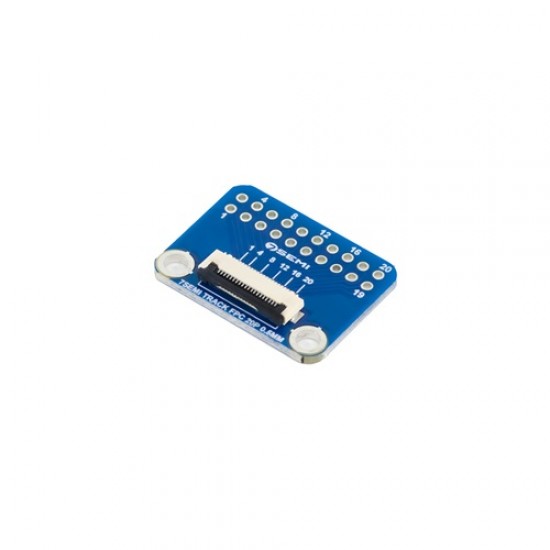

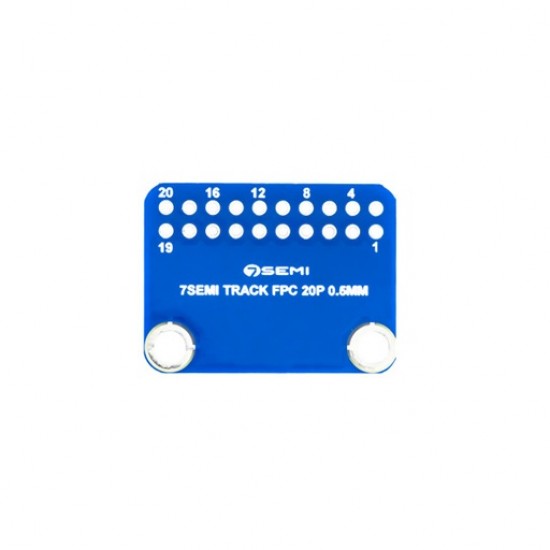

20 Pin 0.5mm FFC FPC Connector Breakout Board

The 7Semi 20 Pin FFC FPC Connector Breakout Board, a clever solution crafted to simplify your prototyping journey. With a 0.5mm pitch FPC FFC connector housing 20 pins and a height of 2mm, this breakout board ensures dependable connections. The front flip bottom contact SMT FPC connector is skillfully soldered onto the PCB, boosting stability and durability for your projects.

One notable attribute of this breakout board is its smooth compatibility with breadboards. The output pins are strategically connected to dual rows of holes spaced at 0.1", making it a breeze to integrate and test on a breadboard. This compatibility removes the need to adapt to different pin configurations, saving you precious time and effort.

Effortlessly maneuver through your projects with the breakout board's easily recognizable pin numbers. This feature facilitates swift and accurate connections, minimizing the chance of errors and enhancing overall productivity.

Datasheet

Features

0.5mm Pitch FPC FFC Connector 30 Pins Height 2mm Front Flip Bottom Contact
Speeds up prototyping process
Out pins with traces going to double rows of 0.1" spaced holes
Compatible pin spacing for breadboard use
Easily identifiable pin numbers
Size: 40x25 mm

Specifications

Category of product: Connector board
Operational Temprature in °C: -40C to 70C
Operating Voltage: 5V DC

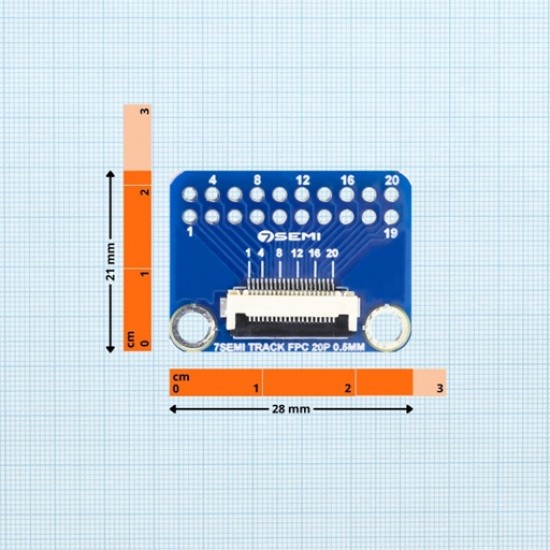

Dimension in mm: L=28mm W=21mm H=3.62mm

Package Includes

1x 20 Pin 0.5mm FFC FPC Connector Breakout Board
