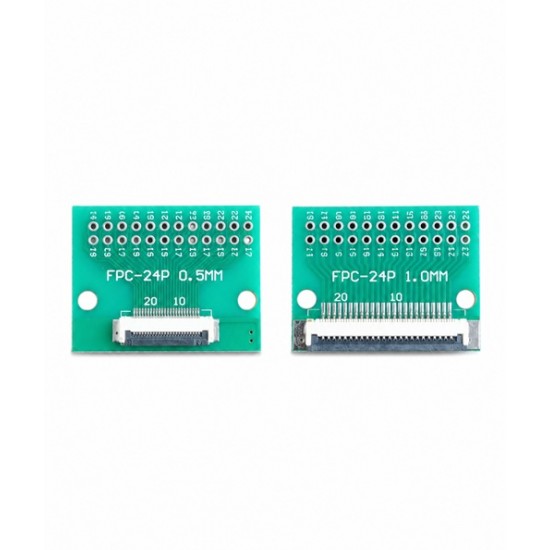

24 Pin 0.5 & 1.0mm FPC/FFC Adapter Breakout Board - Both Side Soldered Connector
The 24 Pin 0.5 & 1.0mm FPC/FFC Adapter Breakout Board is a versatile adapter designed for connecting and testing 24-pin FPC (Flexible Printed Circuit) and FFC (Flexible Flat Cable) connectors with different pitch configurations. It supports both 0.5mm and 1.0mm pitch connections, making it suitable for a wide range of displays, cameras, sensors, embedded systems, and other electronic applications.
Featuring connectors soldered on both sides, the board provides convenient access to individual signal pins for prototyping, debugging, testing, and circuit development. Its compact breakout design makes it easy to integrate FPC/FFC interfaces with development boards, microcontrollers, and custom circuits.
Features
- 24-pin FPC/FFC adapter breakout board
- Supports 0.5mm and 1.0mm pitch FPC/FFC connections
- Both-side soldered connectors for flexible connection options
- Breaks out FPC/FFC signals for easy testing and prototyping
- Compact and practical design
- Suitable for displays, cameras, sensors, and embedded electronics
- Ideal for DIY projects, repairs, development, and testing
Specifications
- Product Type: FPC/FFC Adapter Breakout Board
- Pin Count: 24 Pin
- Supported Pitch: 0.5mm & 1.0mm
- Connector Type: FPC/FFC Connector
- Connector Installation: Both Side Soldered
- Interface: FPC/FFC
- Application: Prototyping, Testing, Debugging & Development
- Suitable For: Displays, Cameras, Sensors, Embedded Systems & Custom Circuits
- Board Type: Breakout / Adapter Board
- Design: Compact PCB
Package Includes
- 1x 24 Pin 0.5 & 1.0mm FPC/FFC Adapter Breakout Board - Both Side Soldered Connector
