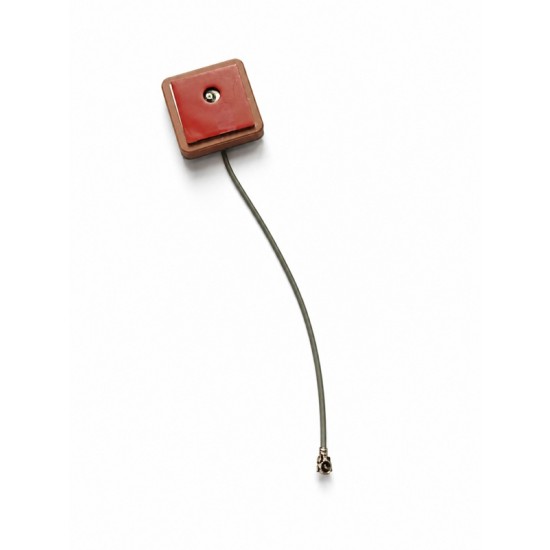

25x25x8mm High Gain Active Ceramic GPS Patch Antenna - 10 CM Cable Length
The 25x25x8mm 28dBi High Gain Active Ceramic GPS Antenna is a compact and efficient solution for enhancing GPS signal reception in a variety of applications. Featuring a high gain of 28dBi, this active ceramic antenna ensures strong and stable satellite connectivity, even in challenging environments.
Designed with precision, the antenna’s 25x25x8mm ceramic patch delivers superior signal performance while maintaining a small and lightweight form factor. The 5CM cable length provides flexibility for easy integration into devices where space is limited. It is ideal for GPS modules, navigation systems, vehicle tracking devices, and other applications requiring reliable GPS signal reception.
With its active design, the antenna ensures excellent signal amplification and reduced noise for consistent performance, making it a perfect choice for both commercial and industrial GPS systems.
This product does not have any mounting holes. The size of the patch is precisely 25x25x8mm. The actual product may vary slightly from the display image.
Features
- High Gain: 28dBi for superior signal reception and performance.
- Compact Size: 25x25x8mm, ideal for space-constrained applications.
- Active Ceramic Patch: Provides high efficiency and reliable GPS signal.
- Cable Length: 5CM for seamless integration into compact devices.
- Low Noise Amplifier (LNA): Enhances signal quality and reduces interference.
- Durable Build: Designed for long-lasting and stable performance in various conditions.
Specifications
- Antenna Type: Active Ceramic GPS Antenna
- Interface Type: UFL
- Frequency Range: 1575.42 MHz (L1 Band GPS)
- Gain: 28dBi
- Cable Length: 10 CM
- Operating Temperature: -40°C to +85°C
Applications
- GPS Modules and Receivers
- Vehicle Tracking Systems
- Navigation Devices
- UAVs and Drones
- Handheld GPS Equipment
- IoT and Embedded Systems
Package Includes
- 1x 25x25x8mm High Gain Active Ceramic GPS Antenna
