5inch e-Paper Display Hat , 960 × 552, Black / White, SPI Interface, Based On Raspberry Pi 40PIN GPIO Header

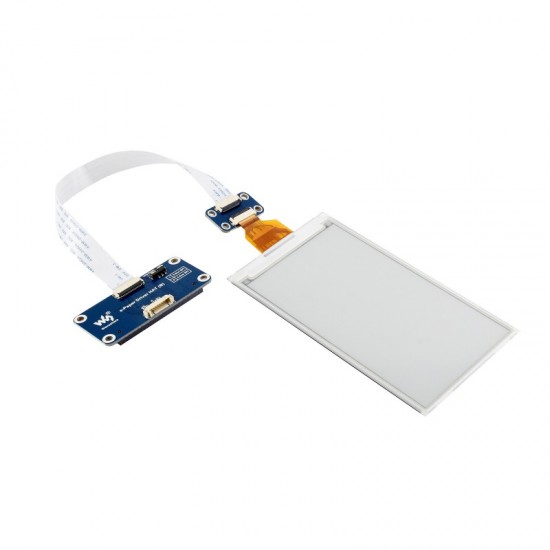

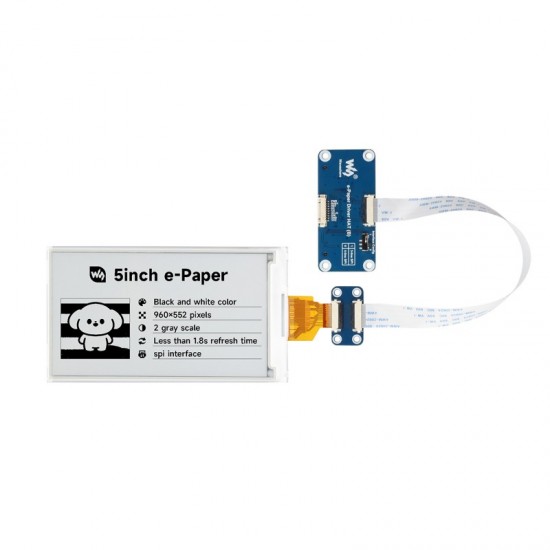

The 5-inch e-Paper Display HAT is a high-resolution, low-power display module designed for seamless integration with Raspberry Pi boards via the 40-pin GPIO header. Featuring a crisp 960 × 552 resolution, this black-and-white e-ink display delivers paper-like readability with wide viewing angles and no backlight, making it ideal for energy-efficient and eye-friendly applications.

Using an SPI interface for communication, the display ensures stable and fast data transfer while maintaining minimal power consumption—only requiring energy during screen refreshes. Its e-paper technology allows the last displayed content to remain visible even when power is removed, making it perfect for applications like smart labels, dashboards, IoT devices, and e-readers.

The HAT format is specifically designed to fit directly onto Raspberry Pi boards, ensuring easy installation without additional wiring. With strong compatibility and support for various development platforms, this display module is an excellent choice for developers looking to build innovative, low-power display solutions.

User Manual / Datasheet / Example Codes Etc.

Features

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Jetson Series / Arduino / STM32 / ESP32)

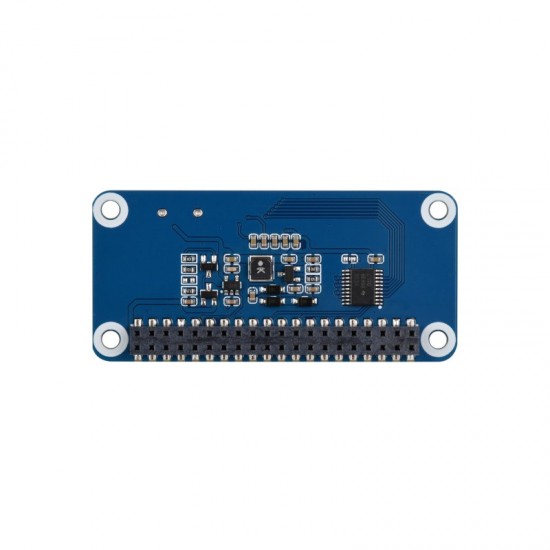

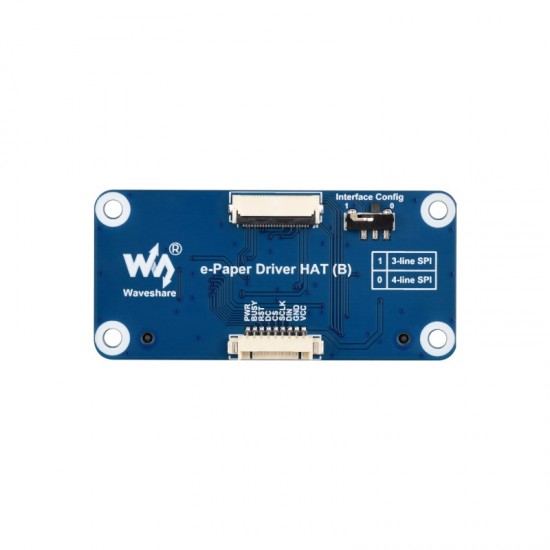

e-Paper Driver HAT:

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson series boards
Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32 / ESP32, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage: with driver HAT: 3.3V/5V
interface: 3-wire SPI, 4-wire SPI

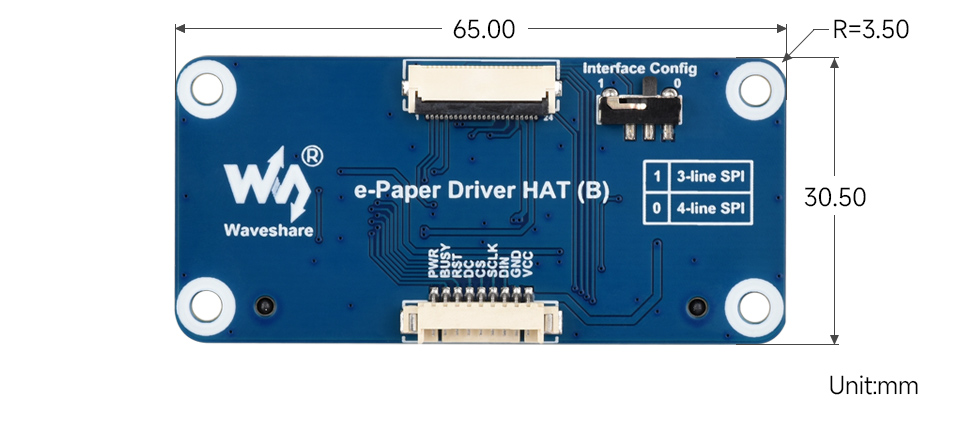

outline dimensions: e-Paper Driver HAT: 30.50 × 65.00 (mm)

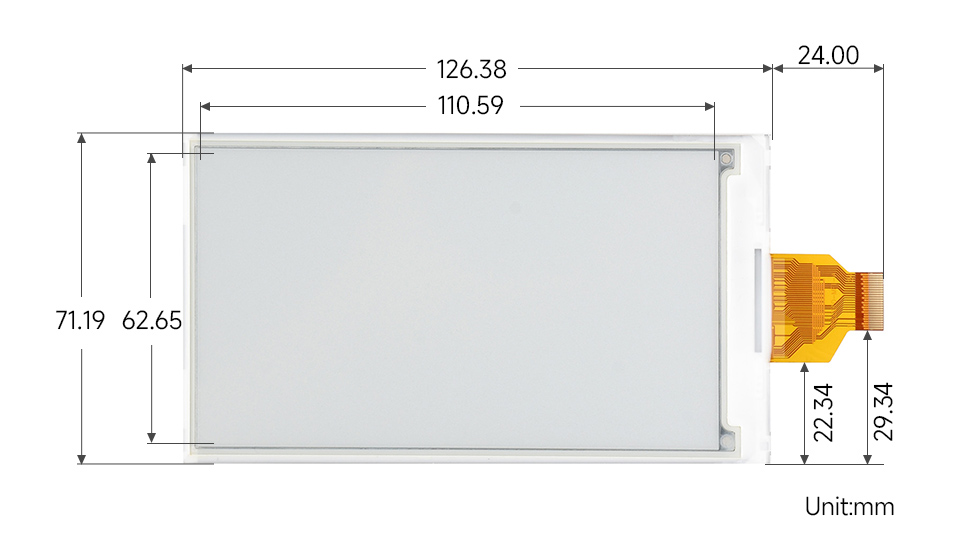

display size: 110.59 × 62.65 (mm)
DOT PITCH: 0.1833 × 0.1833 (mm)
RESOLUTION: 960 × 552 pixels
display color: Black/White
grey scale: 2
partial refresh time: 0.7s
full refresh time: 1.8s
refresh power: <50mW
standby current: <0.01uA (almost none)
viewing angle: >170°

Package Includes

5inch e-Paper HAT x1

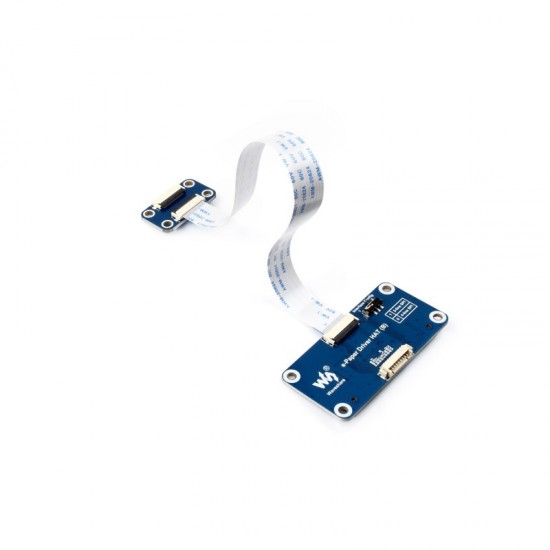

MX1.25 9PIN cable ~20cm x1
Screws pack x1

Dimensions
