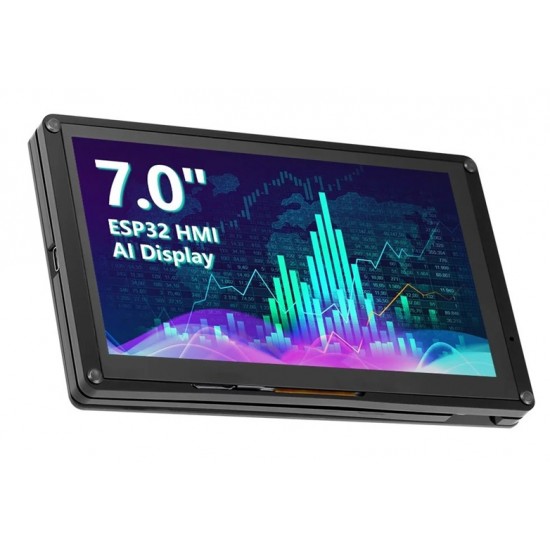

The CrowPanel Advance ESP32 7-inch display is a powerful HMI touchscreen with an 800×480 IPS screen and an ESP32-S3 core processor. This processor features a dual-core Xtensa 32-bit LX7 CPU with up to 240 MHz frequency, 512 KB SRAM, 8 MB PSRAM, and 16 MB Flash.  The integrated 2.4GHz Wi-Fi and BLE functions, combined with the built-in RF antenna, ensure the stability and reliability of the wireless connection.  Also, the diverse interfaces and low power make this 7-inch screen ideal for HMI applications that need strong wireless connectivity. It supports the Arduino IDE, Espressif IDF, and PlatformIO. It is compatible with the LVGL graphics library and supports C++.

This 7-inch screen uses an IPS panel, and the 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle. Capacitive touch technology provides a responsive user experience.

A notable feature of the CrowPanel Advance 7-inch display is its integrated AI function. Users can interact by using the microphone and speaker. This includes voice recognition and speech synthesis. They can have seamless conversations with smart assistants to get information. Another highlight of this screen is that its modular design provides diversified wireless communication options. Users can replace modules as needed. They support multiple protocols: Zigbee, LoRa, nRF2401, Matter, Thread, Wi-Fi HaLow, and Wi-Fi 6. One screen and different modules can meet the wireless connection needs of different scenarios.

This upgrade enhances connectivity flexibility and reliability, offering a wider range of application possibilities; it meets the demands of modern intelligent systems for remote monitoring and control, while also opening up new opportunities for Industry 4.0 applications.

User Manual / Datasheet / Example Codes Etc.

Features

• Equipped with the ESP32-S3-WROOM-1 module as the core controller, it provides more excellent performance;
• Main frequency up to 240MHz, equipped with 512KB SRAM, 8M PSRAM, and 16M Flash;
• 800*480 7.0 inches, with driver IC SC7277;
• IPS panel, 178° wide viewing angle, supports capacitive touch;
• Intelligent AI function, equipped with speaker port and high-performance microphone, users can have seamless conversations with smart assistants through voice command interaction, voice recognition, and speech synthesis;
• Built-in LVGL demonstration interface and Arduino examples, plug and play;

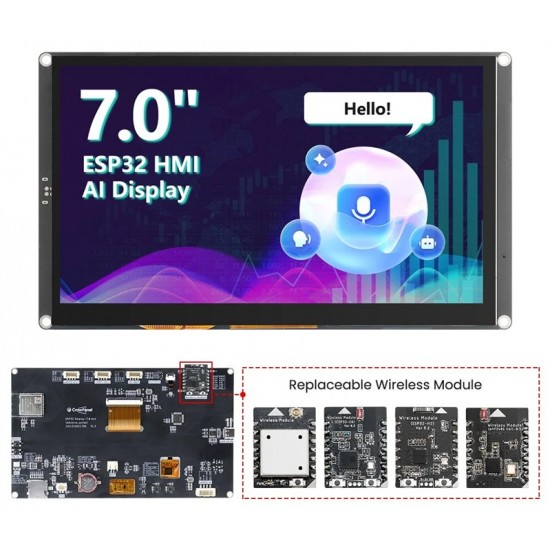

• A replaceable wireless communication module can support multiple communication protocols by replacing different modules;
• Real-time clock function, ensuring the continuity and accuracy of system time in the event of a power failure;
• The peripheral port adopts a vertical and built-in terminal design, which is more in line with the compact and integrated design requirements of embedded devices.

Application scenarios

• Industrial automation
• Smart city
• Smart home
• Medical equipment
• Agricultural technology
• Environmental monitoring
• Energy management
• Logistics and warehousing
• Retail and catering
• Education and research

Specifications

• CPU/SoC: high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz
• System Memory: 512KB SRAM、8M PSRAM
• Memory: 16M Flash，384KB ROM
• Development Language: C/C++
• Development Environment: ESP-IDF、Arduino IDE、PlatformIO、LVGL
• Screen
• Size: 7.0 inch
• Diver IC: SC7277
• Resolution: 800*480
• Display Panel: IPS Panel
• Touch Panel: Capacitive Single Touch
• Viewing Angle: 178°
• Brightness: 400 cd/m²(Typ.)
• Color Depth: 16-bit
• Wireless Communication - Onboard Antenna
• WiFi: Support 2.4GHz, 802.11a/b/g/n
• Bluetooth: Support Bluetooth 5.0 and BLE

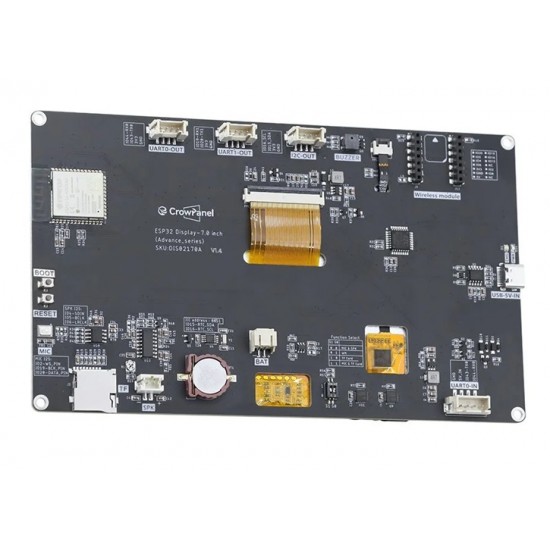

• Interface/Function
• Interface: USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone, etc. (MIC and SD Card Simultaneous use is not possible.)
• Function: RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc.
• Button/LED Indicator
• Reset Button: Yes, press to reset the device
• Boot Button: Yes, press and hold the power button to burn the program
• PWR: Power indicator
• CHG: Lithium battery charging status, completion indication
• Other
• Installation method: Back hanging, fixed hole (M3 thread)
• Operating temperature: -20~70 °C
• Storage temperature: -30~80 °C
• Power Input: 5V/2A, USB or UART terminal
• Active Area: 156mm*87mm
• Dimensions: 181.26*108.36*16mm

Package Includes

• 1x CrowPanel Advance ESP32 Display-7.0 inch
• 1x Wireless Module-ESP32-H2 Optional
• 1x Wireless Module-ESP32-C6 Optional
• 1x Wireless Module-nRF2401 Optional
• 1x USB-A to Type-C Cable
• 1x Crowtail/Grove 4pin DuPont cable

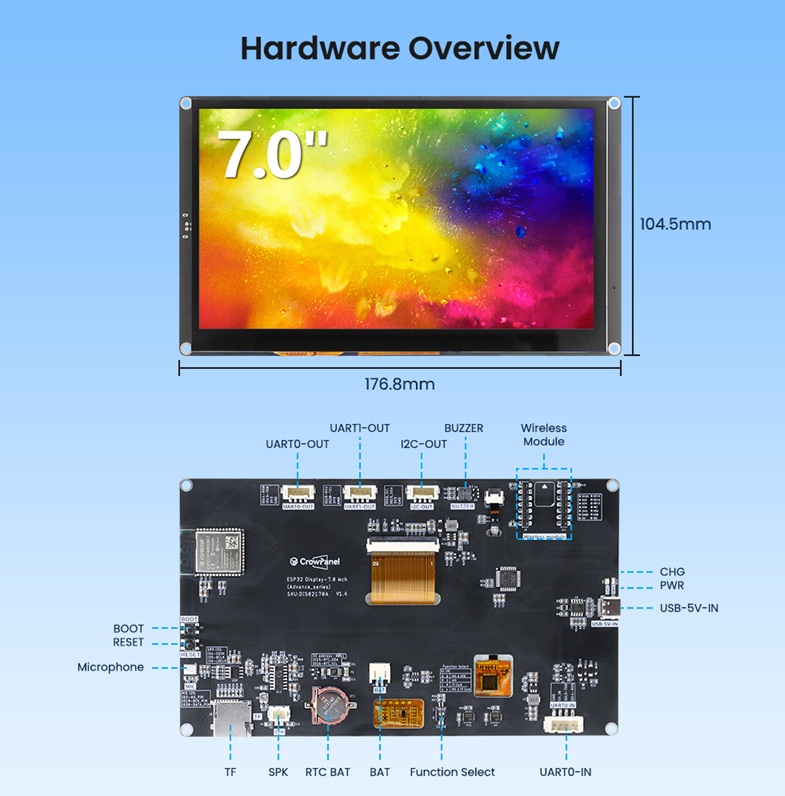

Hardware Overview
