Name: Waveshare 7inch Capacitive Touch IPS Display for Raspberry Pi, with Protection Case, 1024×600, DSI Interface [With White case]
Brand: WaveShare Electronics
SKU: 32080
Price: 7649.00 INR
Availability: OutOfStock

Waveshare 7inch Capacitive Touch IPS Display for Raspberry Pi, with Protection Case, 1024×600, DSI Interface [With White case]

New

WaveShare Electronics

Waveshare 7inch Capacitive Touch IPS Display for Raspberry Pi, with Protection Case, 1024×600, DSI Interface [With White case]

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹7,649.00

₹6,482.20 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 65
B2B GST Credit Available

Price in reward points: 6482

Stock: 0 in Stock
SKU: 32080
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare 7inch Capacitive Touch IPS Display for Raspberry Pi, with Protection Case, 1024×600, DSI Interface [With White case]

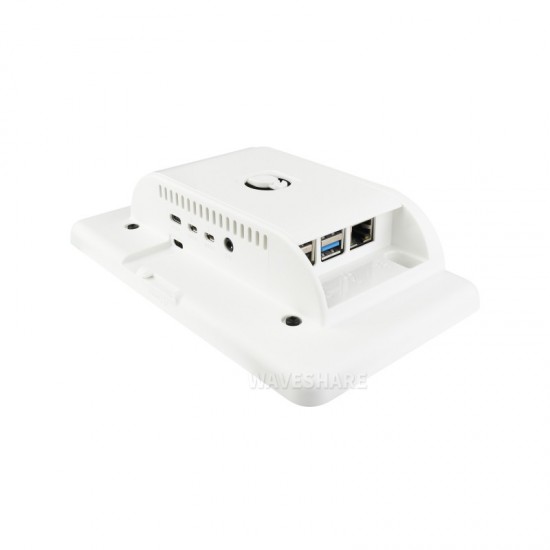

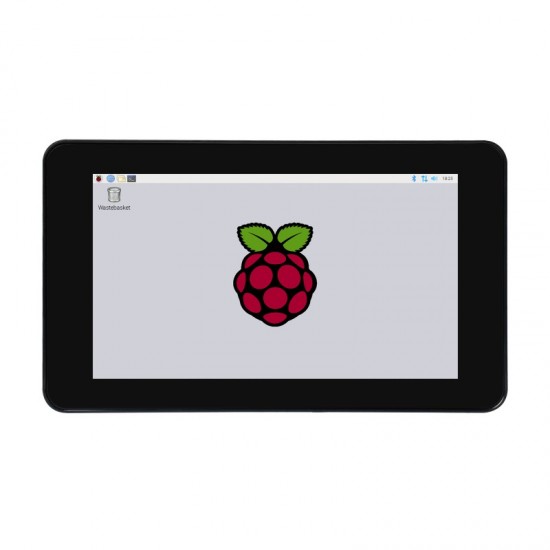

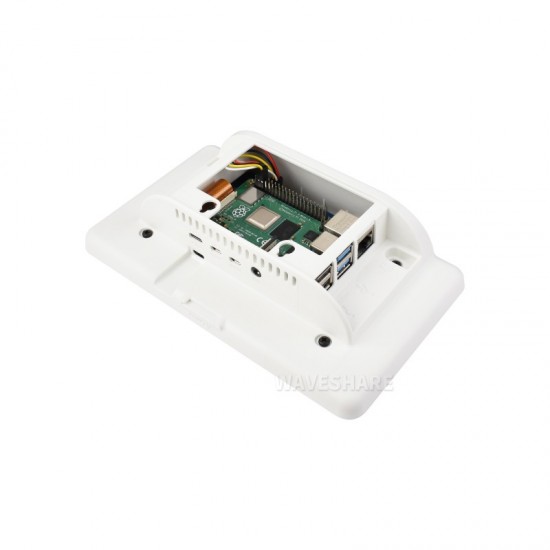

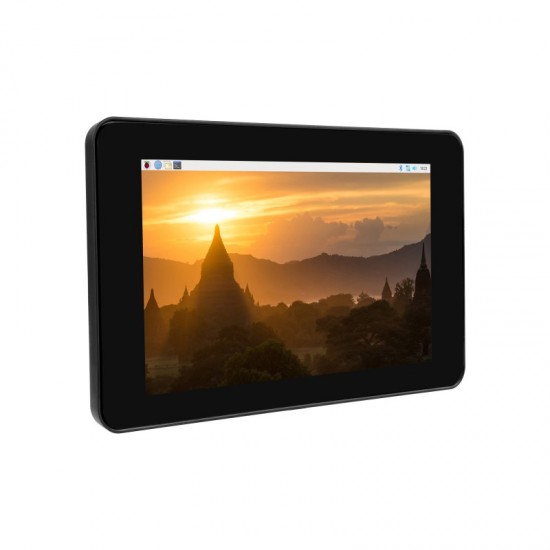

The Waveshare 7-inch Capacitive Touch IPS Display with white protective case is a premium touchscreen display designed specifically for Raspberry Pi projects. Featuring a 1024 × 600 IPS panel, it delivers vibrant colors, wide viewing angles, and responsive 5-point capacitive touch for an intuitive user experience. The DSI interface provides a fast, reliable display connection while leaving the Raspberry Pi's GPIO header free for expansion boards and peripherals. The included durable polycarbonate white enclosure offers excellent protection and a clean, modern appearance, making it ideal for embedded systems, home automation dashboards, portable projects, industrial control panels, smart kiosks, and multimedia applications. The display supports software-controlled brightness adjustment and works with compatible Raspberry Pi models running Raspberry Pi OS.

User Manual / Datasheet / Example Codes Etc.

Features

7inch DSI touch screen with five-point capacitive touch control
IPS display panel with a hardware resolution of 1024×600
Toughened glass touch panel, hardness up to 6H
Support Pi5/CM5/4B/CM4/3B+/3A+/3B/CM3+/CM3
Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate
Supports Bookworm/Bullseye/Buster systems when working with Raspberry Pi
Supports software control of backlight brightness

Specifications

Display Size: 7 inch
Display Type: IPS LCD
Resolution: 1024 × 600 pixels
Touch Type: Capacitive Touch
Touch Points: 5-point multi-touch
Display Interface: DSI (Display Serial Interface)
Viewing Angle: Up to 170°
Brightness: Software adjustable
Protective Case: White Polycarbonate Case Included
Compatible Boards: Raspberry Pi with DSI display support
Operating System: Raspberry Pi OS (Touch supported)
Application: Raspberry Pi projects, HMI, Smart Home, Industrial Control, IoT Dashboard, Multimedia, DIY Projects

Package Includes

1x White case kit
