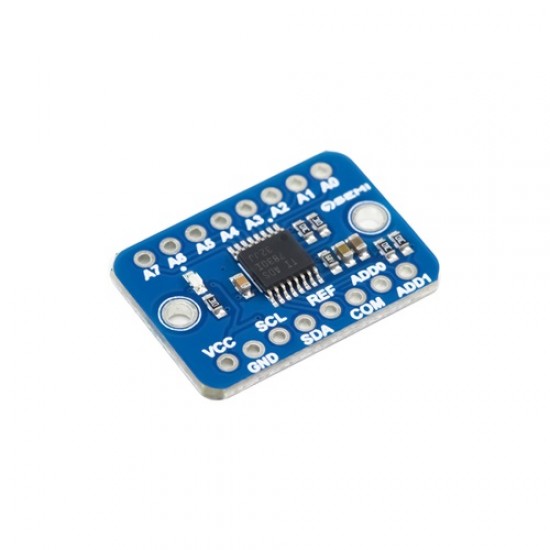

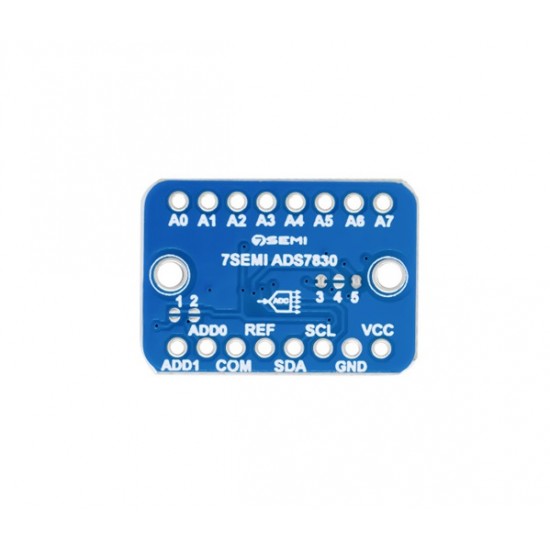

7Semi ADS7830 8-Bit 8-Channel Analog to Digital A/D Converter with I2C Interface
The 7Semi ADS7830 is an 8-bit, 8-channel analog-to-digital converter (ADC) featuring an I²C interface for seamless integration with microcontrollers. It supports both single-ended and differential inputs, operates over a supply voltage range of 2.7V to 5.5V, and offers a sampling rate of up to 70 kSPS. The device includes an internal 2.5V reference and a sample-and-hold amplifier, making it suitable for applications requiring multiple analog input channels.
Features
- High-Performance Data Acquisition: 8-bit resolution with a 70kHz sampling rate for precise analog-to-digital conversion.
- Flexible Input Options: Supports 4 differential or 8 single-ended inputs, adapting to various application needs.
- Wide Operating Range: Operates with a single supply voltage of 2.7V to 5V, suitable for diverse systems.
- Integrated Reference and Buffer: Features a built-in 2.5V reference buffer for consistent, accurate conversions.
- I2C Interface Compatibility: Supports Standard, Fast, and High-Speed I2C modes, ensuring versatile integration with various systems.
- Compact and Energy-Efficient: Ideal for remote data acquisition and applications requiring low power consumption.
Specifications
- ADC Resolution: 8-bit SAR Analog-to-Digital Converter
- Input Channels: 8 single-ended or 4 differential analog inputs
- Interface: I²C (Standard, Fast, and High-Speed modes)
- Supply Voltage: 2.7V to 5.25V
- Sampling Rate: Up to 70 kSPS
- Reference: Built-in 2.5V reference/buffer with support for external reference
- Input Voltage Range: 0V to VCC (depending on reference configuration)
- Architecture: Successive Approximation Register (SAR)
- Multiplexer: Integrated 8-channel analog multiplexer
- Power Consumption: Ultra-low power operation (typically 180 µW in Standard I²C mode)
- Operating Temperature: -40°C to +85°C

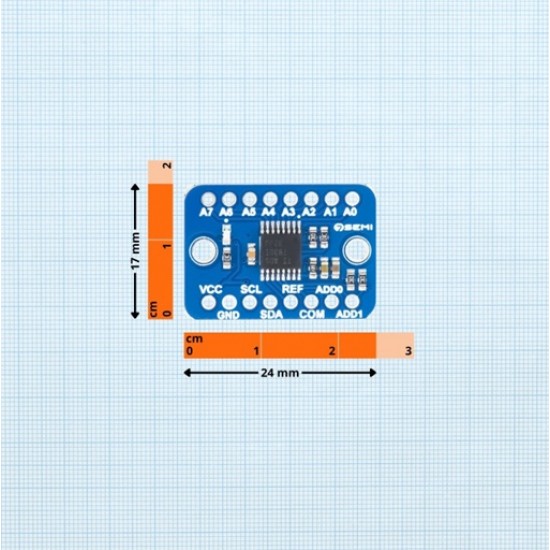

- Package: Breakout board with 2.54mm header compatibility
- Communication: 2-wire I²C interface
- Applications: Sensor interfacing, battery monitoring, data acquisition, embedded systems, industrial automation, robotics, IoT, and microcontroller projects.
Package Includes
- 1x 7Semi ADS7830 8-Bit 8-Channel Analog to Digital A/D Converter with I2C Interface
