Name: 7Semi BMP585 Pressure Sensor Breakout (MPN: ES-12236)
Brand: 7Semi
SKU: 08174
Price: 822.00 INR
Availability: OutOfStock

7Semi BMP585 Pressure Sensor Breakout (MPN: ES-12236)

7Semi

7Semi BMP585 Pressure Sensor Breakout (MPN: ES-12236)

Based on 0 reviews. - Write a review

₹822.00

₹696.61 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 7
B2B GST Credit Available

Price in reward points: 696

Stock: 0 in Stock
SKU: 08174
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

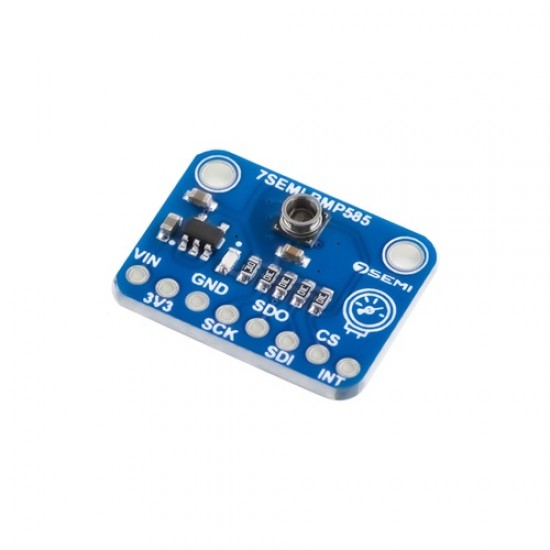

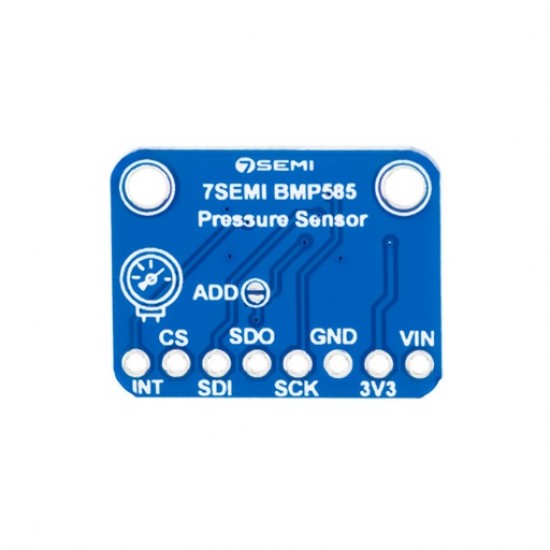

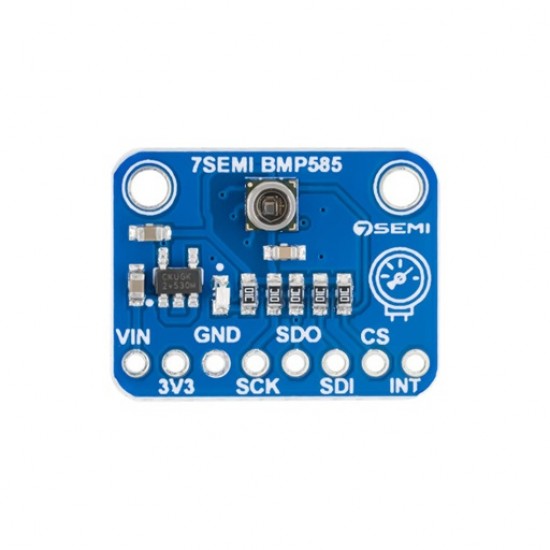

7Semi BMP585 Pressure Sensor Breakout

The BMP585 Pressure Sensor Breakout is a compact, high-precision sensor that measures atmospheric pressure, designed for applications like altimetry, weather monitoring, and indoor navigation. It offers high accuracy, low power consumption, and a wide pressure range, making it suitable for mobile and battery-operated devices. With support for I2C and SPI interfaces, this breakout board ensures easy integration into various electronic projects and IoT applications.

Datasheet

Features

High Resolution & Accuracy: Exceptional pressure sensing resolution at 1/64 Pa with an accuracy of ±0.5 hPa, delivering highly precise data.
Wide Pressure & Temperature Range: Measures pressure from 30 to 125 kPa and temperature from -40°C to 85°C, ensuring versatility across diverse applications.
Flexible Data Communication: Compatible with both I2C (up to 1MHz) and SPI (up to 12MHz) protocols for easy integration into various systems.
Programmable Functionality: Includes configurable oversampling, FIFO buffer (stores up to 32 samples), low-pass filtering, and 6 bytes of user-programmable non-volatile memory.
Energy-Efficient Operation: Offers five operational modes, with low power consumption at 1.5µA in Deep Standby and 260µA peak during measurements.
Compact Design: Small breakout board with 0.1” spaced pins for quick soldering and connectivity.

Specifications

Supply Voltage Range:3.3V/5V
Pressure Sensing Range:30 - 125 kPa
Pressure Data Resolution:1/64 Pa
Temperature Range:-40°C to 85°C
Output Data Rate:Up to 622Hz (Continuous Mode)

Package Includes

1x 7Semi BMP585 Pressure Sensor Breakout
