BMP581 Barometric Pressure & Altitude Sensor Breakout

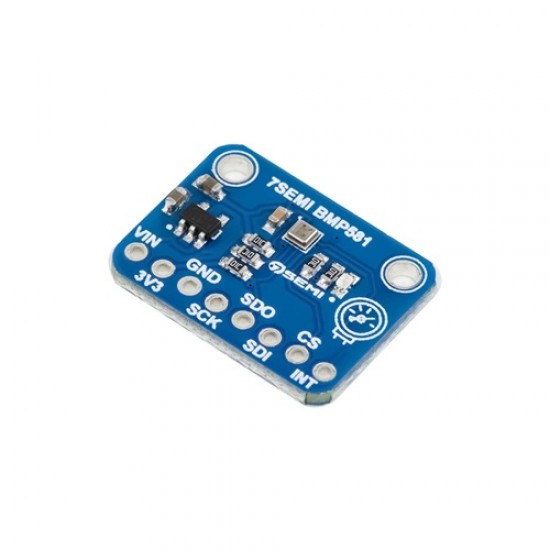

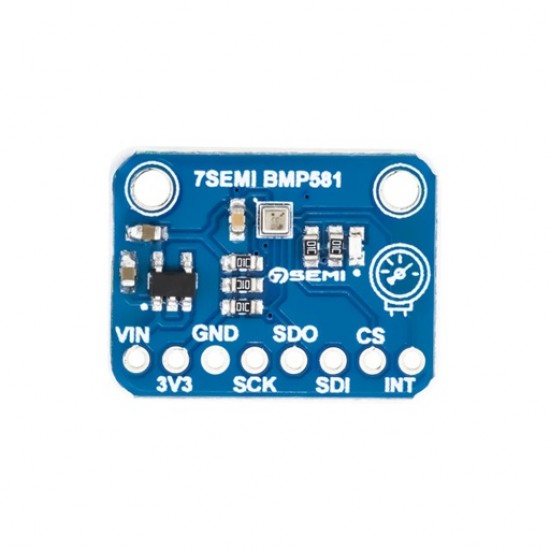

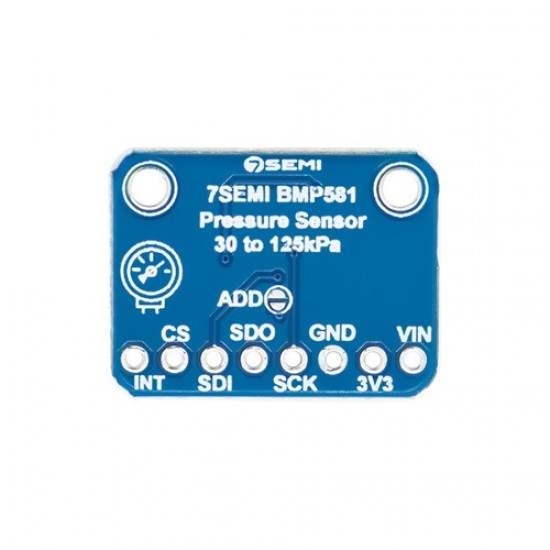

The 7Semi BMP581 Barometric Pressure & Altitude Sensor Breakout offers high-precision pressure measurements with an absolute accuracy of ±30 Pa and a relative accuracy of ±6 Pa, equivalent to ±0.5 meters in altitude. It operates over a pressure range of 300 to 1250 hPa and supports I²C, I³C, and SPI interfaces, facilitating integration into various applications.

Datasheet

Features

Exceptional Accuracy & Resolution:

Pressure accuracy of ±0.5hPa across the sensing range.
Resolution down to 1/64Pa, offering precise barometric and altitude data.

Flexible Connectivity Options:

Qwiic Connect System for solder-free I2C connections.
Additional 0.1”-spaced pins for SPI communication or soldered I2C connections.

Low Power Consumption:

Deep Standby mode consumes just 1.5µA, ideal for power-sensitive applications.
Normal operating mode draws only 260µA during measurements.

Wide Sensing Range & High Data Rates:

Pressure sensing range of 30 to 125kPa.
Output data rates up to 622Hz for fast, real-time data processing.

Programmable Features for Customization:

Configurable oversampling, FIFO buffer, and low-pass filtering for tailored performance.
Includes 6-bytes of non-volatile memory for user-specific data.

Specifications

Sensor IC: Bosch BMP581
Measured Parameters: Barometric Pressure, Temperature, Altitude Calculation
Pressure Range: 300 hPa to 1250 hPa
Absolute Accuracy: ±30 Pa
Relative Accuracy: ±6 Pa (≈ ±0.5 m altitude resolution)
Pressure Noise: 0.08 Pa RMS (ultra-low noise)
Temperature Range: -40°C to +85°C
Supply Voltage (VDD): 1.65V to 3.6V
I/O Voltage (VDDIO): 1.08V to 3.6V
Interface: I2C, I3C, SPI
Maximum Sampling Rate: Up to 480 Hz
Current Consumption: 1.3 µA typical @ 1 Hz
Package Size: 2.0 × 2.0 × 0.75 mm

Package Includes

1x BMP581 Barometric Pressure & Altitude Sensor Breakout
