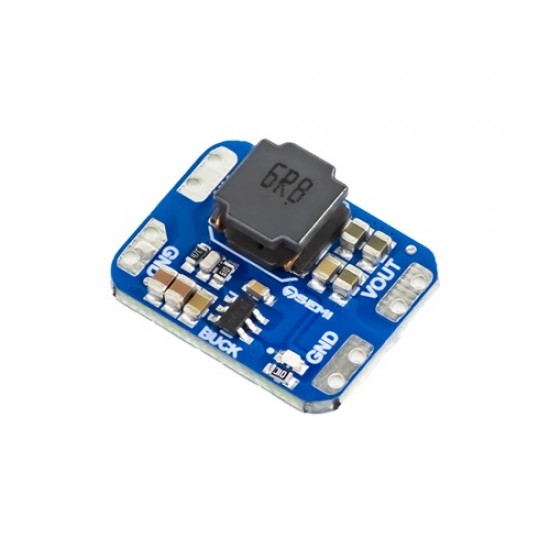

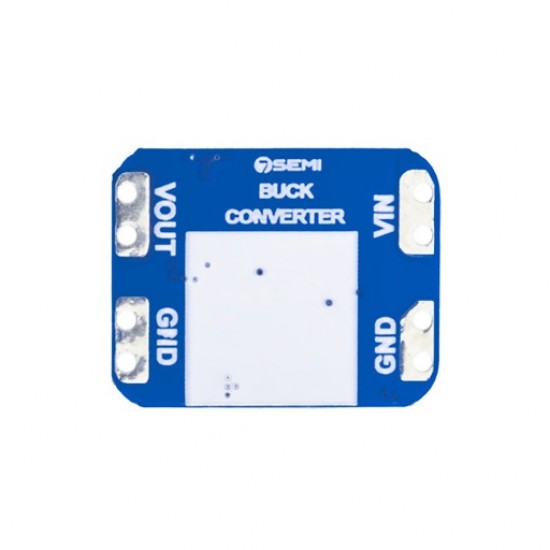

7Semi DC-DC Buck Converter 14V-30V Input to 12V 3A Output - AP63300
The 7Semi AP63300 DC-DC Buck Converter is a compact and efficient step-down power module designed to convert 14V–30V DC input into a stable 12V output with up to 3A current. It is based on the AP63300 synchronous buck converter, which uses integrated high-side and low-side MOSFETs to achieve higher efficiency and better thermal performance compared to traditional non-synchronous designs.
The module is designed to provide clean and stable power while reducing electrical noise through features such as a proprietary gate driver scheme and Frequency Spread Spectrum technology. Its simple design reduces the need for many external components, making it easy to use in different systems. With low power consumption during light loads and reliable voltage regulation, this converter is suitable for industrial equipment, automotive systems, power distribution circuits, and other applications that require a stable 12V power supply from higher input voltages.
Features
- Wide Input Voltage Compatibility: Operates within a 14V to 30V range, accommodating diverse power sources.
- Stable 12V Output: Delivers a continuous 3A current, ensuring reliable power delivery.
- High Precision Voltage Regulation: Features 0.8V ±1% reference voltage, providing accurate operation.
- Energy-Efficient Design: Consumes only 22μA in Pulse Frequency Modulation (PFM) mode, enhancing battery life.
- Optimized Power Efficiency: Achieves up to 88% efficiency, even at low loads of 5mA.
- Advanced EMI Reduction: Implements a proprietary gate driver and FSS technology, minimizing electromagnetic interference.
- Fast Switching Frequency: Operates at 500kHz, enabling a compact design and reduced external components.
- Comprehensive Protection Features: Includes undervoltage lockout (UVLO), output overvoltage protection (OVP), cycle-by-cycle peak current limit, and thermal shutdown for enhanced safety.
- Low-Dropout Operation: Ensures stable performance under varying input conditions.
- Compact & Space-Saving Design: Reduces external component requirements for streamlined integration.
Specifications
- Operating Voltage: 3.8V to 32V
- Output Voltage: 12V
- Output Current: 3A

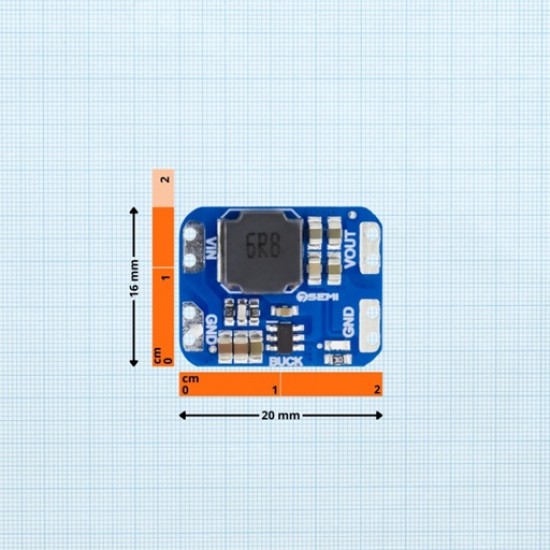

- Dimension in mm: 20 x 16 x 5.73
- Weight: 2 Gram
- Operating Temperature:–40°C to +70°C
Package Includes
- 1x 7Semi DC-DC Buck Converter 14V-30V Input to 12V 3A Output - AP63300
