Name: 7Semi AP64350 DC-DC Buck Converter Board 3.8V to 40V Input, 5V Output (MPN: BO-10199)
Brand: 7Semi
SKU: 08266
Price: 264.00 INR
Availability: OutOfStock

7Semi AP64350 DC-DC Buck Converter Board 3.8V to 40V Input, 5V Output (MPN: BO-10199)

New

7Semi

7Semi AP64350 DC-DC Buck Converter Board 3.8V to 40V Input, 5V Output (MPN: BO-10199)

Based on 0 reviews. - Write a review

₹264.00

₹223.73 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 2
B2B GST Credit Available

Price in reward points: 223

Stock: 0 in Stock
SKU: 08266
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

7Semi AP64350 DC-DC Buck Converter Board 3.8V to 40V Input, 5V Output

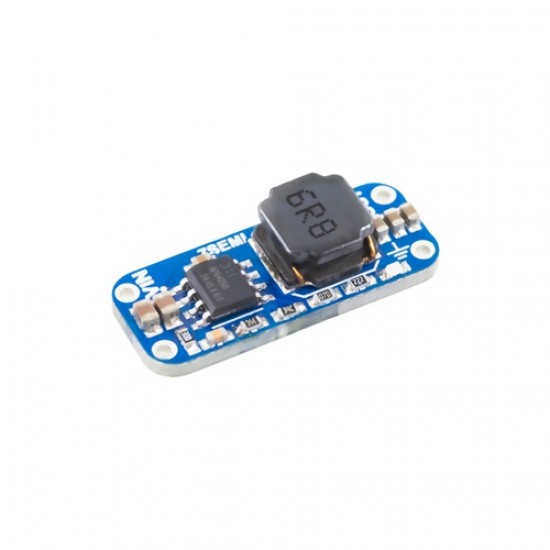

The 7SEMI AP64350 Buck Converter Board delivers a stable 5V regulated output at up to 1.5A from wide-range input voltages between 3.8V and 40V. Built around the AP64350SP-13, a high-efficiency synchronous buck converter by Diodes Inc., this compact board is ideal for powering MCUs, sensors, communication modules, or any 5V logic device.

With low quiescent current, EMI-optimized design, and integrated protections, it’s a reliable and space-efficient option for DIY electronics, automation systems, IoT nodes, or industrial tools.

Datasheet

Features

Input Range: 3.8V to 40V DC
Fixed Output Voltage: 5V
Output Current: Up to 1.5A continuous
Efficiency: >90% typical, 85% at light loads
Low Quiescent Current: 22μA (PFM mode)
Protections: UVLO, overvoltage, thermal shutdown, current limiting
Compact, Efficient & EMI-Friendly Design

Specifications

IC: AP64350SP-13
Input Voltage: 3.8V – 40V
Output Voltage: 5V fixed
Max Output Current: 1.5A (continuous)
Efficiency: Up to 90%
Quiescent Current: 22μA in light load (PFM)
Operating Temp:–40°C to +85°C

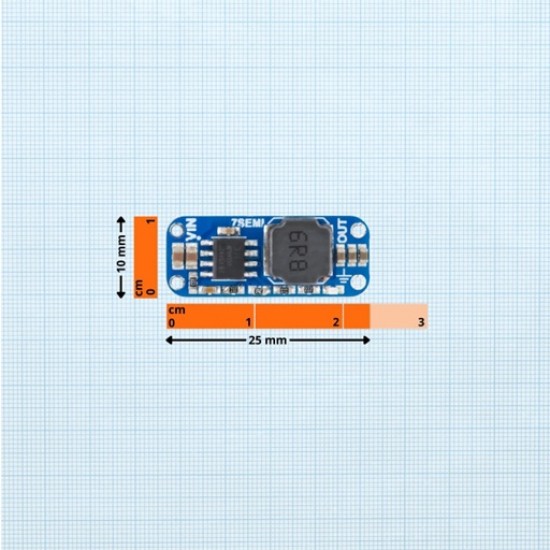

Board Dimensions: Approx.24.60mm x 9.83mm
Board Weight: 2g

Package Includes

1x 7Semi AP64350 DC-DC Buck Converter Board 3.8V to 40V Input, 5V Output
