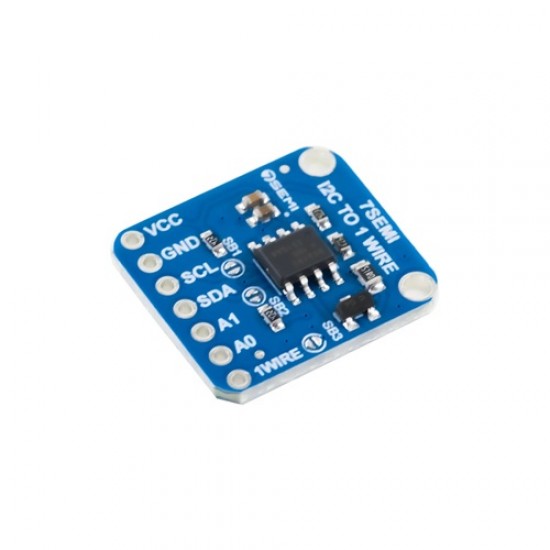

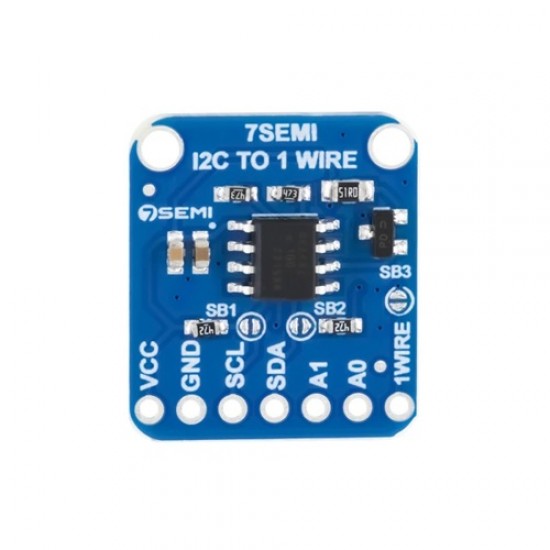

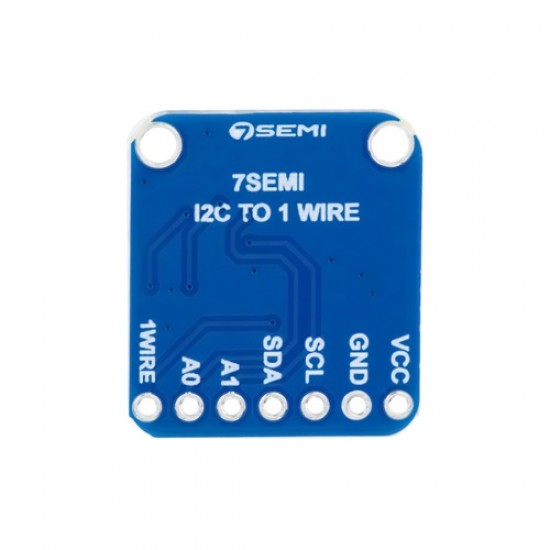

7Semi DS2482-100 I2C to 1-Wire Master Breakout
The 7Semi DS2482-100 I2C to 1-Wire Master Breakout is a versatile and efficient solution for integrating 1-Wire devices into I2C-based systems. Built around the DS2482-100 IC, this breakout module simplifies bidirectional protocol conversion, enabling reliable communication between a standard or fast I2C master (100kHz to 400kHz) and downstream 1-Wire slave devices, including sensors, EEPROMs, and other peripherals. With built-in timing control and intelligent signal conditioning, it removes the need for software-driven waveform generation on the host side.
Ideal for embedded developers and engineers working with sensor networks or data acquisition systems, this breakout supports both standard and Overdrive 1-Wire communication speeds. The DS2482-100 manages rising and falling signal edges with programmable slew rate control, while strong pullup functionality—available internally and externally via MOSFET control—ensures compatibility with energy-demanding 1-Wire devices. The module also includes configurable I2C slave addressing via binary input pins, simplifying integration in systems with multiple I2C peripherals.
Features
- Bidirectional I2C to 1-Wire Conversion: Facilitates direct interface between I2C masters and 1-Wire slave devices for data and control applications.
- Supports Standard and Overdrive Modes: Enables flexible communication speed settings for both slow and high-speed 1-Wire devices.
- Programmable Strong Pullup Control: Ensures stable power delivery for demanding 1-Wire peripherals such as sensors and EEPROMs.
- Built-in Slew Rate Control: Optimises waveform transitions for noise reduction and improved signal integrity.
- Internal Timing Management: Relieves host microcontroller from generating precise 1-Wire timing signals.
- External MOSFET Control Output: Supports additional current boost via external components for power-hungry devices.
- Two-Bit I2C Address Selection: Allows multiple devices on the same I2C bus without address conflicts.
- Compact Breakout Format: Ideal for rapid prototyping and integration into embedded or IoT projects.
Specifications
- Protocol: 1-Wire
- Function: Bridge, 1-Wire to I2C
- Interface: Serial, I2C, 1-Wire
- Voltage Supply: 2.9V - 5.5V
- Operating Temperature:-40°C ~ 85°C
Package Includes
- 1x 7Semi DS2482-100 I2C to 1-Wire Master Breakout
