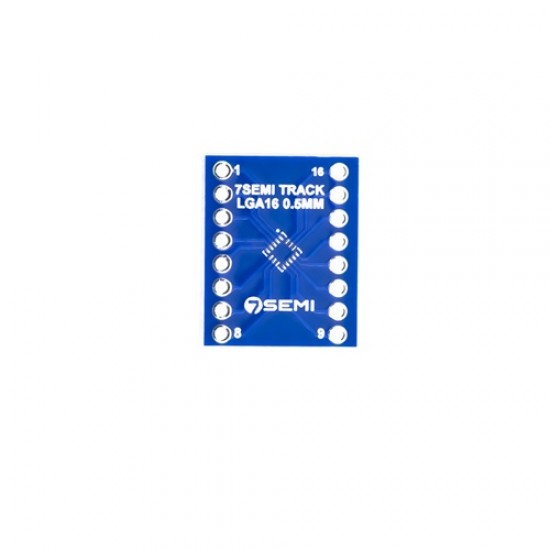

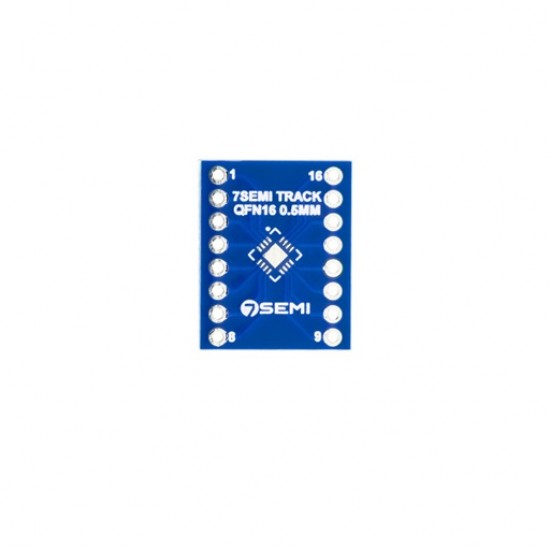

7Semi LGA16 QFN16 0.5mm Breakout Adapter PCB
Working with compact LGA16 and QFN16 ICs can be challenging during prototyping due to their small size and lack of breadboard compatibility. The 7Semi LGA16 / QFN16 Adapter Board solves this by converting these packages into a standard 2.54mm DIP layout.
This makes it easy to test and integrate sensors and ICs with platforms like Arduino, ESP32, and STM32 without designing a custom PCB. It helps reduce development time and allows quick debugging and testing of modern compact ICs used in embedded and IoT projects.
Features
- Converts LGA16 and QFN16 packages to breadboard-friendly format
- Enables easy testing of compact sensor and IC packages
- Saves time by avoiding custom PCB design
- Clear pin layout helps in correct IC placement
- Works well with Arduino, ESP32, STM32 projects
- Ideal for sensor ICs, IMUs, and compact modules
- Simplifies prototyping and debugging
- Compact and reusable design
Specifications
- Product type: SMD To DIP adapters
- No of pins: 16 Pin with 0.5 & 0.6mm pitch
- Footprint used: LGA & QFN 16
Package Includes
- 1x 7Semi LGA16 QFN16 0.5mm Breakout Adapter PCB
