7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp (MPN:BO-10214)

7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp (MPN:BO-10214)
7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp (MPN:BO-10214)
7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp (MPN:BO-10214)
New
7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp (MPN:BO-10214)
7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp (MPN:BO-10214)
7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp (MPN:BO-10214)
7Semi
7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp (MPN:BO-10214)
₹​111.00
₹​94.07 + 18% GST
All Inclusive, Shipping Calculated at Checkout

B2B GST Credit Available
Price in reward points: 94

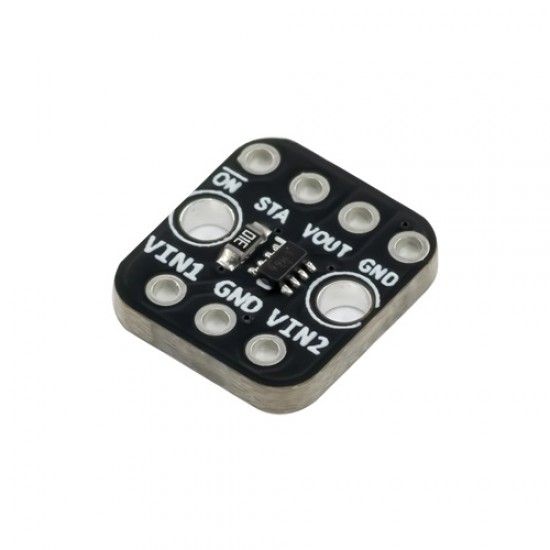

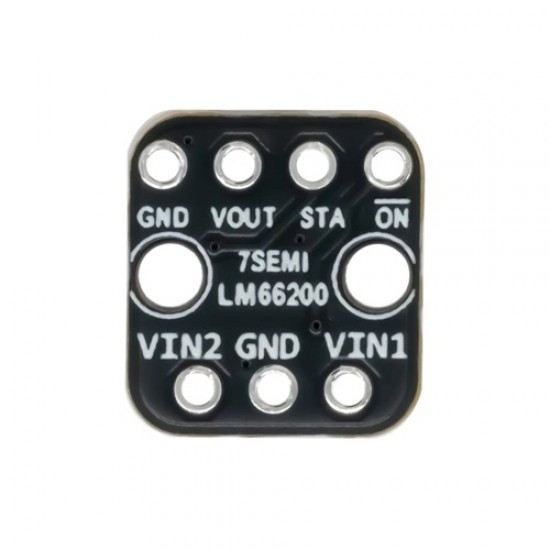

7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp

The 7Semi LM66200 Ideal Diode Module is a smart power management solution designed to automatically switch between two power sources. It ensures continuous and stable output by selecting the higher voltage input without interruption. Built with low-loss MOSFET-based ideal diode design, it offers efficient power transfer with minimal voltage drop. This module is perfect for battery backup systems, dual power supply setups, and embedded applications where reliability is important.


Datasheet


Features

  • LM66200 Based Design: Dual ideal diode power management
  • Dual Input Support: Connect two power sources easily
  • Automatic Switchover: Seamless switching between inputs
  • Low Voltage Drop: Efficient power delivery
  • Reverse Current Protection: Prevents backflow damage
  • High Efficiency: Low power loss operation
  • Compact Module: Easy integration in projects
  • Stable Output: Continuous power without interruption
  • Ideal Use: Battery backup, IoT, embedded and power systems


Specifications

  • IC USED: LM66200O
  • PERATIONAL VOLTAGE: 1.6V TO 5.5V
  • OPERATIONAL TEMPRATURE:-40°C TO 85°C
  • OUTPUT CURRENT RATING: 2.5A
  • SLEW RATE: AT 3.3V , 1.3ms

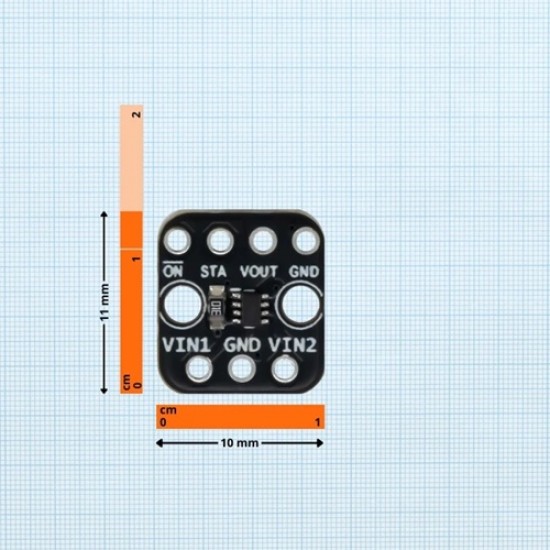

  • DIMENSION IN mm:L=10 W = 11 H = 2.6


Package Includes

  • 1x 7Semi LM66200 Dual Ideal Diode 1.6 V to 5.5 V 2.5Amp
