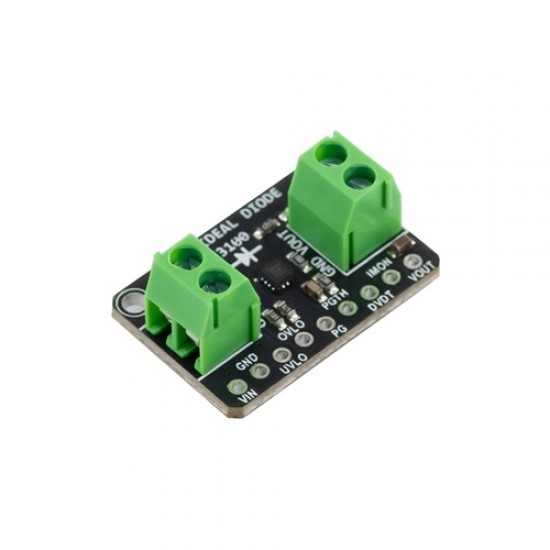

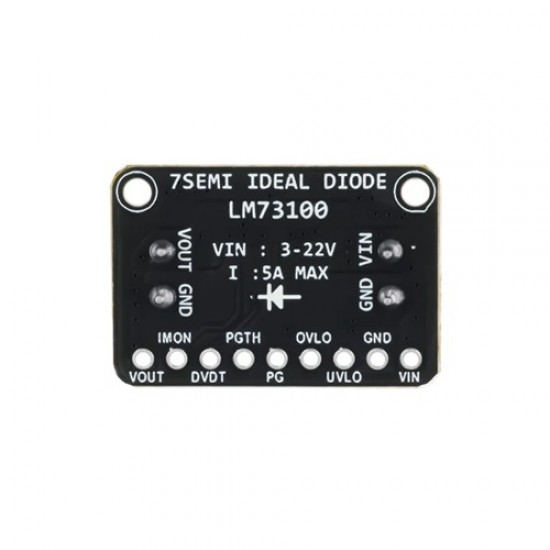

7Semi LM73100 Ideal Diode Protection Module –3.3V - 20 V, 5A Reverse Polarity & Overvoltage Protection

    The 7Semi LM73100 Ideal Diode Protection Module is a compact power protection board designed to provide reverse current blocking and reverse polarity protection with significantly lower power loss than traditional diode-based solutions. Based on the Texas Instruments LM73100 ideal diode controller, the module supports input voltages from 3.3V to 20V and load currents up to 5A.

    The module automatically allows current flow in the forward direction while preventing unwanted reverse current from flowing back to the power source. This makes it suitable for battery-powered equipment, industrial systems, embedded electronics, robotics, IoT devices, power multiplexing circuits, and backup power applications.

    In addition to ideal diode functionality, the board includes adjustable undervoltage lockout (UVLO) and overvoltage lockout (OVLO) protection. A Power Good output provides status indication, while the IMON pin enables analog current monitoring for system diagnostics and control.


    Datasheet


    Features

    • Based on Texas Instruments LM73100 Ideal Diode Controller
    • Supports input voltages from 3.3V to 20V
    • Handles up to 5A continuous current
    • Reverse current blocking protection
    • Reverse polarity protection
    • Adjustable undervoltage lockout (UVLO)
    • Adjustable overvoltage lockout (OVLO)
    • Power Good status output
    • Analog current monitoring through IMON pin
    • Adjustable output slew rate control
    • High efficiency operation with low power loss
    • Suitable for battery backup and power OR-ing applications
    • Compact design for embedded and industrial systems


    Specifications

    • IC USED: LM73100
    • OPERATIONAL VOLTAGE: 3.3V TO 23V DC
    • MAX CURRENT RATING: 5A
    • RESPONSE TIME: 5ns
    • OPERATIONAL TEMPRATURE:–40°C to +70°C

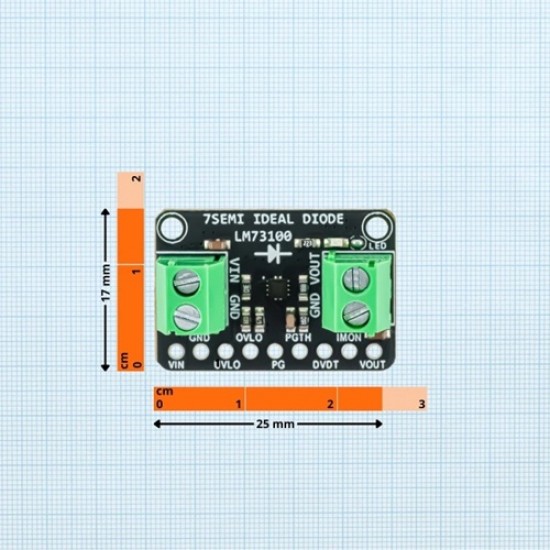

    • DIAMENSION IN mm: L=25mm W=17mm H=10mm


    Package Includes

    • 1x 7Semi LM73100 Ideal Diode Protection Module –3.3V - 20 V, 5A Reverse Polarity & Overvoltage Protection
