7Semi MLX90393 Tri-axis Micropower Magnetometer Breakout

    The MLX90393 Tri-axis Micropower Magnetometer Breakout is a compact sensor offering precise magnetic field measurements along three axes with low power consumption, ideal for battery-powered applications. With configurable resolution and sampling rates, it communicates via I2C and SPI, making it versatile for integration in compasses, motion tracking, and position sensing in IoT devices.


    Datasheet


    Features

    • Advanced Magnetic Sensing: Detects magnetic fields in three axes (X, Y, Z) and temperature (T), delivering comprehensive sensing data for accurate measurements.
    • Ultra-Low Power Consumption: Designed for micropower applications, consuming as little as 100µA on average, making it ideal for battery-powered devices.
    • Wide Programmable Duty Cycle: Configurable from 0.1% to 100%, enabling a customizable balance between power efficiency, speed, and signal accuracy.
    • High-Resolution Measurements: Achieves a maximum full-scale resolution of 44,000µT with a fine sensitivity of 0.161µT, perfect for capturing minute magnetic changes.

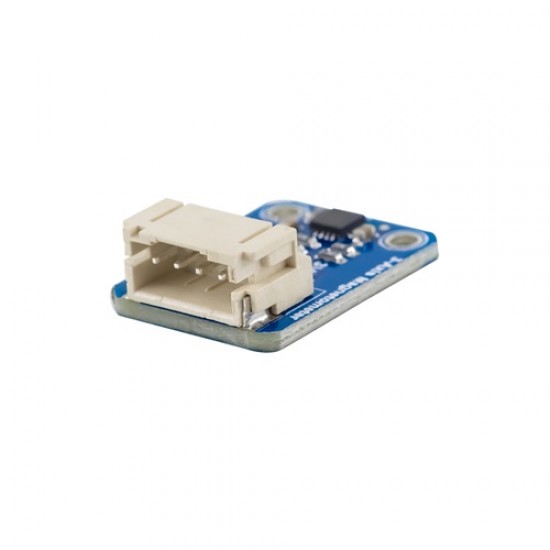

    • Versatile Connectivity: Equipped with 4-pin 2 mm pitch JST connectors and 0.1" pins, supporting both soldering and breadboard setups for easy microcontroller integration.
    • Reliable Operating Range: Functions effectively between -20°C and 85°C, making it suitable for various environmental conditions.
    • I2C Communication Interface: Uses I2C with an address of 0xC0, ensuring simple yet effective communication with most microcontroller units.


    Specifications

    • Supply Voltage Range: 3.3V
    • OPERATIONAL TEMPRATURE:-40C to 70
    • CAXIS-FOV: 3-DOF
    • MAGNETOMETER RANGE: 50000 UT

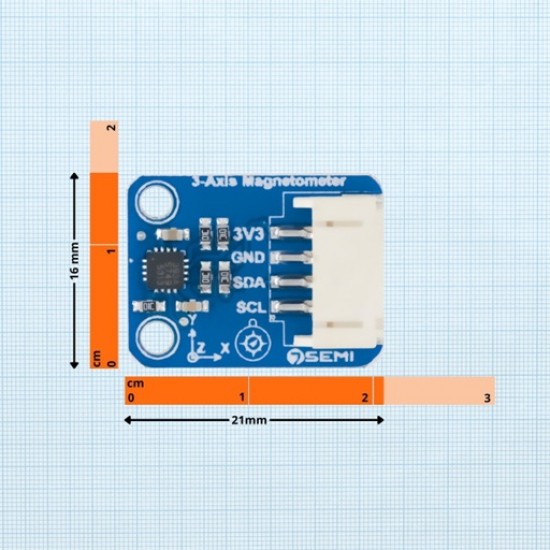

    • DIMENSION IN mm: L=21mm W= 16mm H = 7mm


    Package includes

    • 1X 7Semi MLX90393 Tri-axis Micropower Magnetometer Breakout
