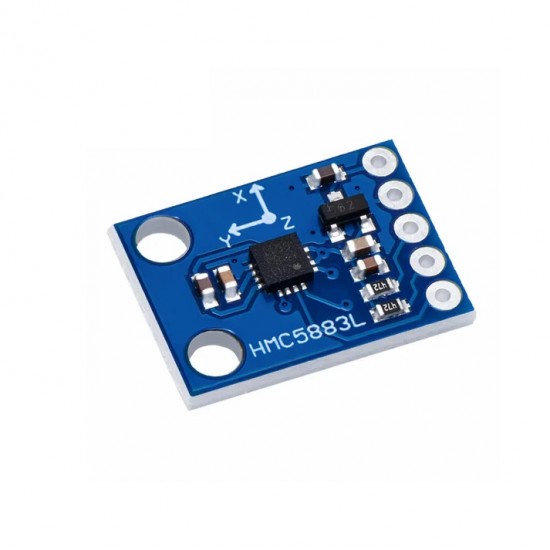

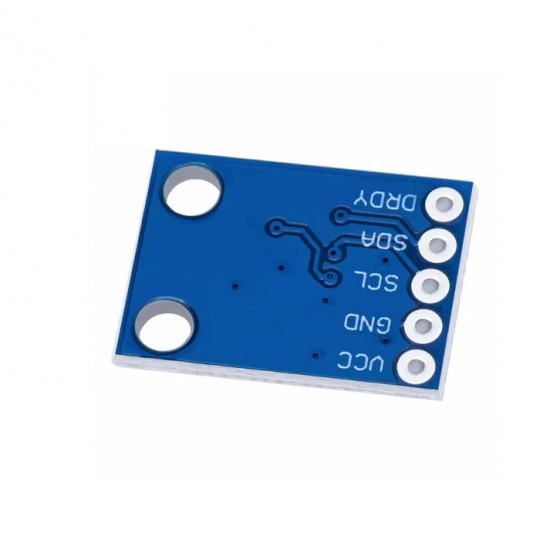

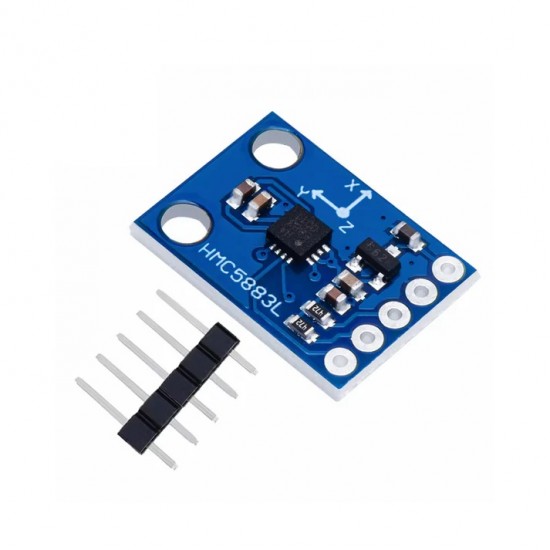

GY-273 HMC5883L 3-Axis Digital Compass Magnetometer Sensor Module
The GY-273 HMC5883L 3-Axis Digital Compass Magnetometer Sensor Module is a high-precision magnetic field sensing board designed to measure the Earth’s magnetic field in three axes (X, Y, Z). Based on the reliable HMC5883L sensor from Honeywell, this module enables accurate heading detection and orientation measurement, making it ideal for digital compass applications.
Using an I²C interface, the GY-273 module can be easily integrated with popular microcontrollers and development boards such as Arduino, ESP32, and Raspberry Pi. The sensor provides calibrated digital output, low noise performance, and high sensitivity, allowing precise measurement of magnetic fields for navigation, robotics, drones, and motion tracking systems.
Features
- 3-axis magnetic field measurement (X, Y, Z)
- Digital compass functionality for heading detection
- I²C interface for simple communication
- High sensitivity and low noise performance
- Built-in ADC for direct digital output
- Compact and lightweight module design
- Low power consumption
Specifications
- Model: GY-273
- Driver Chip: HMC5883L Triple-Axis Magnetometer
- Operating Voltage: 3~5VDC
- Communication Interface: I²C (up to 400 kHz)
- Heading Accuracy: 1°–2° typical
- Resolution: Up to 12-bit ADC output
- Operating temperature: -22 to +185 °F (-30 to +85 °C) 160Hz Max Data Rate
Applicatons
- Electronic compass and navigation systems
- Robotics and autonomous vehicles
- Drone orientation and stabilization
- Motion tracking and positioning
- Indoor navigation projects
- Educational and DIY electronics
Package Includes
- 1x GY-273 HMC5883L 3-Axis Digital Compass Magnetometer Sensor Module
