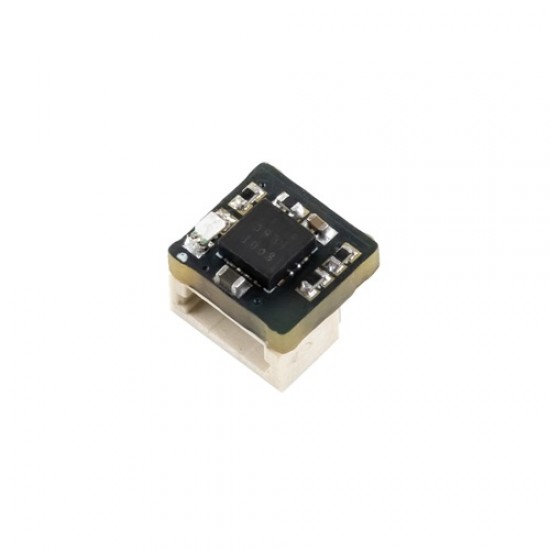

7Semi MMC5983MA Micro Magnetometer, 3-axis Magnetic Sensor
The MMC5983MA Micro Magnetometer is a compact 3-axis magnetic sensor designed for high-precision magnetic field measurement, offering an accuracy of ±0.5° for heading applications. With a measurement range of ±8 Gauss and an I2C communication interface, this sensor is ideal for applications in navigation, motion sensing, and magnetic anomaly detection, providing low noise, low power consumption, and ease of integration into various electronic systems.
Features
- Unmatched Sensitivity: Senses down to 0.4mG for highly accurate measurements.
- Precision Heading: Ensures accuracy within ±0.5° for precise directional applications.
- Built-In Degaussing Circuitry: Automatically clears residual magnetization, preventing saturation.
- High Output Rate: Max 1000Hz data output rate for rapid data processing.
- High Resolution: 18-bit resolution for fine-grained magnetic readings.
- Wide Dynamic Range: ±8G full-scale range (FSR) to capture a broad range of magnetic fields.
- Temperature Compensation: On-chip temperature sensor minimizes thermal offsets.
- Low Power Mode: 1μA power down current for efficient energy use.
- Easy Integration: Qwiic I2C connectivity, 3.0V power supply, and fast mode support up to 400kHz.
Specifications
- OPERATIONAL VOLTAGE: 3.3V
- OPERATIONAL TEMPRATURE:-40 TO 80
- AXIS-FOV: DOF-6A
- CCELARATION: ±2g, ±4g, ±8g, ±16g
- GYROSCOPE: ±125 / ±250 / ±500 / ±1000 / ±2000 dps

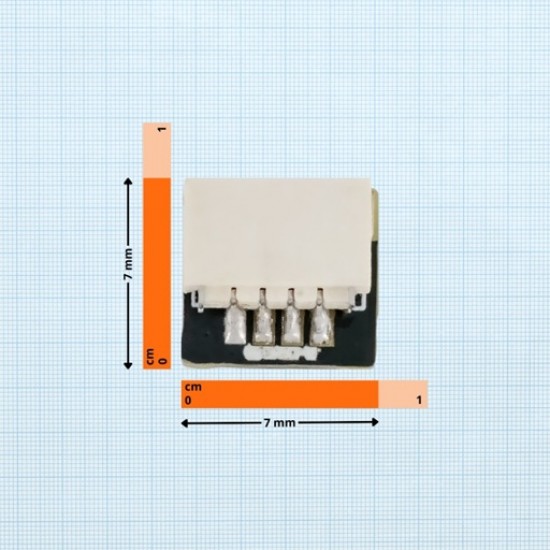

- DIMENSION: 14 x 7 x 5
Package Includes
- 1x 7Semi MMC5983MA Micro Magnetometer, 3-axis Magnetic Sensor
