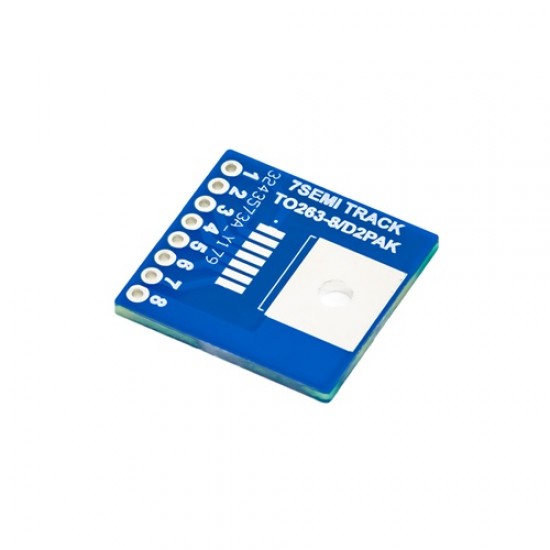

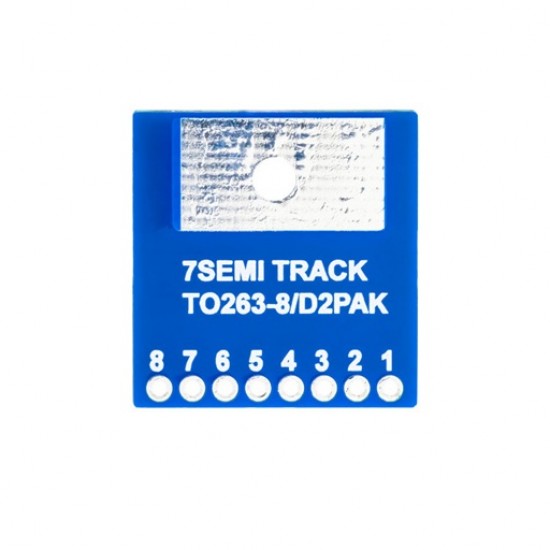

7Semi TO-263-8 D2Pak Breakout Adapter PCB
The TO-263-8 D2Pak Breakout Board by 7Semi serves as a printed circuit board created specifically as an Adapter PCB. Its primary function is to facilitate prototype development with a variety of surface-mount packages. Tailored to function as a DIP adapter, it supports an array of packages, such as D2PAK, DDPAK, DPAK, TO-252, and various TO and SOT types.
Featuring solder pads mirroring the pinout of the TO-263-8 D2Pak, this board guarantees easy and hassle-free mounting. The pins of the package are then connected to two rows of 0.1" spaced holes, simplifying the prototyping process on standard breadboards or other prototyping boards.
Created with designers handling diverse surface-mount packages in mind, this breakout board adapter PCB is an invaluable tool. It streamlines the entire prototyping procedure, saving both time and effort by offering a standardized footprint that seamlessly integrates into larger circuits. Furthermore, it plays a crucial role in meeting specifications and requirements by facilitating swift testing and evaluation of different components, ensuring the overall efficiency of the final product.
Features
- Pin Spacing is compatible with breadboard.
- Pin numbers and Pin 1 are easily identifiable.
- Pins are out with traces going to two rows of 0.1" spaced holes.
Specifications
- Category of product: SMD to DIP Adapters
- No of pins: 8 pins

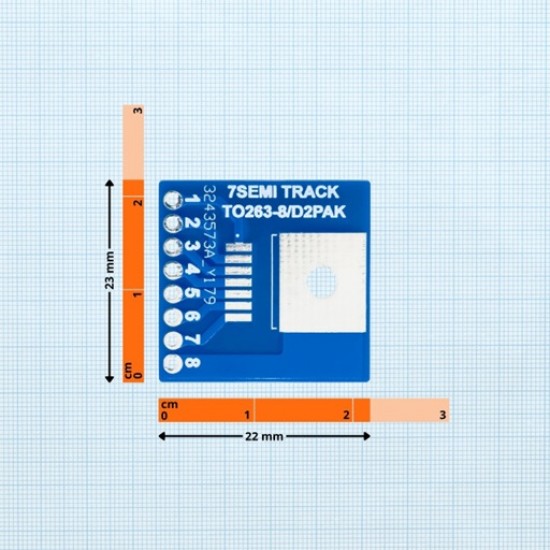

- Dimension in mm: 22mm x 23mm
Package Includes
- 1x 7Semi TO-263-8 D2Pak Breakout Adapter PCB
