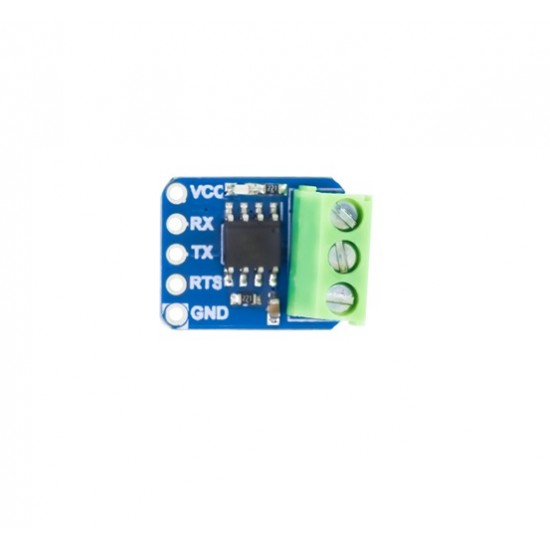

RS485 to UART Transceiver Breakout - SP485EEN

The 7Semi RS485 to UART Transceiver Breakout, featuring the SP485EEN IC, is engineered for stable and low-power RS-485 data transmission. This high-performance module ensures seamless communication with a single driver and receiver per device. Its slew-rate-limited driver effectively reduces electromagnetic interference (EMI) and prevents signal reflections from improper cable termination, ensuring smooth data exchange at speeds up to 250kbps.

Designed to support up to 256 transceivers on a single RS-485 bus, this module boasts a high receive input impedance, making it suitable for large-scale applications. Its robust build includes ±10kV electrostatic discharge (ESD) protection for enhanced durability. The integration of a 3-pin terminal block and a 2.54mm pin header allows flexible connectivity with various hardware platforms. This transceiver breakout is ideal for industrial automation, building management systems, embedded networking, and IoT communication modules.

Datasheet

Features

High-Speed Data Transmission: Ensures reliable data transfer at rates up to 250kbps, reducing errors in communication.
Electromagnetic Interference Reduction: Slew-rate-limited driver minimizes EMI and signal reflections for improved stability.
Multiple Transceiver Support: High input impedance enables seamless operation with up to 256 transceivers on the same RS-485 bus.
Robust ESD Protection: Built-in ±10kV electrostatic discharge protection safeguards components against voltage spikes.

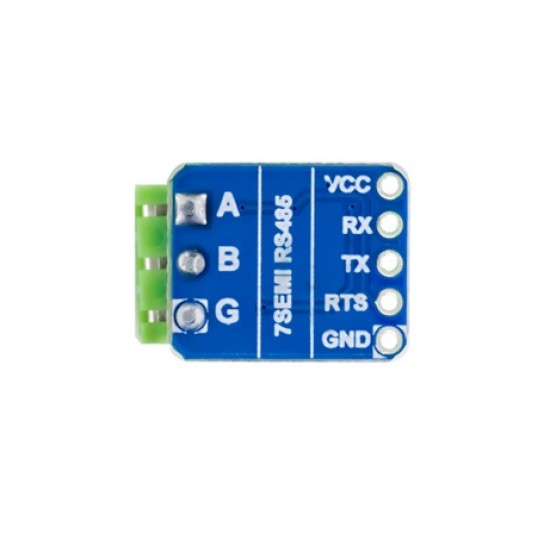

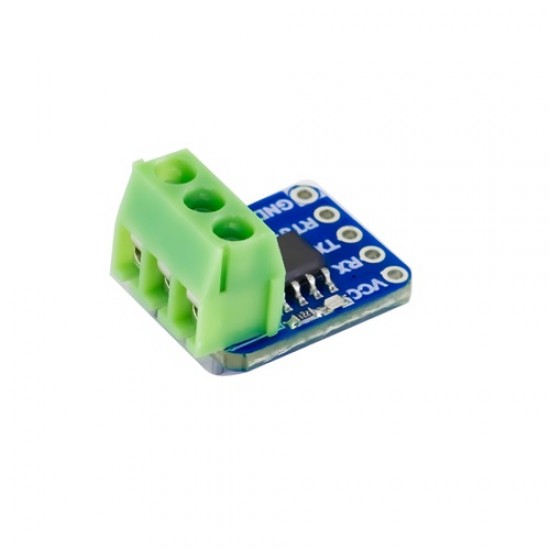

Flexible Connectivity: Equipped with a 3-pin terminal block and 2.54mm pin headers for easy integration with breadboards and wiring systems.
Compact and Sturdy Build: Durable yet lightweight design, perfect for industrial and embedded applications.

Specifications

Operating Voltage: 5V
Operating Current: 800 µA
Communication/Interface: RS485 / UART

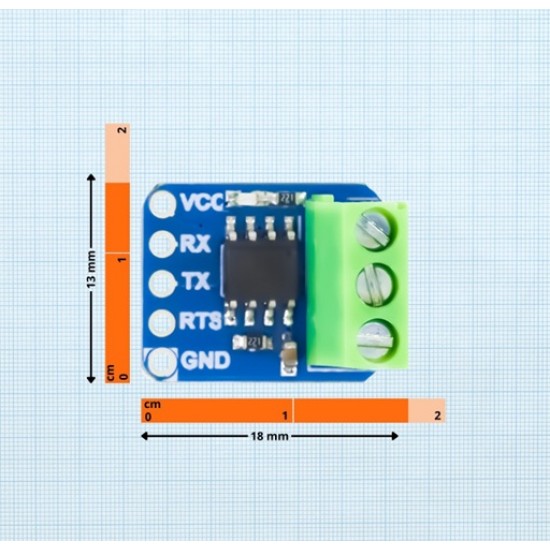

Dimension in mm: 18 X 13 X 12.24
Weight: 2 Gram
Operating Temperature: -40°C and +85°C

Package Includes

1x RS485 to UART Transceiver Breakout - SP485EEN
