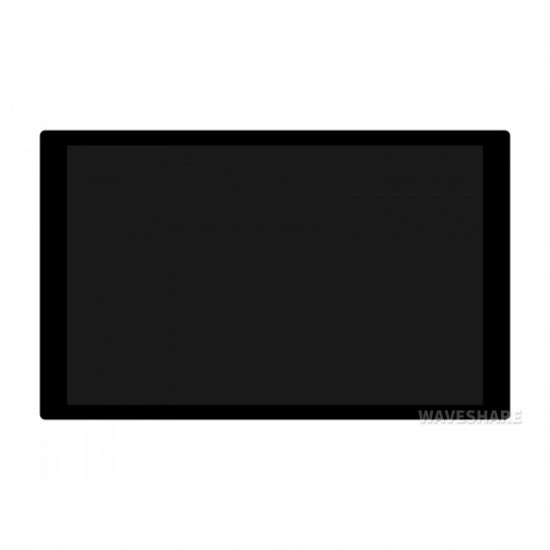

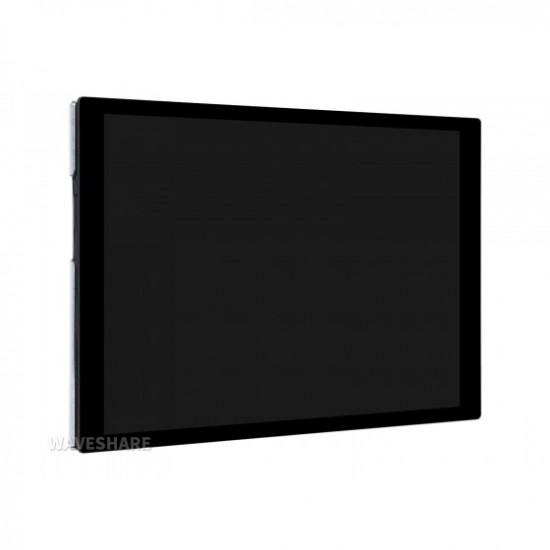

8inch DSI Capacitive Touch Display, 800×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch

8inch DSI Capacitive Touch Display, 800×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch

Features

• 8-inch IPS capacitive touch screen with a hardware resolution of 1280 x 800
• Adopts optical bonding technique, clearer imaging
• Support 10-point capacitive touch control, tempered glass touch panel with 6H hardness
• Drive LCD directly through Raspberry Pi's DSI interface with a refresh rate of up to 60Hz
• When working with Raspberry Pi, the Raspberry Pi OS system driver is provided
• Support Pi 4B/3B+/3A+, CM3+/4 should work with DSI cable
• Support backlight adjusted by software

Resources

User Manual / Datasheet / Example Codes Etc.

Package Contents

1. 8-DSI-TOUCH-A x1
2. MIPI-DSI-Cable-12cm x1
3. MX 1.25 2PIN to 2.54 3PIN cable x1
4. FFC 22PIN cable ~200mm x2
5. MX 1.25 2PIN to MX1.25 4PIN cable ~150mm x1
6. Screws pack x1

Pinouts

Dimensions
