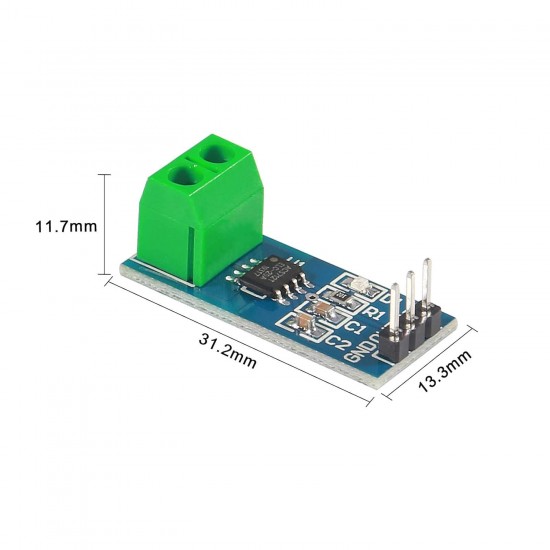

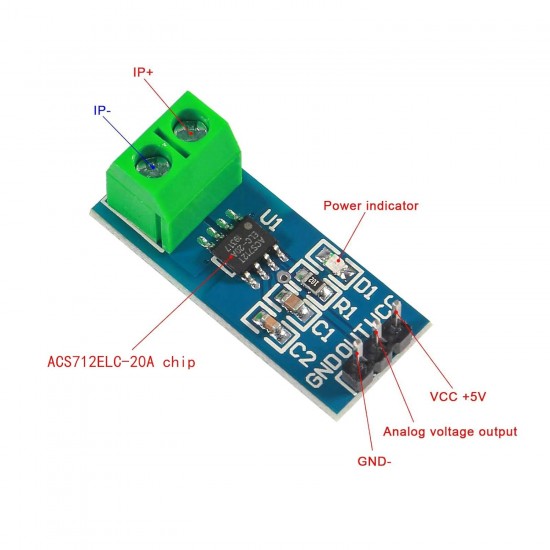

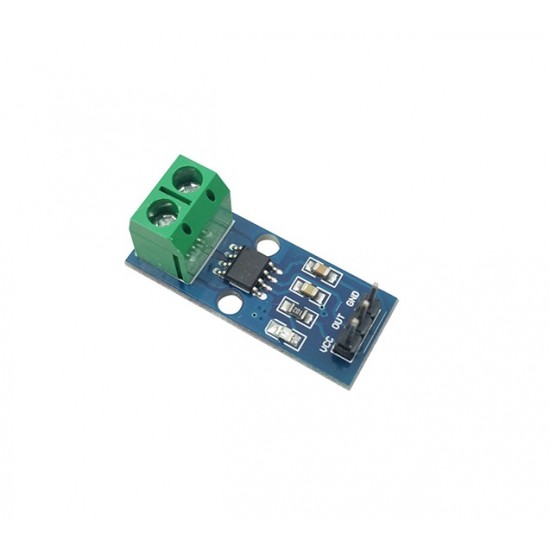

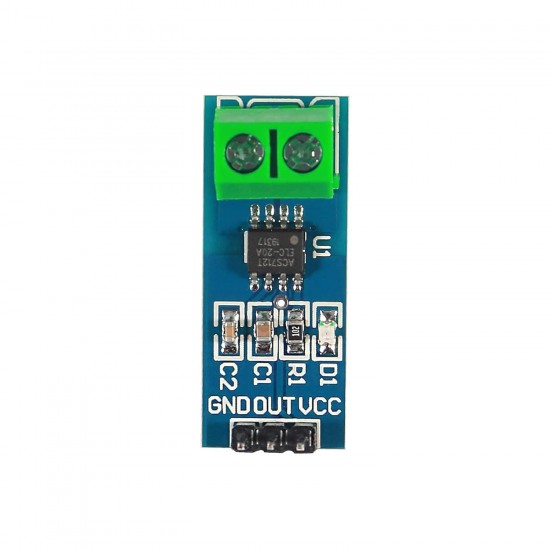

ACS712 30A Current Sensor Module
The ACS712 30A Current Sensor Module is a compact and reliable solution for measuring both AC and DC current in electronic circuits. Based on the ACS712 Hall Effect Current Sensor IC, this module uses Hall-effect sensing technology to provide precise, electrically isolated current measurements without direct contact with the conductor.
The module outputs an analog voltage proportional to the measured current, allowing simple interfacing with microcontrollers such as Arduino, ESP32, Raspberry Pi, and other development platforms. Its built-in electrical isolation enhances safety and protects sensitive control circuits from high-current paths.
Features
- Hall-effect based current sensing (non-contact measurement)
- Measures both AC and DC current
- Bidirectional current sensing (±30A range)
- Output voltage proportional to current
- Electrical isolation between high-current path and control circuit (up to ~2.1 kV RMS)
- Low-noise analog signal path for stable readings
- Fast response time (~5 µs) for dynamic applications
- Adjustable bandwidth via onboard filter pin (~80 kHz typical)
- Factory-calibrated for improved accuracy and low offset error
- Nearly zero magnetic hysteresis
- Compact size and easy PCB mounting
- Compatible with microcontrollers like Arduino, ESP32, Raspberry Pi
Specificatons
- Sensor IC: ACS712
- Current Range: ±30A
- Sensing Type: Hall-effect
- Measured Current: AC & DC
- Supply Voltage: 4.5V~5.5V DC
- Output Type: Analog voltage
- Sensitivity: ~100 mV/A (typical)
- Zero Current Output: ~2.5V
- Isolation Voltage: 2.1 kV RMS (typical)
- Operating Temperature: -40°C to +85°C
- Interface: Analog output pin
- Mounting Type: PCB module
- Applications: Power supplies, motor drivers, inverters, solar systems, current monitoring
Package Includes
- 1x ACS712 30A Current Sensor Module
