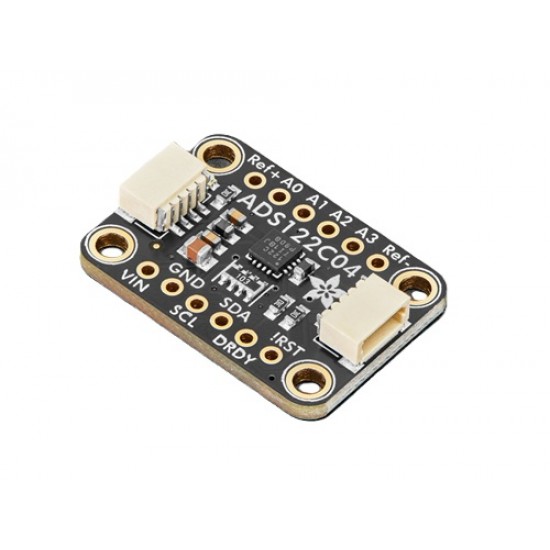

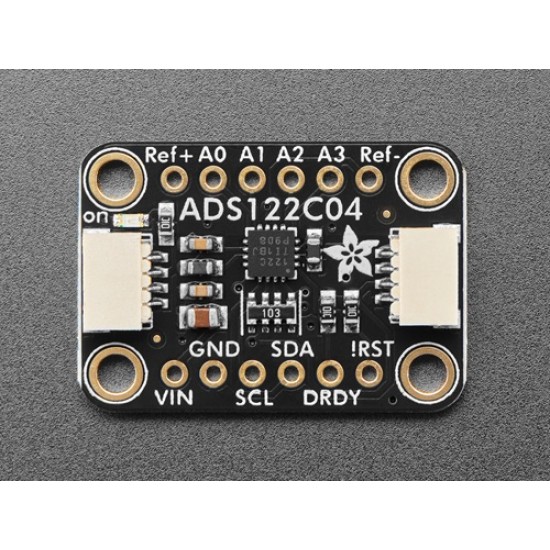

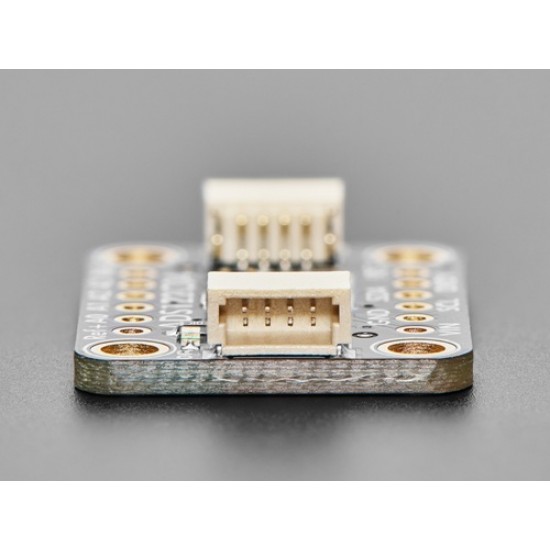

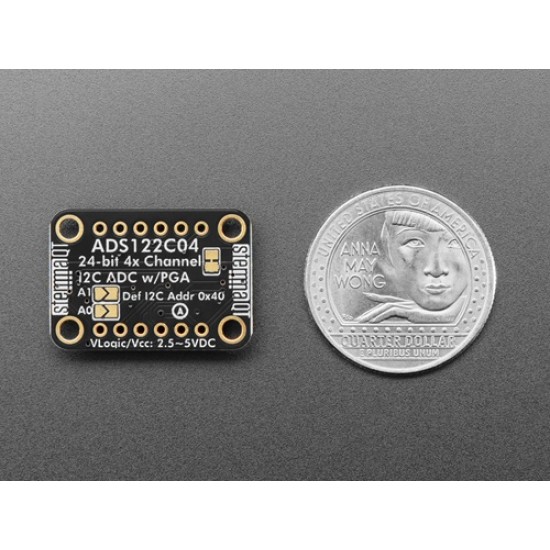

Adafruit ADS122C04 24-Bit ADC - 4 Channel 2-kSPS - STEMMA QT / Qwiic
The Adafruit ADS122C04 24-Bit ADC with 4 Channel 2-kSPS is an excellent way to take very high-precision measurements of single-ended or differential analog signals over I2C. Most 24-bit ADCs are found on strain-gauge sensors like the NAU7802 and don't have high speeds or configurations. And most fast-ish I2C ADCs like the ADS1115 top out at 16 bits. The ADS122C04 is a bit more expensive than either but it's one of the few ADCs we've seen that gives you up to 2000 samples-per-second (on one channel) at 24-bit resolution.
As you can expect from TI, it's a great quality ADC with lots of extras like a reset pin, internal temperature sensor, either single-ended or differential on any of the four inputs, internal 2.048V reference voltage, external positive and negative reference voltage input pins, 3V or 5V power and logic levels, and up to 128x gain. It even has two I2C address pins so you can put four of these on the same I2C bus.
This board would make an excellent data acquisition interface for lots of different scientific or engineering measurements. The I2C interface means its easy to get it working with any microcontroller or microcomputer, from the 8-bit Arduino-compatible to the highest end Raspberry Pi. Note that to get 2kSPS you'll need to run the I2C bus at 1 MHz and process that data from I2C quickly!

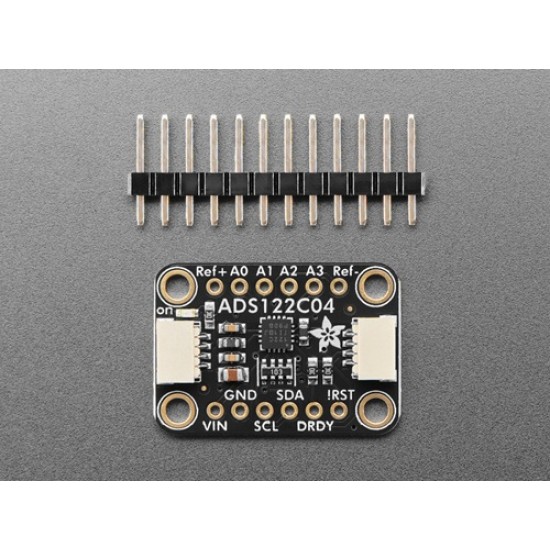

Comes with a bit of 0.1" standard header in case you want to use it with a breadboard or perfboard. Four mounting holes for easy attachment.
User Manual / Datasheet / Example Codes Etc.
Specifications
- Chip Current Consumption as Low as 315 µA (typ)
- Wide Supply Range: 2.3 V to 5.5 V
- Programmable Gain: 1 to 128
- Programmable Data Rates: Up to 2 kSPS
- Up to 20 Bits Effective Resolution
- Simultaneous 50-Hz and 60-Hz Rejection at 20 SPS With Single-Cycle Settling Digital Filter
- Two Differential or Four Single-Ended Inputs
- Dual-Matched Programmable Current Sources: 10 µA to 1.5 mA
- Internal 2.048-V Reference: 5 ppm/°C (typ) Drift
- Internal 2% Accurate Oscillator
- Internal Temperature Sensor: 0.5°C (typ) Accuracy
- I2C-Compatible Interface
- Supported I2C Bus Speed Modes: Standard-Mode, Fast-Mode, Fast-Mode Plus
- Product Dimensions: 25.5mm x 17.7mm x 4.7mm / 1.0" x 0.7" x 0.2"
- Product Weight: 1.6g / 0.1oz
Package Includes
- 1x Adafruit ADS122C04 24-Bit ADC - 4 Channel 2-kSPS - STEMMA QT / Qwiic
