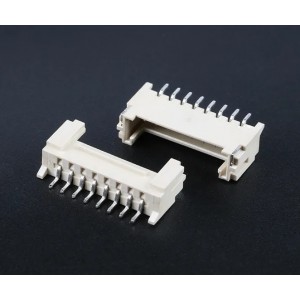

8 Pin 2.0mm Pitch Connector Socket for DWIN HMI LCDs Compatible with HDL65013This connector is an accessory for DWIN HMI LCDs. This connector can be u..
₹15.00
Ex Gst ₹12.71
FCC-10-1.0 10Pin 1.0mm FCC Socket for DWIN HMI LCDsThis is an accessory for DWIN HMI LCDs. It is used as an user interface connector in many DWIN HMI ..
₹29.50
Ex Gst ₹25.00
This is an accessory cable meant to be used with HDL662B Adapter. It allows connection of HDL662B module with the host PC for programming and de..
₹147.50
Ex Gst ₹125.00
DWIN - HDL662S Debugging Adapter Board for CoF LCDsHDL662S is a debugging adapter board designed for F series COF screens. Lead out 22 IO ports, 3 UAR..
₹588.00
Ex Gst ₹498.31
16GB Class10 Micro SD CardMicro SD card with high speed class 10 specifications. With 16 GB memory capacity this SD card is suitable for usage with va..
₹299.00
Ex Gst ₹253.39
The product image is indicative, actual product may vary in color and looks. FeaturesLow cost and compact micro SD card reader module. High tran..
₹49.00
Ex Gst ₹41.53
HL-340 - USB to RS232 Adapter Cable - CH340 BasedCH340 chip based USB to RS232 full modem cable with moulded connector housing. This cable works p..
₹110.00
Ex Gst ₹93.22
DWIN HDL662K USB to Serial Port FFC Adapter Board - 10 Pi 1.0mm FCC InterfaceThe DWIN HDL662K USB to Serial Port FFC Adapter Board is a compact and re..
₹649.00
Ex Gst ₹550.00
WiFi-10 module for DWIN Cloud Development Platform ESP8266 + 4MB flash 2.4-2.5G AdapterThe WiFi-10 module is a feature-rich component designed for sea..
₹447.00
Ex Gst ₹378.81₹2,099.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 18
B2B GST Credit Available
Price in reward points: 1779
- Stock: 41 in Stock
- SKU: 04317
- Delivery Time
- Bulk & B2B RFQ

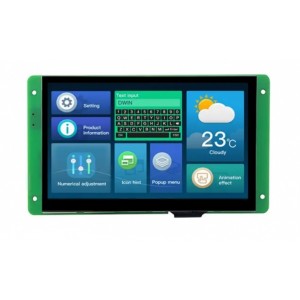

DWIN 7inch HMI TFT LCD, Resistive Touch, TV-TN TFT 800x480 200nit LCD Display, DMG80480C070_04WTR
This is a DWIN 7inch HMI TFT LCD, Resistive Touch, TV-TN TFT 800x480 200nit LCD Display, DMG80480C070_04WTR. The Dwin 7inch Resistive Touch Display comes with 262k color with 200nit brightness.
Features
- Based on T5L0, running DGUS II system, commercial grade.
- 7.0-inch, 800*480 pixels resolution, 262K colors, TV-TN-TFT-LCD
- Resistive touch screen
- TTL/CMOS interface; 10Pin_1.0mm connection wire
- Download via SD card or on-line serial port
- Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required;
- Dual Development System:DGUSⅡ/TA(Instruction set)
- TV viewing angle, 70°/70°/40°/30°（L/R/U/D）
- With GUI&OS dual-core,GUI with rich controls,DWIN OS kernel is open to the user for the second-development,via DWIN OS language or KELI C51
Specifications
Display
- Color : 262K colors
- LCD Type : TV-TN, TFT LCD
- Viewing Angle : Normal viewing angle, 70°/70°/40°/30°（L/R/U/D）
- Display Area（A.A）: 154.08mm (W) ×85.92mm (H)
- Resolution : 800x480Pixel
- Backlight : LED
- Brightness : DMG80480C070_04WTR:200nit
Voltage & Current
- Power Voltage 4.5~5.5V, typical value of 5V
- Operation Current (DMG80480C070_04WTR) : VCC = +5V, Backlight on,545mA
- Operation Current (DMG80480C070_04WTC) : VCC = +5V, Backlight on,500mA / VCC = +5V, Backlight off,170mA
Reliability Test
- Working Temperature : -20℃~70℃ (5V @ 60% RH)
- Storage Temperature : -30~80℃
- Working Humidity : 10%~90%RH, typical value of 60% RH
Interface
- LCM interface : FPC50_0.5mm, RGB interface
- RTP interface : FPC4_1.0mm
- CTP interface : COB structure, IIC interface
- Baudrate :3150~3225600bps, typical value of 115200bps
- Output Voltage : Output 1, Iout = 1mA;3.0~3.3 V / Output 0, Iout =-1mA;0~0.3V
- Input Voltage（RXD） Input 1, Iin = 1mA， 2.4~5.0V / Input 0, Iin = -1mA， 0~0.5V
- User Interface : 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
- Flash : 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
- Buzzer : 3V passive buzzer. Power: <1W
- SD interface : FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
- PGT05 interface : When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
