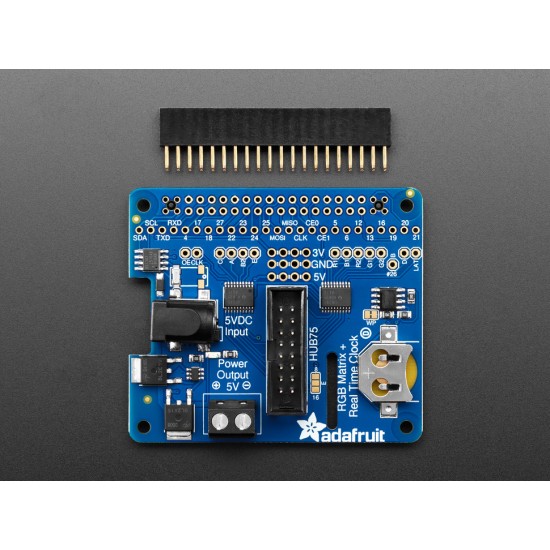

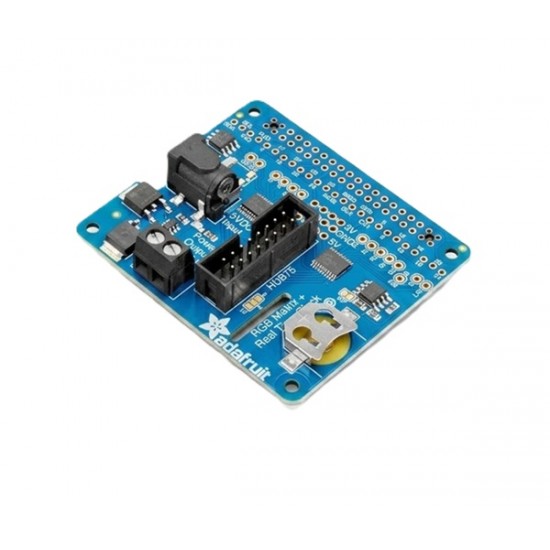

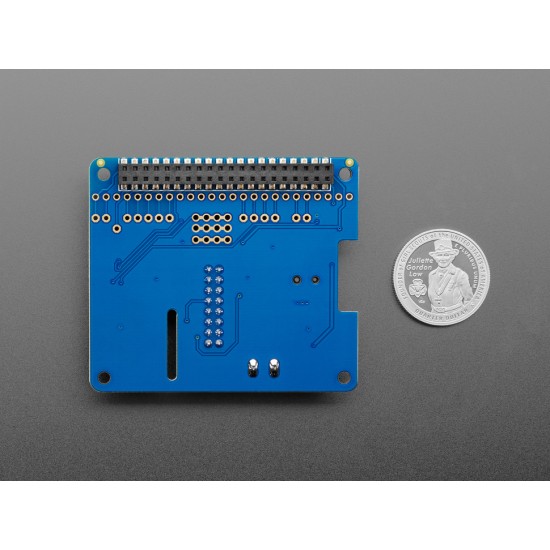

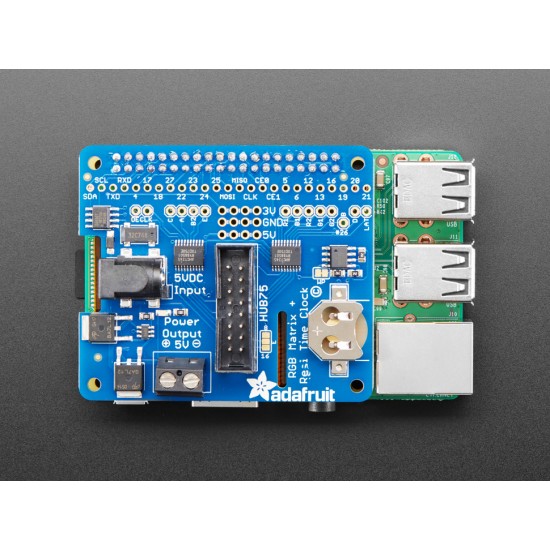

Adafruit RGB Matrix HAT + RTC for Raspberry Pi - Mini Kit
The Adafruit RGB Matrix HAT + RTC for Raspberry Pi – Mini Kit is a powerful add-on board designed to make driving HUB75 RGB LED matrix displays from a Raspberry Pi simple and reliable. This HAT plugs directly onto compatible Raspberry Pi boards and provides an easy interface for creating scrolling text displays, digital clocks, animations, scoreboards, and colorful LED video walls. It features onboard level shifting circuitry for stable 5V matrix control, integrated power protection, and a built-in DS1307 real-time clock (RTC) for accurate timekeeping even when the Raspberry Pi is powered off.
Compatible with Raspberry Pi Zero, A+, B+, Pi 2, Pi 3, Pi 4, and newer supported models, the HAT works with HUB75 RGB LED matrices in sizes such as 16×32, 32×32, 32×64, and 64×64. It supports chaining multiple panels together to create larger displays for advanced projects. The onboard RTC allows time-based applications like clocks, scheduling displays, and information boards to maintain accurate time without internet connectivity.
Features
- Designed for driving HUB75 RGB LED matrix panels directly from Raspberry Pi
- Built-in DS1307 Real-Time Clock (RTC) for accurate timekeeping
- Battery backup support for maintaining time during power loss
- Onboard level shifters for reliable 3.3V to 5V signal conversion
- Supports Raspberry Pi Zero, Pi 2, Pi 3, Pi 4, and compatible models
- Compatible with popular RGB matrix sizes including 16×32, 32×32, 32×64, and 64×64
- Allows chaining multiple RGB matrices for larger displays
- IDC HUB75 connector for easy panel connection
- Reverse polarity protection for safer operation
- Works with Python libraries and Adafruit RGB Matrix software
- Ideal for clocks, scoreboards, scrolling text, animations, dashboards, and signage
- Compact HAT design for easy installation on Raspberry Pi
- Mini kit includes header and terminal block requiring simple soldering
Specifications
- Product Type: RGB Matrix HAT for Raspberry Pi
- Display Interface: HUB75 RGB Matrix
- RTC Chip: DS1307
- Logic Level Conversion: 3.3V to 5V onboard level shifting
- Compatible Boards: Raspberry Pi Zero, A+, B+, Pi 2, Pi 3, Pi 4
- Supported Matrix Sizes: 16×32, 32×32, 32×64, 64×64 and compatible HUB75 panels
- Power Input: External 5V DC supply
- RTC Backup Battery: CR1220 coin cell (not included)
- Connectivity: IDC ribbon cable connector
- Programming Support: Python, C/C++, CircuitPython compatible libraries
- Protection Features: Reverse polarity protection
- Assembly Level: Partial assembly required
- Applications: LED displays, clocks, scoreboards, information panels, digital signage
Package Includes
- 1x RGB Matrix HAT + RTC for Raspberry Pi - Mini Kit
