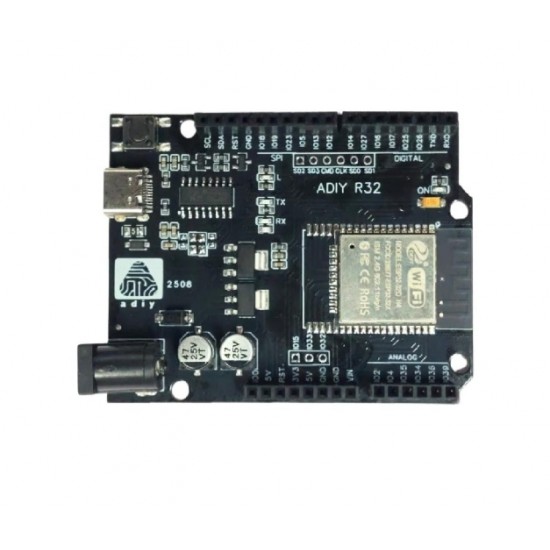

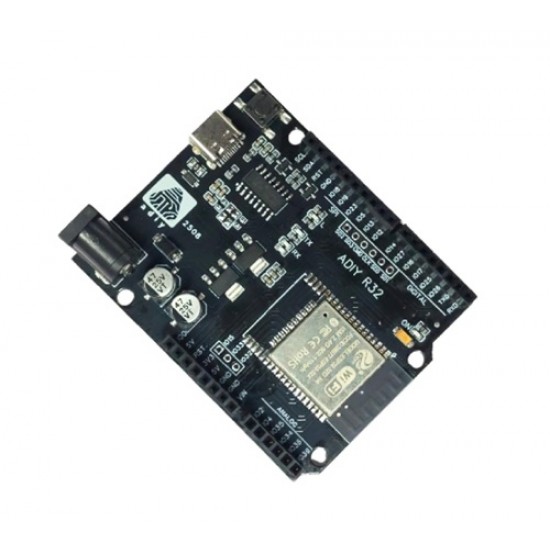

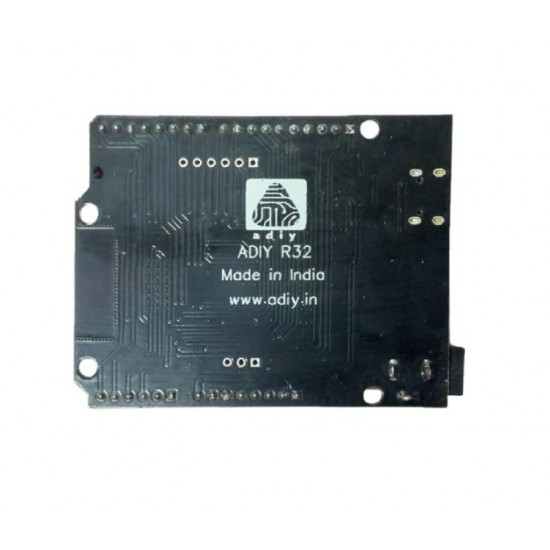

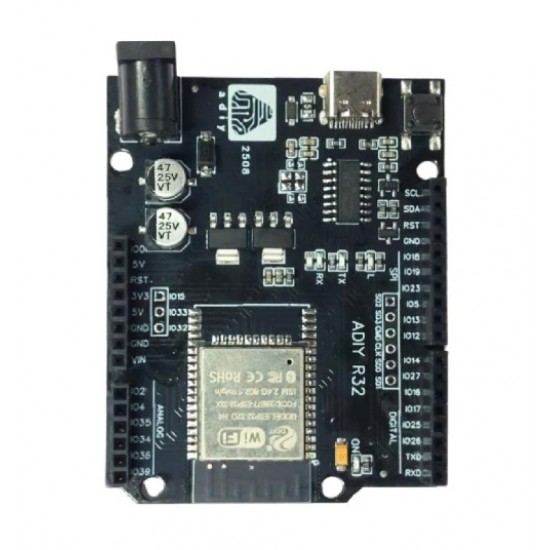

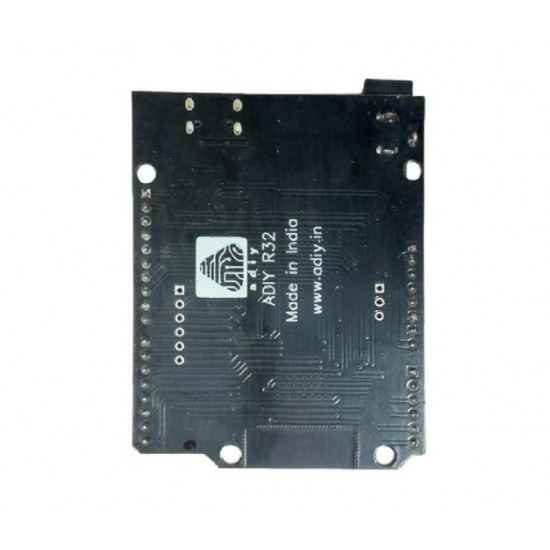

ADIY ESP32 Development Board Compatible with UNO
The ADIY ESP32 Development Board Compatible with UNO (D1 R32) combines the power of the ESP32-WROVER-32 with the familiar Arduino Uno form factor. Featuring WiFi, Bluetooth, USB Type-C, and 38 multifunction GPIOs, it is ideal for IoT, robotics, automation, and embedded development projects.
The ADIY ESP32 Development Board Compatible with UNO (D1 R32) is a high-performance microcontroller board built around the ESP32-WROVER-32 module, offering advanced wireless connectivity and exceptional processing power. Designed in the Arduino Uno form factor, it ensures compatibility with a wide range of shields and accessories while providing the flexibility of ESP32’s robust architecture.
Equipped with Wi-Fi (802.11 b/g/n/e/i) and Bluetooth 4.2 (Classic + BLE), this board is ideal for IoT, automation, and robotics applications. It supports USB Type-C for programming, a CH340C USB-to-UART bridge, and a 3.3V onboard regulator for reliable operation. With 38 multifunctional GPIO pins, it supports a full range of peripherals including ADC, DAC, PWM, I²C, SPI, UART, and capacitive touch inputs.
The modular design allows users to swap the ESP32-WROVER module with an ESP32-WROOM variant, offering flexibility in performance and memory configurations.Whether for students, makers, or engineers, the ADIY D1 R32 offers a powerful yet user-friendly platform for embedded projects.
Features
- Based on ESP32-WROVER-32 module
- Compatible with Arduino Uno form factor and shields
- Dual-core Tensilica LX6 CPU up to 240MHz
- Integrated WiFi 802.11 b/g/n/e/i
- Bluetooth 4.2 Classic + BLE
- USB Type-C programming and power interface
- CH340C USB-to-UART bridge
- 38 multifunction GPIO pins
- Supports ADC, DAC, PWM, Touch Sensor, SPI, UART, I²C, and I²S
- Replaceable ESP32 module design
- Onboard PCB antenna
- Ideal for IoT and wireless applications
Specifications
- Microcontroller: ESP32-WROVER-32
- CPU: Dual-core Tensilica LX6
- Clock Speed: Up to 240MHz
- SRAM: 520KB
- Flash Memory: 4MB
- PSRAM: Optional 8MB
- WiFi: 802.11 b/g/n/e/i
- Bluetooth: Bluetooth 4.2 (Classic + BLE)
- USB Interface: USB Type-C
- USB Bridge: CH340C
- GPIO Pins: 38
- ADC Channels: Up to 16
- DAC Channels: 2
- Touch Inputs: 10
- PWM Channels: Up to 16
- Logic Voltage: 3.3V
- Power Input: USB Type-C / DC Jack (7V–12V)
Package Includes
- 1 × ADIY ESP32 Development Board Compatible with UNO (D1 R32)
