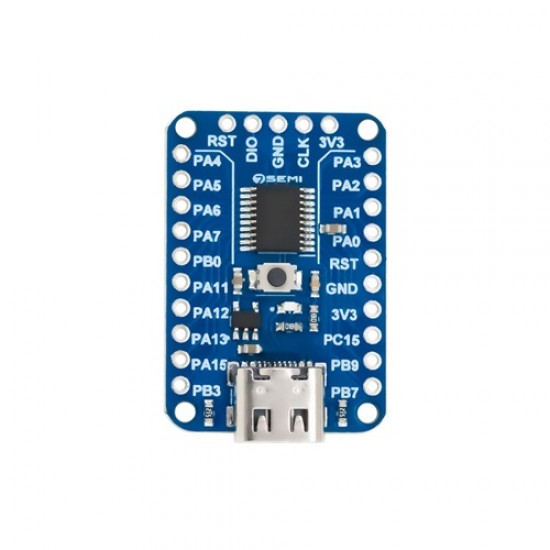

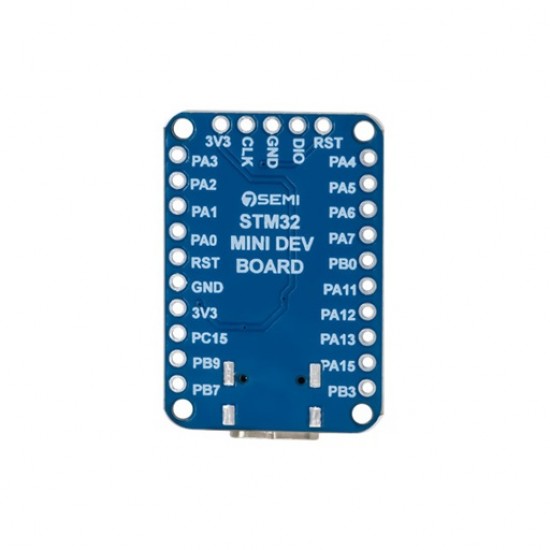

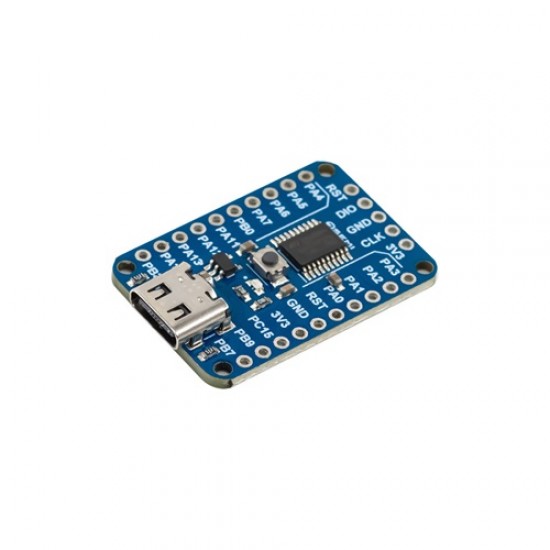

Anchor STM32 mini Development Board - STM32G030F6P6

The STM32G030F6P6 Anchor stands out as a compact development board that incorporates an ARM Cortex-M0+ core, powered by the STM32G030F6P6 microcontroller. Engineered for simplicity and functionality, this board encompasses essential circuitry required for the standard operation of the STM32F030R8T6 chip.

Effortless board powering is facilitated through the built-in USB Micro interface, ensuring convenient connectivity and operation. To streamline device debugging, a reset button is included, providing users with a simple means to reset the board when necessary. The board is also furnished with a Serial Wire Debug (SWD) program download and debugging interface, allowing for smooth programming and debugging tasks. Serving as an optimal platform for ARM Cortex-M0+ based projects, this development board caters to the needs of both beginners and experienced developers, offering a straightforward and efficient solution.

Moreover, this board is seamlessly integrable into industrial and appliance domains and is poised for Internet of Things (IoT) solutions.

Datasheet

Features

ARM Cortex-M0+ core board
Based on STM32G030F6P6 chip
Provides basic circuit for STM32F030R8T6 chip operation
Power supply via onboard USB-C Type interface
Reset button for user convenience during debugging
SWD program download/debugging interface

Specifications

Operating Voltage: 3.3V
ADC: 12-bit ADC (up to 16 channels)
Communication Interfaces: I2C, SPI, USART
Operating Temperature: -40°C to +85°C
Max Clock Frequency: 64 MHz
SRAM:8K
Flash Memory: 32 KB

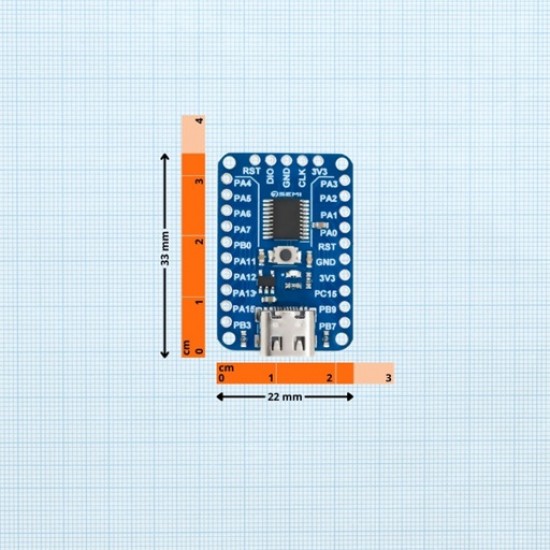

BDIMENSION:L=33mm W=22mm H=4.95mm

Package Includes

1x 7Semi Anchor STM32 mini Development Board - STM32G030F6P6
