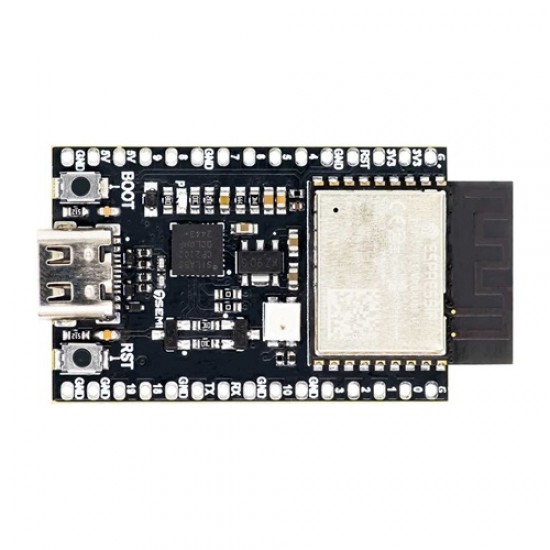

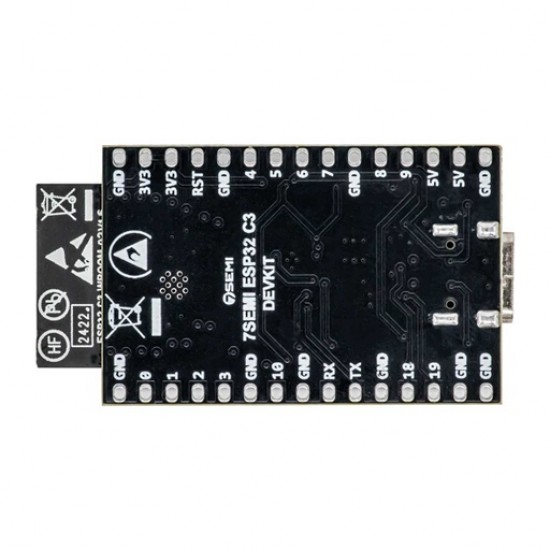

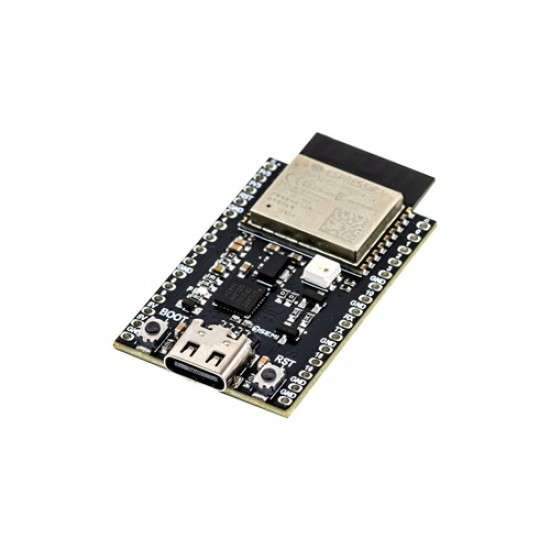

7Semi ESP32-C3-Dev-BoardC-02 – WiFi, Bluetooth, USB, RGB LED
The 7Semi ESP32-C3 Dev Board is a compact, breadboard-friendly development board engineered around the Espressif ESP32-C3FH4 chip—a 32-bit RISC-V single-core processor clocked at up to 160 MHz. With built-in 2.4 GHz Wi-Fi and Bluetooth 5 LE, this module provides an ideal balance of connectivity, power efficiency, and security.
The board integrates a USB Type-C port for power and programming, an onboard RGB status LED, and supports low-power operation modes, making it perfect for embedded wireless applications, sensor nodes, automation control, and rapid prototyping.
Features
- Processor: 32-bit RISC-V single-core @ up to 160 MHz
- Wireless:
- Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz) up to 150 Mbps
- Bluetooth® 5 LE: with Mesh, 2 Mbps, coded PHY (125 Kbps, 500 Kbps)
- Memory:
- 400 KB SRAM + 384 KB ROM
- 4 MB onboard flash
- USB: Full-speed USB Type-C interface (power, programming, debugging)
- Onboard RGB LED: Controllable via PWM for status or custom indication
- Peripheral Interfaces:
- I2C, SPI, UART, I2S, RMT
- 20+ GPIO pins, all clearly labeled
- Power:
- Powered via USB (5V)
- Onboard 3.3V regulator
- Security: Secure boot, flash encryption, digital signature, and hardware crypto (AES, SHA, RSA, HMAC)
- Low Power Modes: Modem-sleep, Light-sleep, Deep-sleep (5 µA typical)
Applications
- Wi-Fi-enabled IoT nodes and gateways
- BLE-based wearable and sensor devices
- Smart lighting, switches, and controls
- Industrial automation and telemetry
- Embedded prototyping with USB host/device
Specifications
- SoC: ESP32-C3FH4 (RISC-V, 32-bit Single-core @160 MHz)
- Wireless: Wi-Fi 2.4 GHz, Bluetooth 5.0 LE
- RAM / Flash: 400 KB SRAM, 4 MB SPI Flash
- USB Ports: 1 × USB-C (Power + Programming + Serial)
- Interfaces: I2C, SPI, UART, ADC, PWM, RMT, GPIO
- Operating Voltage: 3.3V logic (5V via USB input)
- RGB LED: WS2812-compatible onboard LED (multi-color)
- Power Modes: Active, Modem-sleep, Light-sleep, Deep-sleep
- Sleep Current:~5 µA (deep-sleep mode typical)
- Board Size: Approx. 45 mm × 25 mm
- Board Weight:~6 g
- Dev Environment: Arduino, ESP-IDF, PlatformIO
Package Includes
- 1x 7Semi ESP32-C3-Dev-BoardC-02 – WiFi, Bluetooth, USB, RGB LED
