The Barcode Scanner Module (E) is a Barcode/2D code scanner module, by using the intelligent image recognition algorithm, it can decode the 1D / 2D and DPM code on paper or PCB board quickly and accurately, compatible with multiple barcode formats including DotCode and DM, supports high accuracy, high speed and high contrast barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.

User Manual / Datasheet / Example Codes Etc.

Specifications

Resolution: 1080× 1280
Scan Angles: horizontal 70°, vertical 55°, roll 360°
Scan Mode: Sensing, Continuous, Manual (default)
Communication Interface

UART port (default 9600 8N1)
USB (USB keyboard/USB virtual port)

Operating Voltage: 5V
Current

Operating: 270mA
Standby: 140mA

Temperature

Operating: -30 ~ +60°C
Storage: -40 ~ + 70°C

Package Includes

Barcode Scanner Module (E)
PH2.0 4PIN cable

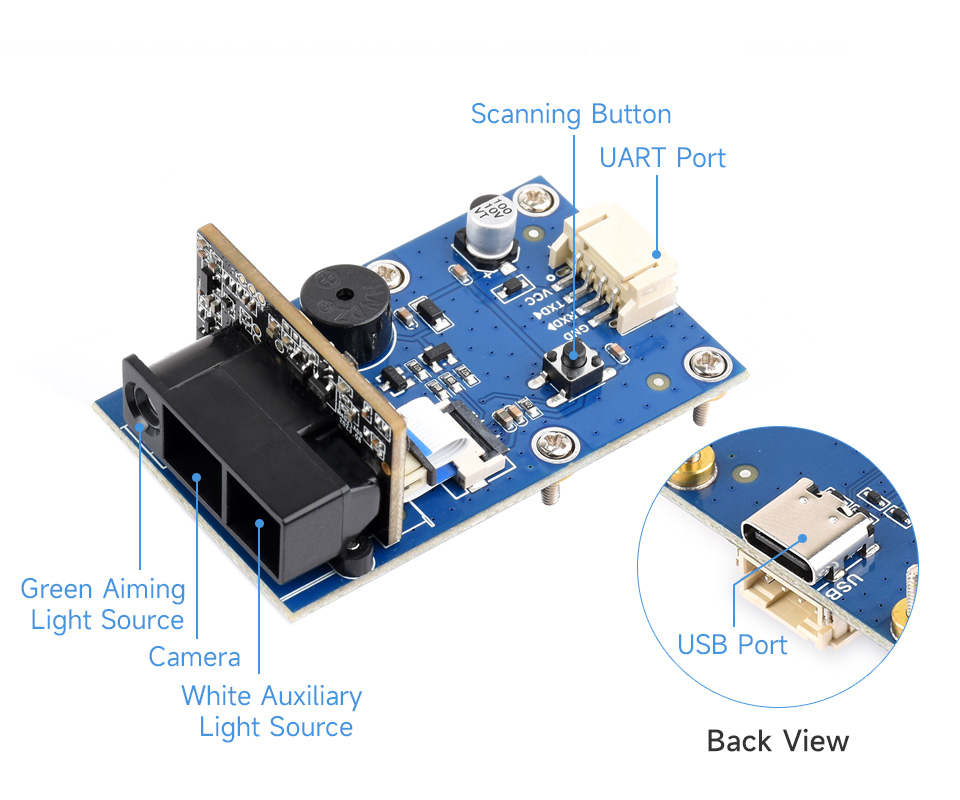

Onboard Resource

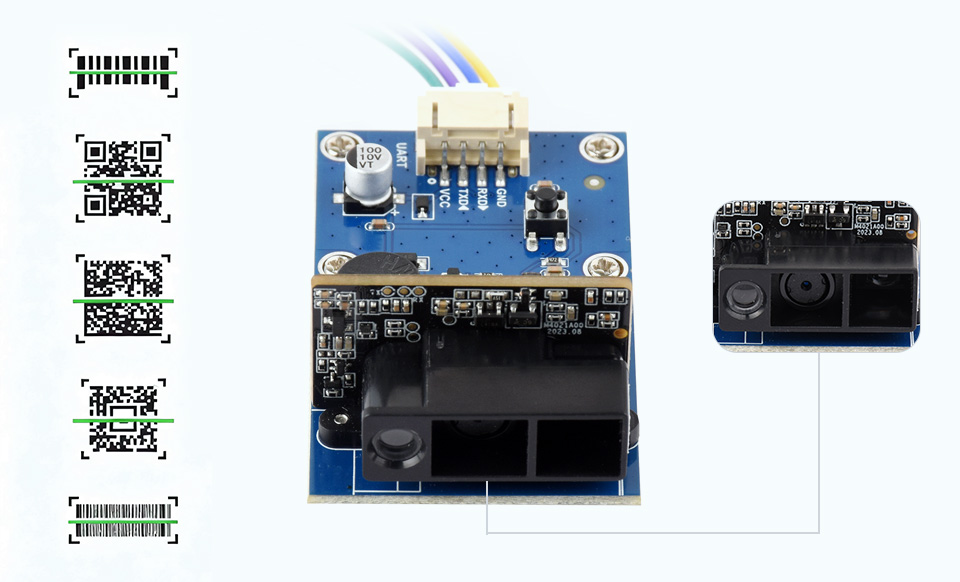

Supports Multiple Codes Scanning

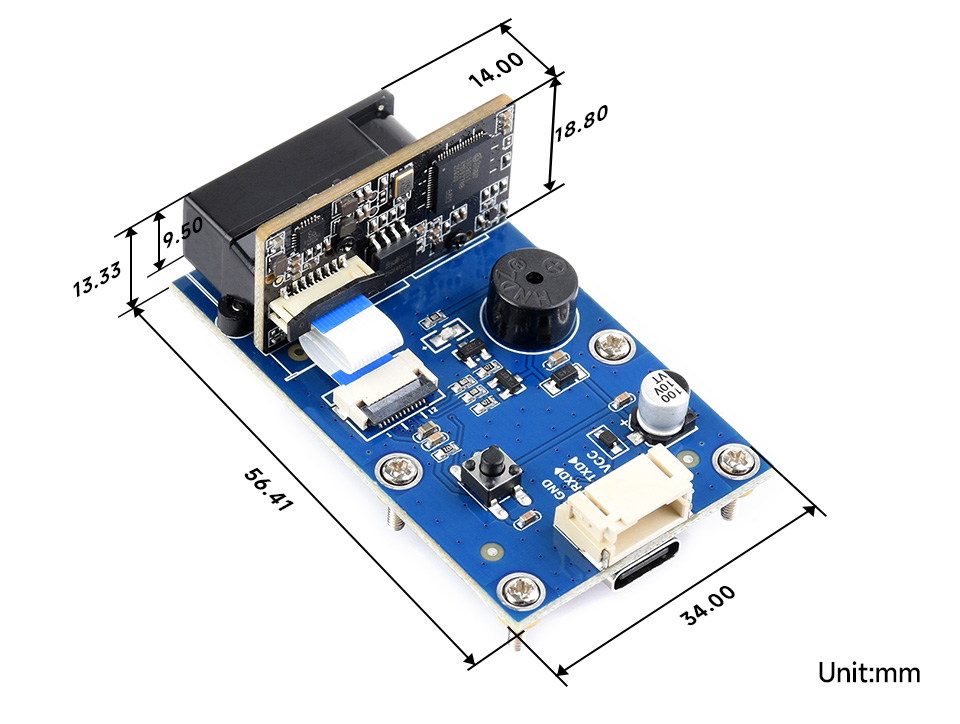

Dimensions
