The BP2831AJ is a high precision buck constant current LED driver. The device operates in critical conduction mode and is suitable for 85Vac~265Vac universal input offline LED lighting.
The BP2831AJ integrates a 500V power MOSFET. With patent pending MOSFET driving technique, the operating current of the IC is very low. So it doesn’t need the auxiliary winding for supplying the chip. It can achieve excellent constant current performance with very few external components, so the system cost and size are minimized.
The BP2831AJ utilizes patent pending current control method. It can achieve precise output current and excellent line regulation. The driver operates in critical conduction mode, the output current does not change with the inductance and LED output voltage.
The BP2831AJ offers rich protection functions to improve the system reliability, including LED open circuit protection, LED short circuit protection, VCC under voltage protection, CS resistor short circuit protection and thermal regulation function.
Features
- Critical Conduction Mode Operation
- Internal 500V Power MOSFET
- No Auxiliary Winding
- Ultra Low Operating Current
- ±5% LED Output Current Accuracy
- LED Open Protection
- LED Short Protection
- Current Sensing Resistor Short Protection
- VCC Under Voltage Protection
- Thermal Regulation Function
Resources
Applications
- LED Candle Light
- LED Bulb
- Other LED Lighting
Warranty Terms :
Branded products (Waveshare/ Raspberry Pi/ Radxa/ DWIN etc) are as per brand warranty terms. Generic products are eligible for replacement within 7 days of delivery based on following conditions.
Products are eligible for a replacement if there is physical damage during transit or a clear manufacturing defect. Any claim for damage/ wrong items/ replacement must be made within 48 hours of successful delivery of the product. Requests for refund of amount or exchange of product(s) will be reviewed on a case by case basis and HUBTRONICS carries final rights to take a final decision on refund, store credit or exchange.
What to take care of ?
Most of our products are technical in nature and require trained personnel to handle them. Any kind of mishandling can result in damage or malfunctioning of the product, it is not possible for us to provide a replacement or refund if the product is damaged due to technical or physical mishandling.
Who pays the return shipping cost?
Free of cost return pickup from delivery address is eligible for products categorized as manufacturing defect/ Damage in transit/ Wrong items delivered. We do not support return pickup for any B2B order or offline orders not placed on website. Buyer need to arrange return shipping for B2B orders.
What voids warranty?
Please note that replacement/ return or refund is not possible if the product is not compatible with your system/application. Please check all the technical details/ dimensions etc. before ordering and contact us for any kind of clarifications.
If product is soldered/ programmed at any point or physically altered in any way, it is not eligible for return/ replacement. If the item requires soldering for testing, please ensure that you use suitable clips or jig to test it without soldering. Any kind of soldering job makes the product ineligible for return or replacement.
Following items are not eligible for return under any circumstances
- Device Programmers / Dongles
- Soldering Consumables (Wire, Flux etc)

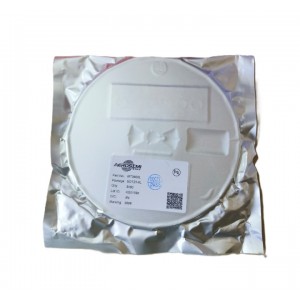

![[Reel of 3000] MT3608L 1.2MHz 2.5A DC-DC Step-up Boost Converter IC - SOT23-6 [Reel of 3000] MT3608L 1.2MHz 2.5A DC-DC Step-up Boost Converter IC - SOT23-6](https://hubtronics.in/image/cache/catalog/sagar/MT3608L-Reel-300x300w.jpg)
