Mini Base Board (A) / Mini-Computer designed for Raspberry Pi Compute Module 5 (NOT Included)
This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹3,709.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 31
B2B GST Credit Available
Price in reward points: 3143
- Stock: 0 in Stock
- SKU: 31231
- Delivery Time
- Bulk & B2B RFQ

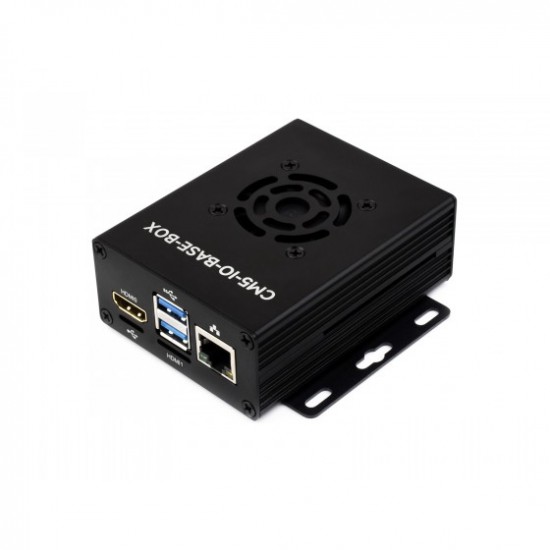

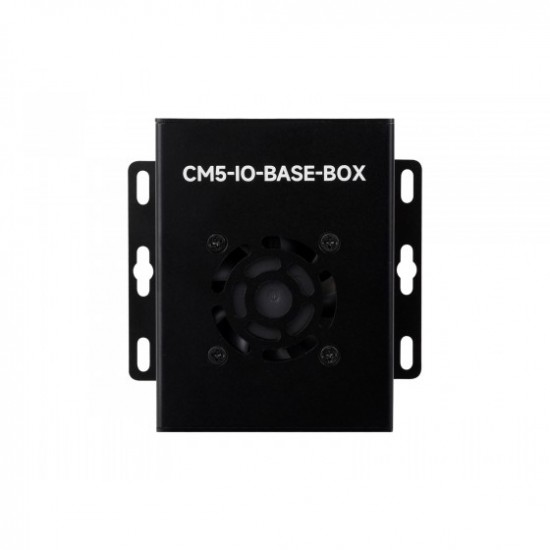

Mini Base Board (A) / Mini-Computer designed for Raspberry Pi Compute Module 5 (NOT Included)
As the IO board of the Raspberry Pi Compute Module 5, CM5-IO-BASE-A is a baseboard that can be used with the Raspberry Pi Compute Module 5. With powerful features are integrated into a compact design, it is only the size of a bank card. It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users.
Resources
User Manual / Datasheet / Example Codes Etc.
Specifications
| CM5 socket | suitable for all variants of Compute Module 5 |
|---|---|
| Networking | Gigabit Ethernet RJ45 connector |
| Connector | 16PIN PCIe (PCIe Gen2/3 x1) |
| Raspberry Pi 40PIN GPIO header | |
| USB | USB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2 |
| MIPI | 4-lane MIPI interface × 2 (22pin 0.5mm FFC connector) |
| Video | HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs |
| Storage | TF card slot for Compute Module 5 Lite (without eMMC) variants |
| Fan header | 5V, 4PIN JST-SH PWM connector |
| Power input | DC 5V 5A |
| Dimensions | the base board: 85 × 56mm |
| with metal case: 90 × 68mm |
Onboard Peripherals
- CM5 socket
suitable for all variants of Compute Module 5 - 40PIN GPIO header
for connecting various HAT / HAT+ modules - Power input/Programming
5V / 5A power supply, or used for eMMC burning - PCIe interface
for connecting various PCIe expansion boards - PSW Power button
Long press to force power off, short press to soft power off or on - STAT LED
Dual-color status LED - BOOT button
Press before powering on and release after powering on to enter the burning mode - Dual MIPI interfaces
for connecting DSI displays and CSI cameras - HDMI0 connector
HDMI0 port, supports 4K output - USB 3.2 Gen1 ports
2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation - RJ45 Gigabit Ethernet port
Supports 10M / 100M / 1000M network access - 4PIN JST-SH PWM Fan header
for connecting cooling fan, 5V power supply - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - IO-VREF selection
CM5 IO logic level: 3.3V (default) or 1.8V - Other function pins
WIFI / BT hardware disable or write protection - HDMI1 FFC connector
HDMI1 port, supports 4K output, can be connected through an adapter - USB 2.0 FFC connector
can be connected through an adapter - RTC battery holder
Supports CR / ML1220 button cell
Dimensions
Package Contents
- CM5-IO-BASE-B x1
- Metal case (top and bottom) x1
- Antenna connector rubber plug x1
- EVA foam pad x1
- CM5-FAN-4010-5V x1
- Rail-mount buckle x1
- Screws pack x1
- Screwdriver x1
- OPTIONS 27W Power Supply x1
