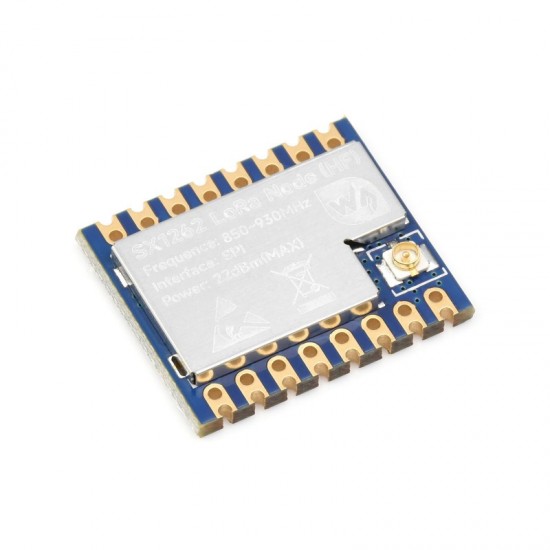

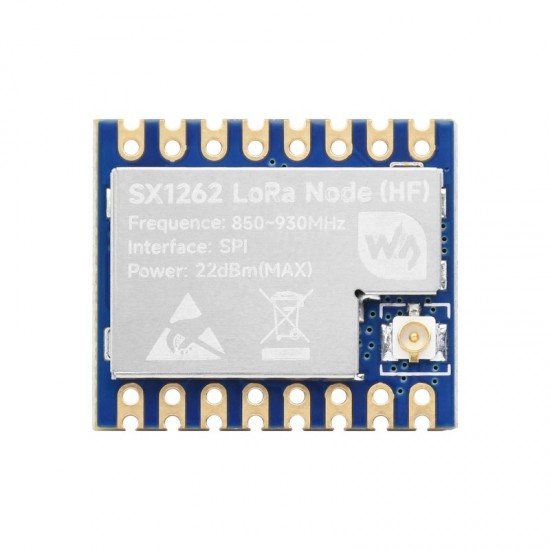

Core1262-868M Core1262-HF LoRa Module, SX1262, Anti-Interference, EU868 Band
₹741.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 7
B2B GST Credit Available
- Stock: 2 in Stock
- SKU: 20855
- Delivery Time
- Bulk & B2B RFQ
The Core1262-868M is a LoRa core module which incorporates new-generation SX1262 chip. It has featuress including mini size, long range transmission, high anti-interference capability, and so on. The module uses EU868 band, combined with LoRa gateway, it can be connected to servers like TTN server to build LoRa network.
Features
- New-generation SX1262, higher power efficiency and longer transmission distance than the traditional SX1278
- EU868 band, combined with LoRa gateway, quick connection to cloud servers like TTN server
- Comes with rich development resources and manual (examples for STM32, Raspberry Pi Pico)
Resources
Specifications
RF chip | SX1262 |
Frequency range | EU868 (863~870MHz) |
Modulation | LoRa/(G)FSK |
Data rate | 0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK) |
Emit power | > [email protected] |
Spreadind factor | SF5 ~ SF12 |
Operating voltage | 3.3V |
Module power consumption | emitting current: 45mA@14dBm receiving current: 5.3mA@125KHz |
Communication bus | SPI |
Operating temperature | -40 ~ 85℃ |
Connector | castellated edge / solder holes |
Dimensions | 21.00×52.00mm |

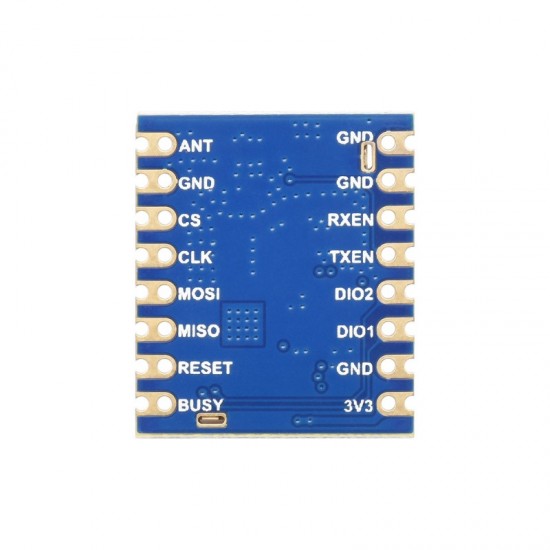

Pinout Diagram
![](https://www.waveshare.com/img/devkit/accBoard/Core1262-868M/Core1262-868M-details-3.jpg)
