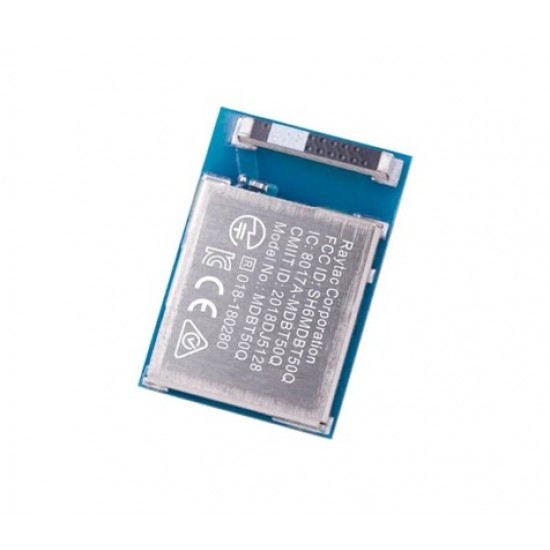

Raytac MDBT50Q-1MV2 Bluetooth 5.4 BLE Module with Nordic nRF52840 SoC, Chip Antenna, 1MB Flash, 256KB RAM

Raytac MDBT50Q-1MV2 Bluetooth 5.4 BLE Module with Nordic nRF52840 SoC, Chip Antenna, 1MB Flash, 256KB RAM
Raytac
Raytac MDBT50Q-1MV2 Bluetooth 5.4 BLE Module with Nordic nRF52840 SoC, Chip Antenna, 1MB Flash, 256KB RAM
Based on 0 reviews. - Write a review
₹​1,676.00
₹​1,420.34 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 14
B2B GST Credit Available
Price in reward points: 1420
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

Raytac MDBT50Q-1MV2 Bluetooth 5.4 BLE Module with Nordic nRF52840 SoC, Chip Antenna, 1MB Flash, 256KB RAM

The Raytac MDBT50Q-1MV2 is a compact and high-performance Bluetooth 5.4 Low Energy (BLE) module built around the powerful Nordic Semiconductor nRF52840 SoC. Designed for advanced IoT, wearable, smart home, industrial automation, and wireless sensor applications, this module combines ultra-low power consumption with robust multi-protocol wireless connectivity. Featuring an onboard chip antenna, 1MB Flash memory, and 256KB RAM, the MDBT50Q-1MV2 delivers reliable long-range wireless communication in a compact SMT package.

Powered by a 32-bit ARM Cortex-M4F processor, the module supports Bluetooth 5.4, Bluetooth Mesh, Thread, Zigbee, ANT+, and 2.4GHz proprietary protocols, making it highly versatile for modern wireless embedded designs. The module also provides multiple interfaces including UART, SPI, I2C, I2S, PWM, ADC, NFC, and USB for seamless integration with sensors, displays, and peripherals. Its pre-certified RF design simplifies product development and reduces time-to-market for commercial IoT devices.


Datasheet


Features

  • Based on Nordic nRF52840 multiprotocol SoC
  • Supports Bluetooth 5.4, BLE, Thread, Zigbee, ANT+, and Mesh
  • Integrated chip antenna for compact wireless design
  • 1MB Flash memory and 256KB RAM
  • 32-bit ARM Cortex-M4F processor with floating point unit
  • Supports Bluetooth Long Range feature
  • USB, NFC, SPI, UART, I2C, I2S, PWM, ADC interfaces
  • Ultra-low power operation for battery-powered applications
  • Compact SMT form factor for embedded integration
  • Pre-certified with FCC, CE, IC, TELEC, KC, SRRC, NCC, RCM, and WPC
  • Supports OTA firmware updates and secure IoT applications
  • Suitable for wearable devices, industrial automation, smart home, and wireless sensor nodes


Specifications

  • Module Model: MDBT50Q-1MV2
  • SoC: Nordic nRF52840
  • Wireless Standard: Bluetooth 5.4 BLE
  • CPU: ARM Cortex-M4F 32-bit
  • Flash Memory: 1MB
  • RAM: 256KB
  • Antenna Type: Integrated Chip Antenna
  • Frequency Band: 2.4GHz ISM
  • Output Power: Up to +8 dBm
  • GPIOs: Up to 48
  • Interfaces: UART, SPI, QSPI, I2C, I2S, USB, NFC, PWM, ADC, PDM
  • Operating Voltage: 1.7V to 5.5V
  • Operating Temperature: -40°C to +85°C
  • Module Dimensions: 10.5 × 15.5 × 2.05 mm
  • Mounting Type: Surface Mount (SMD)
  • Compliance: RoHS & REACH compliant


Package Includes

  • 1x MDBT50Q-1MV2 Bluetooth 5.4 BLE Module with Nordic nRF52840 SoC, Chip Antenna, 1MB Flash, 256KB RAM
