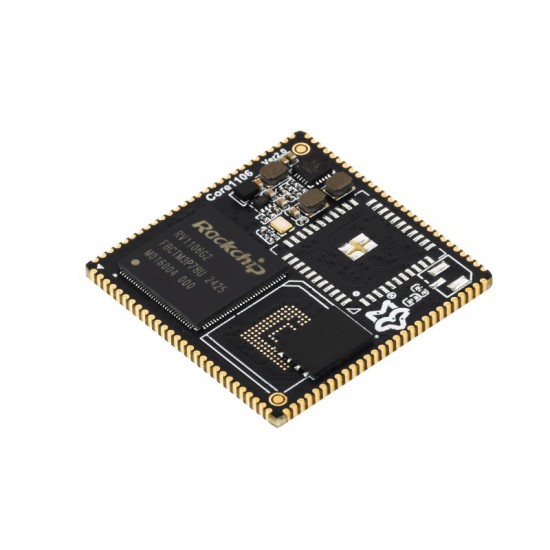

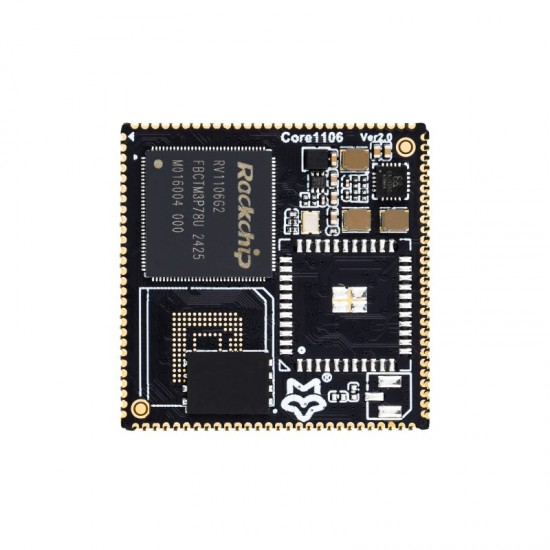

Luckfox Core1106 Core Board Based On Rockchip RV1106 Chip, 256MB RAM & 256MB SPI NAND, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors - Non Wireless

The Luckfox Core1106 Core Board is a compact and powerful embedded development board based on the Rockchip RV1106 processor, featuring 256MB RAM and 256MB SPI NAND Flash. It integrates an ARM Cortex-A7 processor, RISC-V MCU, NPU, and ISP, providing efficient computing, AI acceleration, and advanced image-processing capabilities in a small form factor.

Designed for embedded AI, computer vision, smart monitoring, industrial control, and IoT applications, the Core1106 provides a versatile platform for developers and system integrators. The integrated NPU supports AI inference acceleration, while the ISP is optimized for image-processing tasks. This non-wireless version is ideal for applications where wired connectivity or an external communication solution is preferred.

User Manual / Datasheet / Example Codes Etc.

Specifications

CPU: Options for RV1106G2 (0.5TOPS, 128MB DDR3L) or RV1106G3 (1TOPS, 256MB DDR3L)
Processor: Cortex A7 at 1.2GHz
ISP: Supports 5M at 30fps input
Video encoding: Hardware encoding, supports MJPEG, H264, H265
Display interface: Parallel RGB 18-bit × 1
Camera interface: MIPI CSI 2-lane × 2 or MIPI CSI 4-lane × 1
Microphone: Analog differential MIC interface × 2
Audio output: LINEOUT × 1
USB: USB 2.0 Host/Device
wireless module: Options for 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE
Ethernet port: 10/100M Ethernet controller and embedded PHY
Default storage: Options for eMMC (8GB) or SPI NAND (256MB)
Other resources: I2S × 3, I2C × 5, SPI × 2, SDIO × 2, ADC × 2, UART × 6, PWM × 12
Dimensions: 30 × 30 (mm)
Castellated holes: 112 Pin

Package Includes

Core110604N256 x1

Dimensions
