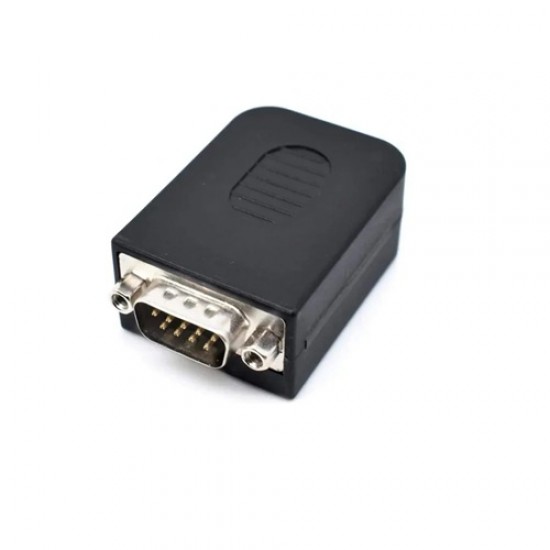

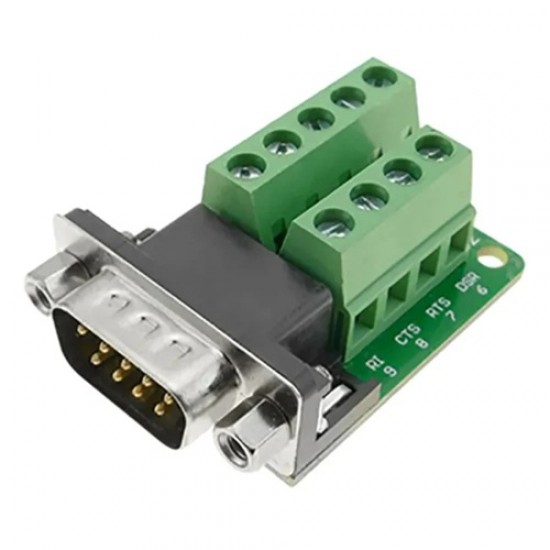

DB9 Male Screw Terminal to RS232/RS485 Conversion Board with Shell & Nut
The DB9 Male Screw Terminal to RS232/RS485 Conversion Board is a convenient serial communication adapter designed to simplify wiring and connectivity for industrial equipment, embedded systems, and electronic projects. It features a standard DB9 male connector and screw terminal blocks, allowing easy connection of serial communication signals without soldering.
The board supports convenient interfacing with RS232 or RS485 serial communication connections, depending on the connected device and circuit configuration. The screw terminals provide a secure and reliable method for connecting wires, making installation, maintenance, and troubleshooting easier. The included protective shell and mounting nut help provide mechanical protection and secure connector installation.
This compact adapter is suitable for use with microcontrollers, PLCs, industrial controllers, serial communication equipment, and other devices that use compatible DB9 interfaces. It is ideal for prototyping, equipment integration, and industrial communication wiring applications.
Features
- DB9 male connector for serial communication interfaces.
- Screw terminal blocks for convenient wire connections without soldering.
- Supports wiring for compatible RS232 or RS485 interfaces, depending on board configuration.

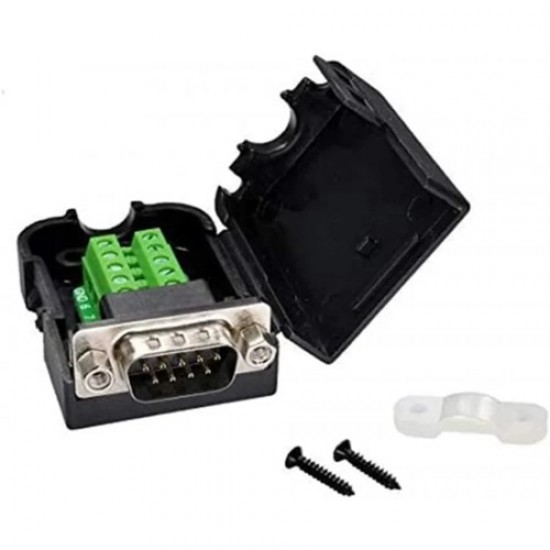

- Includes protective connector shell and mounting nut.
- Easy installation and maintenance.
- Compact design suitable for embedded and industrial applications.
- Simplifies serial port wiring for development and prototyping.
- Suitable for compatible PLCs, microcontrollers, industrial controllers, and serial communication devices.
Specifications
- Product Type: DB9 Screw Terminal Adapter Board
- Connector Type: DB9 Male
- Wiring Interface: Screw Terminal Block
- Communication Interface: RS232 / RS485 wiring, depending on configuration
- Connector Accessories: Shell and Nut Included
- Connection Method: Screw Clamp
- Soldering Required: No, for terminal wiring
- Applications: Serial communication, industrial control, embedded systems
- Installation: Panel or equipment connection, depending on mounting arrangement
Package Includes
- 1x DB9 Male Screw Terminal to RS232/RS485 Conversion Board with Shell & Nut
