B2B GST Credit Available
- Stock: 48 in Stock
- SKU: 07719
- Delivery Time
- Bulk & B2B RFQ

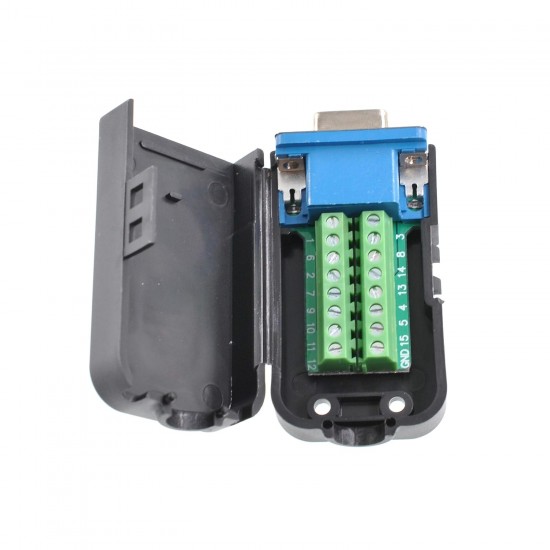

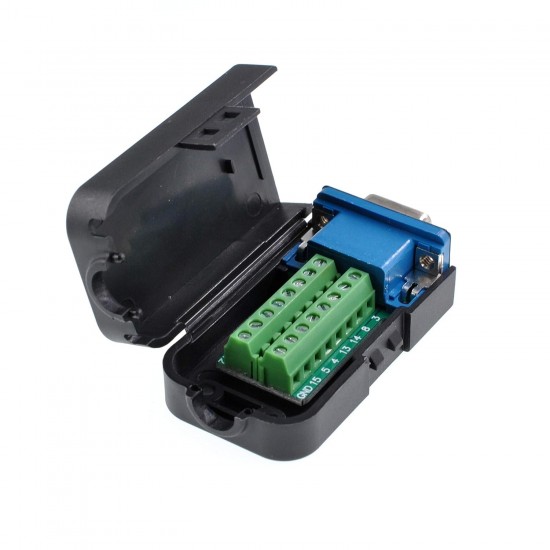

- 15-pin DB15 female connector breakout to screw terminals
- Sturdy enclosure for protection and durability
- Clear pin labeling for easy wiring and debugging
- No soldering required – plug-and-play terminal access
- Suitable for VGA, serial, and industrial signal applications
- Ideal for prototyping, testing, and repair work
Specifications
- Connector Type: DB15 (15-pin) Female connector
- Output Interface: Screw terminal block (one terminal per pin)

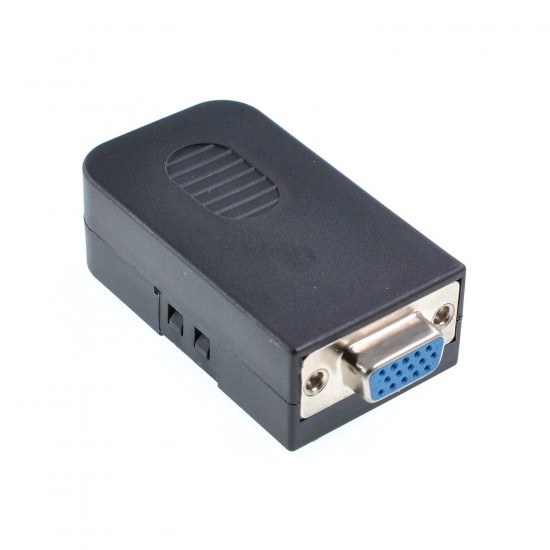

- Enclosure: Protective ABS plastic housing
- Pin Access: All 15 pins fully broken out and individually labeled
- Wiring Method: Screw clamp terminals (no soldering required)
- Mounting: Enclosed design suitable for desktop or panel use
- Compatibility: Standard DB15 / VGA-style connectors (application-dependent)
- Material: PCB base with metal contacts and insulated enclosure
- Use Case Voltage: Low-voltage signal applications (varies by system design)
- Installation: Plug-and-play connection with external wiring via terminals
- Operating Environment: Laboratory, workshop, and industrial prototyping environments
Applications
- VGA signal breakout and debugging for display interfaces
- Industrial control and automation systems signal access
- Serial communication prototyping and testing (RS232/RS485 variants depending on wiring use-case)
- Embedded systems development and hardware prototyping
- DIY electronics projects requiring DB15 pin access
- Educational labs for learning connector pin mapping and signal interfacing
- Repair and maintenance of legacy equipment using DB15 interfaces
- Custom wiring harness development and signal routing experiments
Package Includes

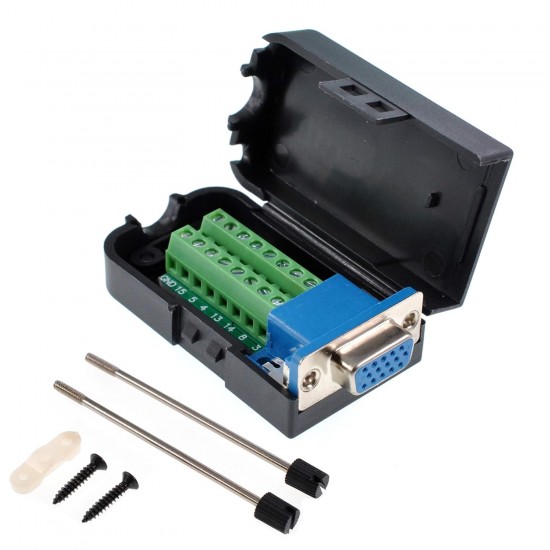

- 1x DB15 15-Pin Female Breakout Adapter with Screw Terminal | VGA Connector DIY Kit With Enclosure
