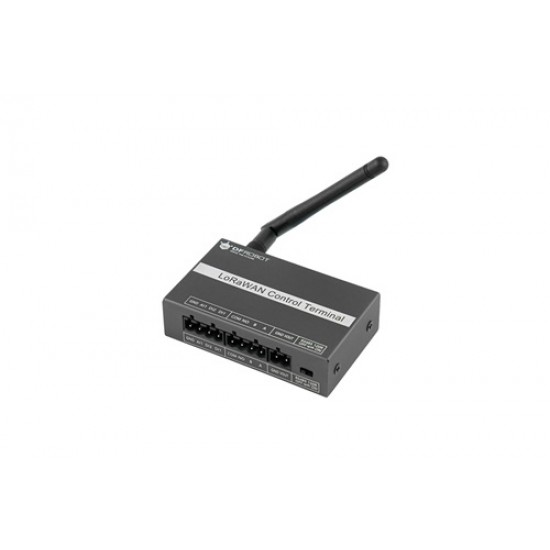

DF ROBOT LoRaWAN Control Terminal (EU 868MHz, 4km Range, RS485)

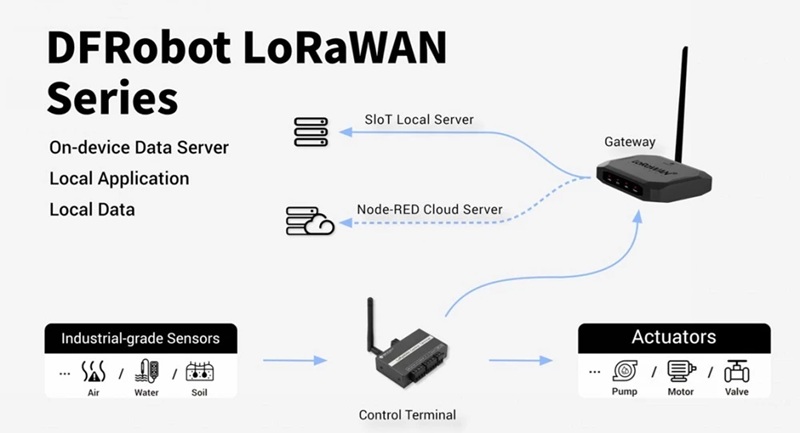

The LoRaWAN Control Terminal (868MHz) functions as a comprehensive Industrial IoT (IIoT) node designed to bridge the gap between physical field devices and remote cloud platforms. Operating on the 868MHz band (suitable for Europe and other ITU Region 1 areas), this wireless controller simplifies complex telemetry projects by integrating data acquisition, logic processing, and device actuation into a single, DIN-rail mountable unit.

It is specifically engineered for scenarios such as smart agriculture, building automation, and industrial monitoring, where reliable long-range communication and autonomous offline operation are critical. By combining versatile interfaces with standard LoRaWAN connectivity, this Remote Terminal Unit (RTU) offers a streamlined, cost-effective alternative to complex PLC and radio setups, allowing for rapid deployment in environments requiring both sensing and control.


User Manual / Datasheet / Example Codes Etc.


Applications

  • Smart Agriculture: Automated irrigation systems triggered by soil moisture data; greenhouse ventilation control.
  • Industrial Automation: Remote monitoring of factory machine status; reading Modbus data from energy meters.
  • Building Management: HVAC monitoring; automated lighting control based on ambient sensors.
  • Environmental Monitoring: Remote weather stations; water quality monitoring in aquaculture.


Specifications

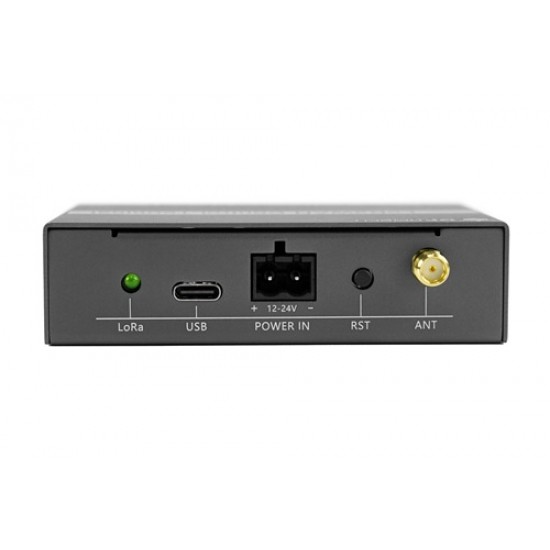

  • Input Voltage: 12-24V DC
  • Operating temperature: -10~60℃

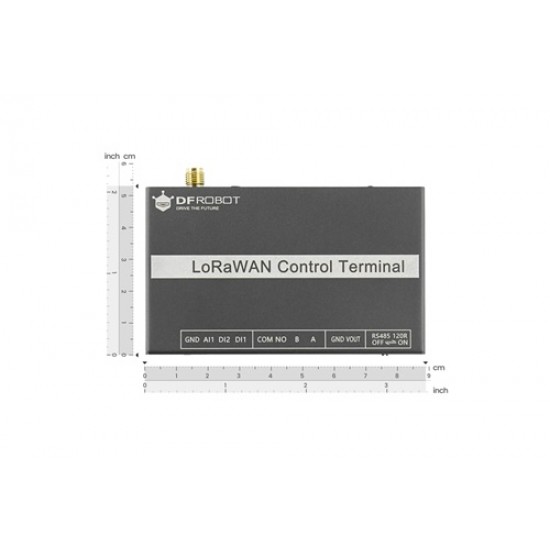

  • Product Dimensions: 89x53x24mm (excluding terminals and mounting parts)

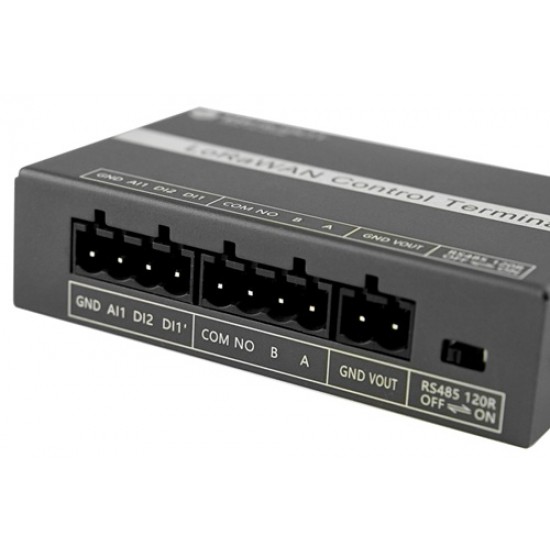

  • Communication Interface
    • RS485 x1: Modbus RTU Protocol
    • AI x1: 0-10V Analog Input
    • DI x2: Optocoupler isolated input, 5-24V
    • Relay output (normally open) x1: Touchpoint switching parameters 24VDC 3A/220VAC 3A
  • Wireless Parameters
    • Operating frequency band: 863~870MHz
    • Transmit Power: 16dBm
    • Receive Sensitivity: -137dBm/125kHz SF=12
    • Working Mode: OTAA/ABP Class A/C


Package Includes

  • LoRaWAN Control Terminal (868MHz) x1
  • Rubber Antenna x1
  • Mounting Lugs x2
  • DIN Rail Clips x2
  • M4*6 Mounting Screws x4
  • Plug-in Terminal (2P) x2
  • Plug-in Terminal (4P) x2
