Name: DF Robot RainbowLink V1 4 Channel USB to Serial Converter (RS485 / RS232 / TTL) (MPN: TEL0185)
Brand: DF ROBOT
SKU: 08558
Price: 1589.00 INR
Availability: OutOfStock

DF Robot RainbowLink V1 4 Channel USB to Serial Converter (RS485 / RS232 / TTL) (MPN: TEL0185)

New

DF ROBOT

DF Robot RainbowLink V1 4 Channel USB to Serial Converter (RS485 / RS232 / TTL) (MPN: TEL0185)

Based on 0 reviews. - Write a review

₹1,589.00

₹1,346.61 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 13
B2B GST Credit Available

Price in reward points: 1346

Stock: 0 in Stock
SKU: 08558
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

DF Robot RainbowLink V1 4 Channel USB to Serial Converter (RS485 / RS232 / TTL)

RainbowLink is an advanced USB protocol converter designed for efficient multi-channel serial communication and power output, tailored for IoT and industrial applications. Featuring 4 independent channels—RS485, RS232, and 2 TTL channels—RainbowLink serves as an all-in-one solution for engineers managing multiple communication protocols in IoT ecosystems. The device supports Windows and Linux operating systems, and it is compatible with devices like LattePanda and Raspberry Pi. RainbowLink is driver-free for most setups; however, installing the optional drivers enhances functionality by assigning unique device identifiers, making it even easier to manage.

With simultaneous 12V, 5V, and 3.3V power outputs, RainbowLink eliminates the need for multiple converters and external power supplies, making it ideal for testing and development across diverse industrial, agricultural, and laboratory environments.

User Manual / Datasheet / Example Codes Etc.

Specifications

USB Interface: Type-C
Input Voltage: 5V
Baud Rate: 2400 - 128,000 bps
TTL Level: 3.3V
TTL Channels: 2
RS485 Channel: 1
RS232 Channel: 1
Output Voltage:
3.3V: Rated current 200mA
5V: Directly connected to the Type-C interface (Max 2A when connected to a Type-C port on a computer; Max 500mA when connected to a USB-A port)
12V: Rated current 800mA
Compatibility: Supports Windows and Linux; compatible with LattePanda and Raspberry Pi.
Driver Requirements: Driver-free for basic functionality; installing drivers enhances performance with unique device identifiers.

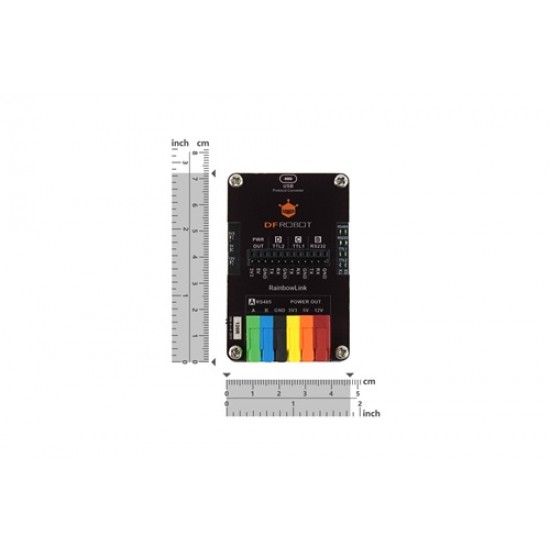

Dimensions: 72mm x 47mm x 23mm

Applications

Industrial Sensor Testing and Debugging
Multi-Protocol Device Debugging
Laboratory and Development Board Debugging

Package Includes

1x RainbowLink 4 Channel USB to Serial Converter (RS485 / RS232 / TTL)
