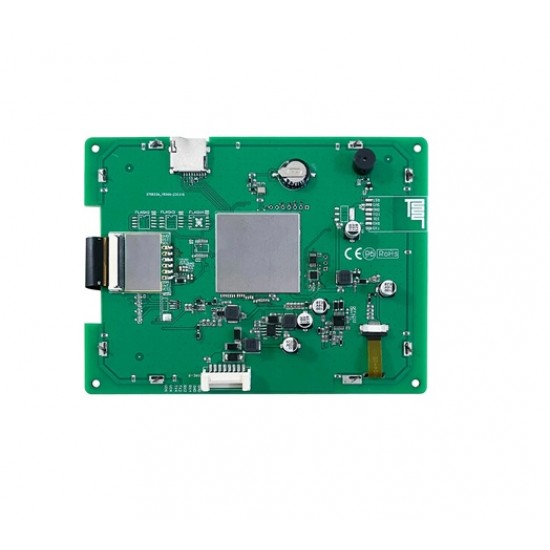

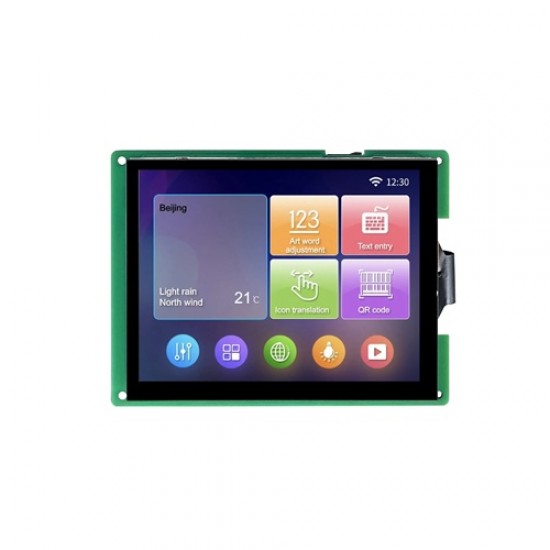

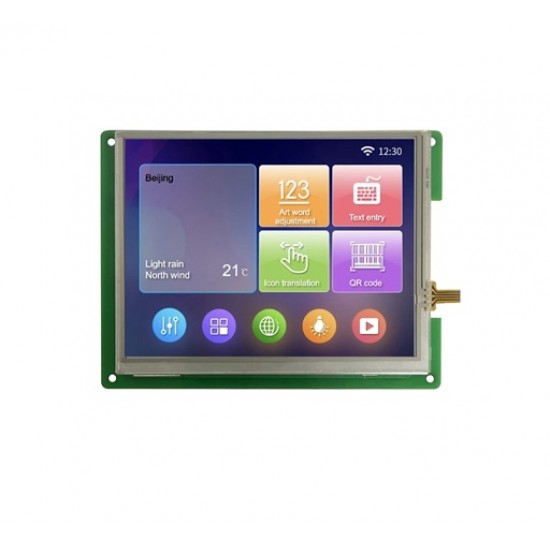

DWIN 5.7Inch Smart LCD, Capacitive Touch, IPS TFT 640×480 450nits LCD Display, DMG64480T057_01WTC (Industrial Grade)
The DMG64480T057_01WTC is a high-performance 5.7-inch Industrial Grade Smart LCD Display Module from DWIN, featuring a 640 × 480 VGA resolution IPS TFT panel, capacitive touch interface, and the powerful T5L0 processor with DGUS II HMI platform. Designed for industrial automation, medical equipment, instrumentation, energy management systems, and embedded HMI applications, this display offers wide viewing angles, reliable operation, and rapid GUI development without requiring extensive programming.
The module integrates a responsive capacitive touch panel with tempered glass, making it suitable for modern human-machine interfaces where durability and user experience are essential. Its 450-nit brightness, wide operating voltage range, and industrial-grade construction with conformal coating ensure dependable performance in demanding environments.
Features
- T5L0 chip, DGUS II System;
- Industrial Grade, IPS-TFT-LCD, Wide View Angle;
- 5.7 Inch, 640*480 Pixels resolution, 262Kcolors;
- With conformal coating.;
- Backlight Service Life: >30000 Hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness )
Specifications
- LCD Type: IPS, TFT LCD
- Viewing Angle: Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
- Resolution: 640×480 pixels (0°/90°/180°/270°)
- Color: 18-bit 6R6G6B
- Active Area (A.A.): 115.20mm (W)×86.40mm (H)
- Backlight Mode: LED
- Type: Capacitive touch panel
- Operating Temperature: -10℃~60℃ (12V @ 60% RH)
- Storage Temperature: -20℃~70℃
- Operating Humidity: 10%~90%RH, typical value of 60% RH
Package Includes
- 1x DWIN 5.7Inch Smart LCD, Capacitive Touch, IPS TFT 640×480 450nits LCD Display, DMG64480T057_01WTC (Industrial Grade)
