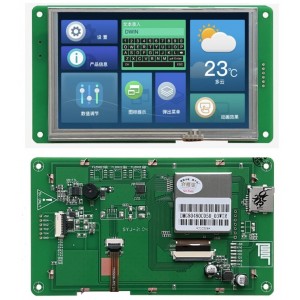

DWIN 5 Inch HMI LCD, No Touch, TN TFT 480x800 300nit UART LCM LCD Display, DMG80480C050_03WN

DWIN 5 Inch HMI LCD, No Touch, TN TFT 480x800 300nit UART LCM LCD Display, DMG80480C050_03WN
DWIN 5 Inch HMI LCD, No Touch, TN TFT 480x800 300nit UART LCM LCD Display, DMG80480C050_03WN
DWIN 5 Inch HMI LCD, No Touch, TN TFT 480x800 300nit UART LCM LCD Display, DMG80480C050_03WN
DWIN 5 Inch HMI LCD, No Touch, TN TFT 480x800 300nit UART LCM LCD Display, DMG80480C050_03WN
DWIN
DWIN 5 Inch HMI LCD, No Touch, TN TFT 480x800 300nit UART LCM LCD Display, DMG80480C050_03WN
₹​2,277.00
₹​1,929.66 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 19
B2B GST Credit Available
Price in reward points: 1930

DWIN 5 Inch HMI LCD, No Touch, TN TFT 480x800 300nit UART LCM LCD Display, DMG80480C050_03WN (Commercial Grade)

This model is the intelligent LCD display module with a No touch screen for user interactivity.  It has onboard serial UART PORT which can be controlled by any microcontroller via a  simple yet powerful command set. It can be used as TFT Display & Touch controller in various electronic equipment such as vending machines, currency counting machines, washing machines, and many other similar appliances.


Datasheet


Features

  • Running DGUS II system, commercial grade
  • 5.0inch 480xRGBx800 Pixels resolution, 24bit Colors
  • No touch
  • 10Pin1.0mm FCC connection wire,support TTL Interface
  • Easy to design,16Mb Flash, 128Kb RAM, 512Kb Nor Flash HMI Smart Display
  • High standard TFT LCD ,TN Panel. Viewing Angle is 70°/70°/50°/70° (L/R/U/D)
  • When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal


Specifications


Display

  • Color : 24-bit 8R8G8B
  • Display Area(A.A): 108.0mm (W)×64.8mm (H)
  • Resolution : 800×480
  • Backlight : LED
  • Brightness : DMG80480C050-03WN: 300nit


Voltage & Current

  • Power Voltage : 4.5~5.5V
  • Operation Current : VCC = +5V, Backlight on, 240mA ,  VCC = +5V, Backlight off, 70mA


Reliability Test

  • Working Temperature  : -20℃~70℃
  • Storage Temperature  : -30℃~80℃
  • Working Humidity : 10%~90%RH
