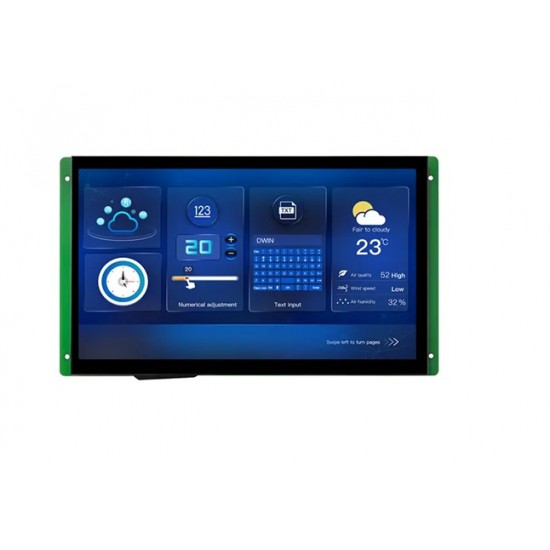

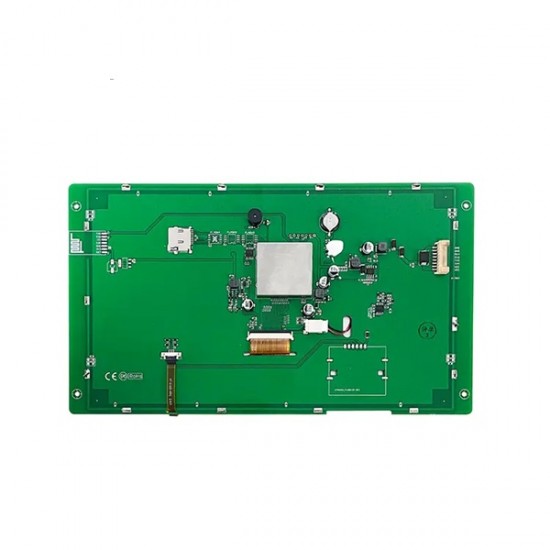

DWIN 10.1inch HMI LCD, Capacitive Touch 1024x600 450nits Industrial Grade LCD Display, DMG10600T101_09WTC
The DWIN 10.1-inch HMI LCD (Model: DMG10600T101_09WTC) is a high-performance industrial-grade display designed for advanced human-machine interface (HMI) applications. Featuring a crisp 1024×600 resolution and a responsive capacitive touch panel, this display ensures smooth and intuitive user interaction for modern control systems.
With a brightness of 450 nits, the screen delivers clear visibility even in well-lit industrial environments. Built for reliability and long-term operation, this HMI LCD is ideal for use in automation systems, smart devices, medical equipment, and embedded control panels.
The module integrates DWIN’s intelligent display technology, allowing developers to create rich graphical interfaces with ease, reducing development time and improving system efficiency.

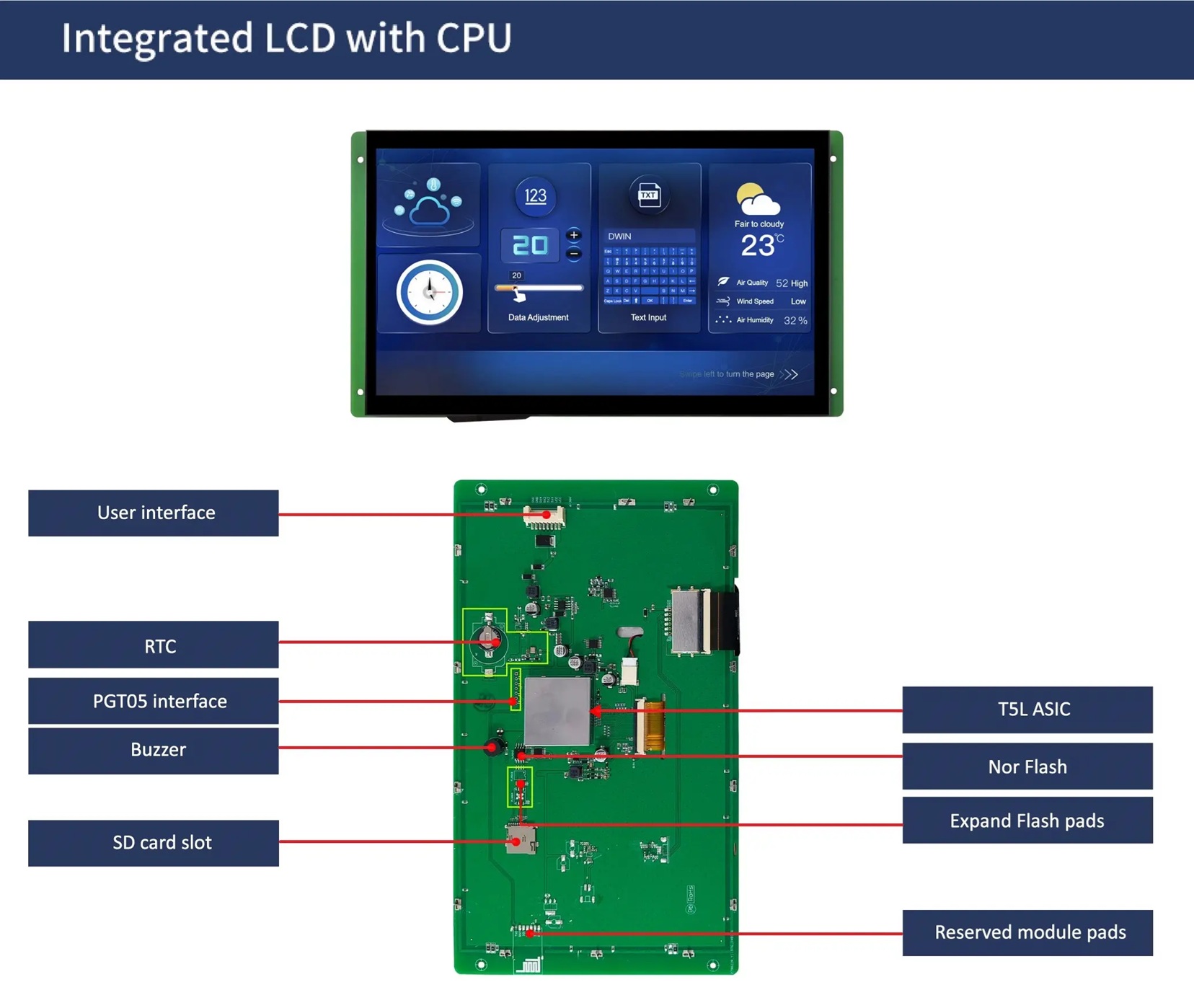

Features
- Based on T5L2, running DGUS II system, industrial grade
- 10.1-inch, 1024*600 Pixels resolution, 16.7M colors, IPS-TFT-LCD
- TTL/RS232, 8Pin_2.0mm connection wire
- Download Ways : SD card or on-line serial port
- Power supply：Default is 9~36V, 12V as default
- IPS Viewing Angle:85/85/85/85(L/R/U/D)
- With GUI & OS dual-core, GUI with rich controls. DWIN OS kenel is open to the second-development, via DWIN OS language or C51
Specification
- Model No: DMG10600T101_09WTC
- LCD Type: IPS
- Resolution: 1024×600
- Color: 16.7M
- Active Area: 222.72mm×125.3mm
- LED Lifetime: >30,000 h
- Brightness: 450nits
- Serial Mode: TTL/RS232*2
- User Interface: 8Pin_2.0mm
- Operating Voltage: 9~36V
- Operating Temperature: -20℃~70℃
- Storage Temperature: -30℃~80℃
- Conformal Coating: Yes
- Operating Humidity: 10%~90%RH, typical value of 60% RH
Package Includes
- 1x DWIN 10.1inch HMI LCD, Capacitive Touch 1024x600 450nits Industrial Grade LCD Display, DMG10600T101_09WTC
