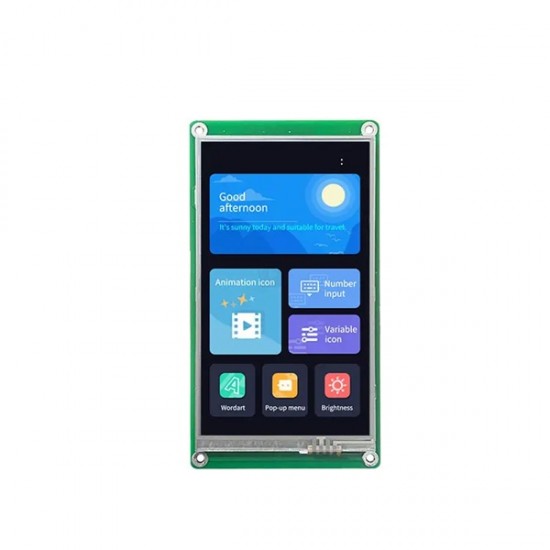

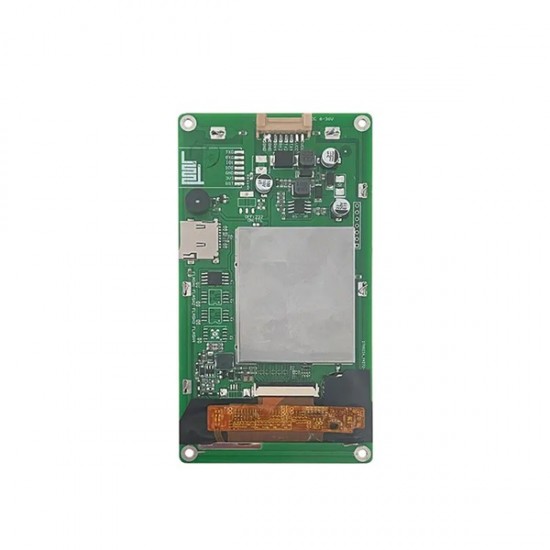

DWIN 5inch HMI LCD, Capacitive Touch, 1280×720 IPS TFT 300nits LCD Display, DMG12720T050_01WTC (Industrial Grade)
The DWIN DMG12720T050_01WTC is a 5-inch industrial-grade HMI LCD display designed for embedded control systems, automation panels, smart instruments, and industrial user interfaces. Featuring a high-resolution 1280×720 IPS TFT panel with capacitive touch support, this module delivers sharp visuals, wide viewing angles, and reliable touch performance for modern HMI applications.

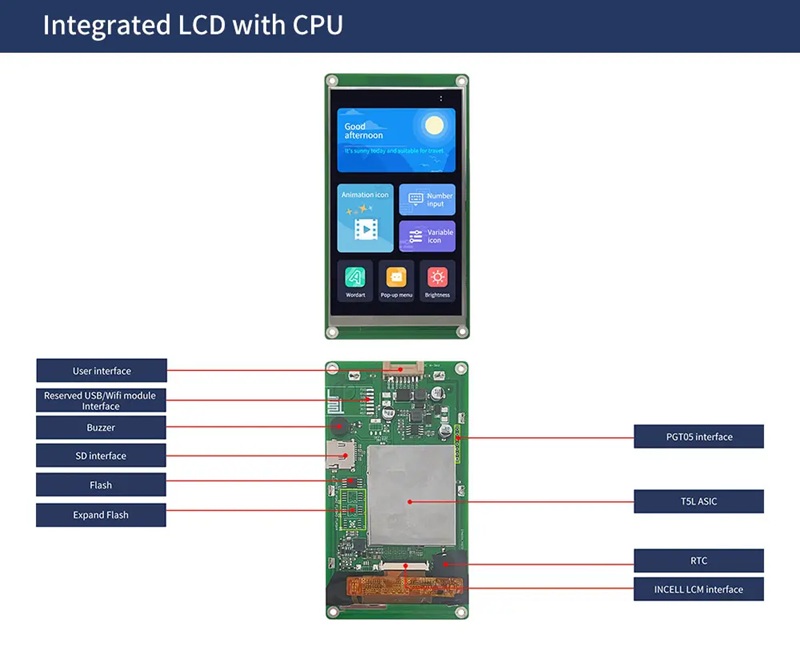

Powered by the DWIN T5L ASIC and DGUS II platform, the display enables rapid GUI development without complex coding, making it ideal for engineers and developers working on industrial automation, IoT, medical devices, smart home control systems, and machine interfaces. The module supports UART communication through TTL/CMOS or RS232 interfaces and allows project updates via SD card or serial port.
Features
- 5-inch IPS TFT LCD display
- 1280×720 HD resolution
- Capacitive touch panel with INCELL structure
- Industrial-grade HMI display module
- DWIN T5L ASIC-based DGUS II platform
- Wide 85° viewing angle
- 24-bit true color display
- UART communication support
- TTL/CMOS and RS232 interface compatibility
- SD card and serial port project download
- Easy GUI development without advanced coding
- Long-life LED backlight
- Supports portrait and landscape orientations
- Wide operating voltage range (9V–36V DC)
Specifications
- Model: DMG12720T050_01WTC
- Display Size: 5.0 Inch
- Display Type: IPS TFT LCD
- Resolution: 1280 × 720 Pixels
- Touch Type: Capacitive Touch
- Brightness: 300 nits
- Color Depth: 24-bit (16.7M colors)
- Viewing Angle: 85°/85°/85°/85°
- Active Area: 110.4mm × 62.1mm
- Backlight Type: LED
- Backlight Lifetime: >30,000 Hours
- Communication Interface: UART
- Interface Modes: TTL/CMOS, RS232
- Operating Voltage: 9V–36V DC
- Typical Power Supply: 12V DC
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Humidity Range: 10%–90% RH
- Flash Memory: 32MB NOR Flash
- Expansion Support: NOR/NAND Flash Expansion
- Development Platform: DGUS II
- Mounting Grade: Industrial Grade
Package Includes
- 5inch HMI LCD, Capacitive Touch
- 1280×720 IPS TFT 300nits LCD Display
- DMG12720T050_01WTC (Industrial Grade)
