₹3,540.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 30
B2B GST Credit Available
Price in reward points: 3000
- Stock: 0 in Stock
- SKU: 07314
- Delivery Time
- Bulk & B2B RFQ

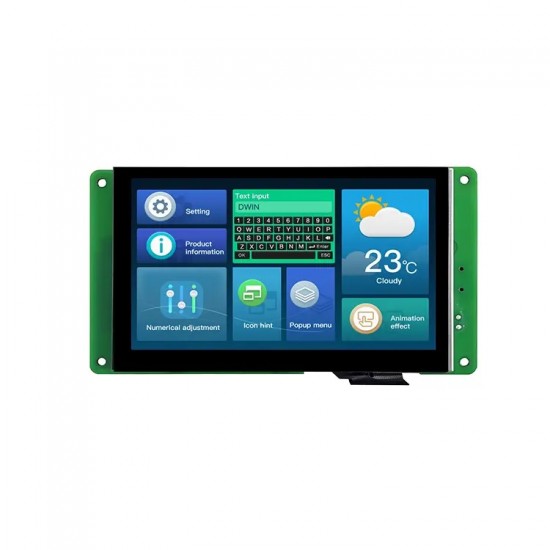

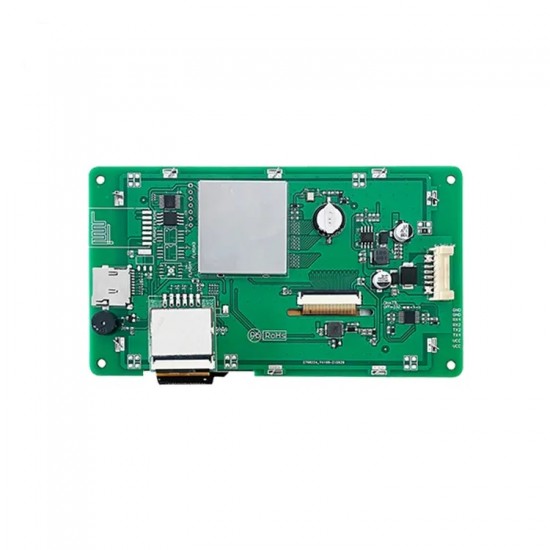

DWIN 5inch HMI LCD, Capacitive Touch, IPS TFT 800x480 250nits LCD Display, DMG80480T050_02WTC (Industrial grade)
The DWIN DMG80480T050_02WTC is a high-performance 5-inch Human-Machine Interface (HMI) display module, designed for seamless integration into industrial and embedded systems. Featuring a capacitive touch panel, a bright 800×480 resolution IPS TFT LCD, and a luminance of 250 nits, it offers excellent visibility, wide viewing angles, and responsive touch functionality.
This module supports DWIN’s DGUS II GUI development platform, allowing for easy UI design, fast deployment, and stable performance. It’s an ideal solution for control panels, automation systems, smart appliances, and more.
Featuers

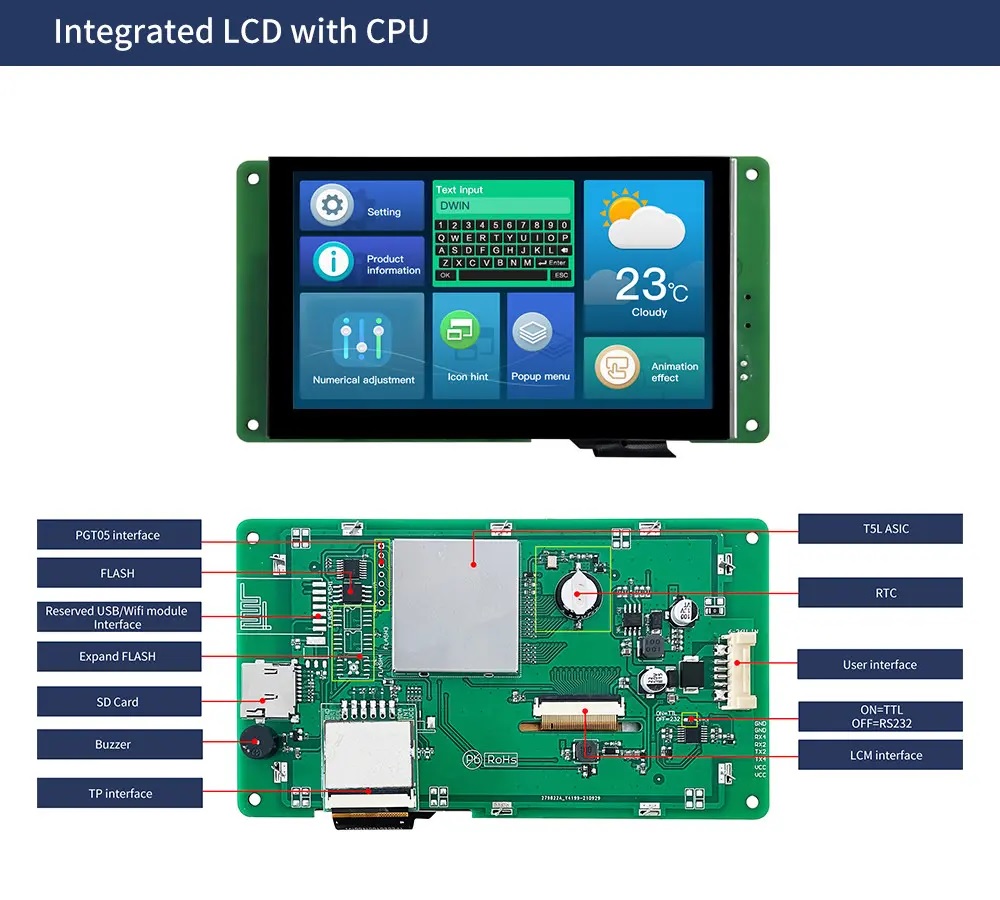

- 5 ″ IPS LCD-TFT,wide viewing angle,800xRGBx480,With conformal coating;
- Self-designed T5L ASIC,DGUSⅡ development mode ;
- TTL and RS232 optional ;
- Built-in RTC,USB or Wifi Module Optional, Support extended FLASH;
- Support SD card and DGUS tool on-line download ;
- V7.6 DGUS tool for GUI design, Zero code needed;
- Single 8051 chip with dual-core, GUI and Opened OS core. OS core can be programmed by DWIN OS language or C51 to instead of customer ’MCU .
Specifications
- LCD Type: IPS, TFT LCD Capacitive touch panel
- Structure: G+G structure with tempered glass surface and hardness ≥ 6H
- Light Transmittance: >85%
- Viewing Angle: Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
- Resolution: 800×480 pixels (0°/90°/180°/270°)
- Color: 18-bit 6R6G6B
- Active Area (A.A.): 108.0mm (W)×64.8mm (H)
- Backlight Mode: LED
- Backlight Service Life: >30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
- Brightness: 250nit
- Brightness Control: 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
- Operating environment
- Operating Temperature: -20℃~70℃ (12V @ 60% RH)
- Storage Temperature: -30℃~80℃
- Conformal Coating: Yes
- Operating Humidity: 10%~90%RH, typical value of 60% RH
