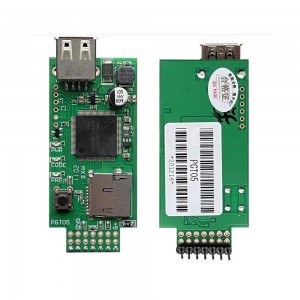

PGT05 - JTAG Kernel/ OS Burner Hardware for DWIN HMI LCDs PGT05 is a JTAG programmer which is specifically designed to update the OS/GUI Kernel (..
₹799.00
Ex Gst ₹677.12
FCC1015A Cable 10Pin 1.0mm Pitch 150mm Opposite Side Contact FFC Cable for DWIN HMI This is an accessory cable to be used with HDL662 USB to Seri..
₹28.32
Ex Gst ₹24.00
HDL65013 8 Way 2.00mm Connector Cable for DWIN HMI LCDsThis is an 8 way board to board connector. It can be used to connect the DWIN HMI LCDs to the d..
₹69.00
Ex Gst ₹58.47
8 Pin 2.0mm Pitch Connector Socket for DWIN HMI LCDs Compatible with HDL65013This connector is an accessory for DWIN HMI LCDs. This connector can be u..
₹15.00
Ex Gst ₹12.71
FCC-10-1.0 10Pin 1.0mm FCC Socket for DWIN HMI LCDsThis is an accessory for DWIN HMI LCDs. It is used as an user interface connector in many DWIN HMI ..
₹29.50
Ex Gst ₹25.00
This is an accessory cable meant to be used with HDL662B Adapter. It allows connection of HDL662B module with the host PC for programming and de..
₹147.50
Ex Gst ₹125.00
DWIN - HDL662S Debugging Adapter Board for CoF LCDsHDL662S is a debugging adapter board designed for F series COF screens. Lead out 22 IO ports, 3 UAR..
₹588.00
Ex Gst ₹498.31
16GB Class10 Micro SD CardMicro SD card with high speed class 10 specifications. With 16 GB memory capacity this SD card is suitable for usage with va..
₹590.00
Ex Gst ₹500.00
The product image is indicative, actual product may vary in color and looks. FeaturesLow cost and compact micro SD card reader module. High tran..
₹49.00
Ex Gst ₹41.53
HL-340 - USB to RS232 Adapter Cable - CH340 BasedCH340 chip based USB to RS232 full modem cable with moulded connector housing. This cable works p..
₹110.00
Ex Gst ₹93.22
DWIN HDL662K USB to Serial Port FFC Adapter Board - 10 Pi 1.0mm FCC InterfaceThe DWIN HDL662K USB to Serial Port FFC Adapter Board is a compact and re..
₹649.00
Ex Gst ₹550.00
WiFi-10 module for DWIN Cloud Development Platform ESP8266 + 4MB flash 2.4-2.5G AdapterThe WiFi-10 module is a feature-rich component designed for sea..
₹447.00
Ex Gst ₹378.81₹2,281.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 19
B2B GST Credit Available
Price in reward points: 1933
- Stock: 17 in Stock
- SKU: 04860
- Delivery Time
- Bulk & B2B RFQ
DWIN 3.5inch HMI SMART LCD, Capacitive Touch, IPS TFT 320x240 300nit LCD Display, DMG32240C035_03WTC
This is an DWIN 3.5inch HMI SMART LCD, Capacitive Touch, IPS TFT 320x240 300nit LCD Display, DMG32240C035_03WTC. The Dwin 3.5inch Smart TFT LCD based on T5L ASIC, IPS-TFT-LCD,16.7M Colors,24-bit, 320x240 pixel.
Features
- 3.5 inch based onT5L ASIC, IPS-TFT-LCD,16.7M Colors,24-bit, 320*240 pixel
- Capacitive touch screen
- TTL/CMOS interface,10Pin_1.0mm;
- Download via SD card or on-line serial port;
- Friendly DWIN DGUS V7.624 GUIs Development Software;
- 3150~3225600bps, typical value of 115200bps;
- Wide viewing angle: 85°/85°/85°/85°(L/R/U/D) ;
- Seperate GUI and OS CPU, No code for GUI design . DWIN OS language or Keil C51 development mode for OS CPU.
Display Data
- Color : 16.7M（16777216） colors
- LCD Type : IPS, TFT LCD
- Viewing Angle : Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
- Resolution : 320×240
Touch Specifications
- Type : CTP (Capacitive touch panel)
- Structure : G+G structure with surface cover of Asahi tempered glass
- Touch Mode : Support point touch and drag
- Surface Hardness : 6H
- Light Transmittance : Over 90%
- Life Over : 1,000,000 times touch
Brightness & Temperature
- Brightness : DMG32240C035_03WTC：300nit
- Working Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
- Working Humidity : 10%~90%RH
Reliability Test
- Working Temperature : -20℃~70℃ (5V @ 60% RH)
- Storage Temperature : -30~80℃
- Working Humidity : 10%~90%RH, typical value of 60% RH
Interface
| Power Voltage | 4.5~5.5V |
| Operation Current | VCC = +5V, Backlight on,170mA |
| VCC = +5V, Backlight off,60mA | |
| LCM interface | FPC54_0.5mm, RGB interface |
| Baudrate | 3150~3225600bps |
| Output Voltage | Output 1, Iout = 1mA;3.0~3.3 V |
| Output 0, Iout =-1mA;0~0.3 V | |
| Input Voltage （RXD） | Input 1， Iin = 1mA；2.4~5.0V |
| Input 0， Iin = -1mA；0~0.5V | |
| User Interface | 10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Buzzer | 3V passive buzzer. Power: <1W |
| SD interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| Reserved module interface | Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB flash disk |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to |
