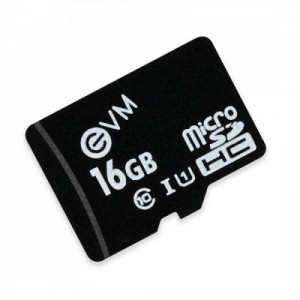

16GB Class10 Micro SD CardMicro SD card with high speed class 10 specifications. With 16 GB memory capacity this SD card is suitable for usage with va..
₹299.00
Ex Gst ₹253.39
The product image is indicative, actual product may vary in color and looks. FeaturesLow cost and compact micro SD card reader module. High tran..
₹49.00
Ex Gst ₹41.53
HL-340 - USB to RS232 Adapter Cable - CH340 BasedCH340 chip based USB to RS232 full modem cable with moulded connector housing. This cable works p..
₹110.00
Ex Gst ₹93.22₹4,195.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 31
B2B GST Credit Available
Price in reward points: 3159
- Stock: 6 in Stock
- SKU: 04862
- Delivery Time
- Bulk & B2B RFQ
DWIN 5inch HMI Serial LCD, Resistive Touch, IPS TFT 800x480 250nit LCD Display With Case, DMG80480T050_A5WTR (Industrial Grade)
This is a DWIN 5inch HMI Serial LCD, Resistive Touch, IPS TFT 800x480 250nit LCD Display With Case, DMG80480T050_A5WTR . The Dwin 5inch HMI TFT Resistive Touch Display comes with 16.7 millions RGB Colors with 250nit Brightness.
Features
- 800*480 pixels resolution, 16.7M Colors, IPS-TFT-LCD, wide viewing angle
- Industry Grade TFT LCD panel, IP65 protective level
- With shell, with conformal coating. Resistive/Capacitance touch screen
- RS232/RS485 Interface,8Pin3.81mm Socket
- Support point touch and drag
- Brightness is up to 250nit
- IPS View Angle: 85/85/85/85 (L/R/U/D)
Display
- Color : 16.7M（16777216） colors
- LCD Type : IPS, TFT LCD
- Viewing Angle : Wide viewing angle, 85
- °/85°/85°/85° (L/R/U/D)
- Display Area（A.A） : 65.6mm (W) ×108.8mm (H)
- Resolution : 800x480
- Backlight : LED
- Brightness : DMG80480T050_A5WTR: 250nit
Touch parameters
- Type : RTP (Resistive touch panel)
- Structure : ITO film + ITO glass
- Touch Mode : Support point touch and drag
- Surface Hardness : 3H
- Light Transmittance : Over 80%
- Life : Over 1,000,000 times touch
Voltage & Current
- Power Voltage : 6~36V
- Operation Current : VCC = +12V, Backlight on,130mA / VCC = +12V, Backlight off,60mA
Reliability Test
- Working Temperature : -20~70℃
- Storage Temperature : -30~85℃
- Working Humidity : 10%~90%RH
Interface
- LCM interface : FPC40_0.5mm, RGB interface
- RTP interface : FPC5_1.0mm
- Baudrate : 3150~3225600bps
- Output Voltage : Output 1, Iout = 1mA;3.0~3.3 V / Output 0, Iout =-1mA;0~0.3 V
- Input Voltage（RXD) : Input 1， Iin = 1mA；2.4~5.0V / Input 0， Iin = -1mA；0~0.5V
- Interface : UART2：N81, RS232 / UART4：N81, RS232 / UART5: RS485
- User interface : 8Pin_3.81mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
- Flash : 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
- Speaker : Onboard speaker. Power:2W
- SD interface : FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
- Reserved module interface : Wi-Fi module: connect to the cloud platform to update remotely / USB module: download files by USB flash disk
- PGT05 interface : When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
