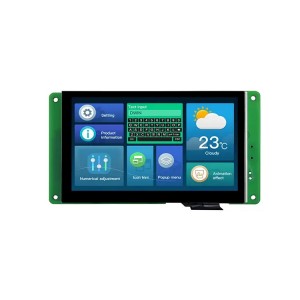

DWIN 5inch 800x480 Capacitive Android Intelligent IPS TFT LCD Display, DMG80480T050_32WTC (Industrial Grade)
The DWIN DMG80480T050_32WTC is a 5-inch capacitive Android intelligent IPS TFT LCD display, boasting an 800x480 resolution. Designed for industrial applications, this display offers exceptional visual clarity, robustness, and versatile functionality. It is ideal for HMI (Human-Machine Interface) applications, control panels, instrumentation, and various embedded systems.
Features
- Industrial Android intelligent display terminal based on RK3566, running Android 11 operating system.
- 5.0-inch, 800*480 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, capacitive touch.
- Compatible with WIFI, Bluetooth, microphone and other rich peripherals.
- Available for USB and SD card updates.
- Available for downloading Android general apps to realize functions such as Wi-Fi ,wired internet , browsing, music and video playback, data copy, etc.
- Available for TTL/CMOS, RS232 and Ethernet port and communicate with external devices.
Specifications
- Master Control Parameters
- Motherboard Level: Industrial
- CPU: RK3566, Cortex-A55, quad-core
- OS: Android 11
- FLASH: 8Gbytes EMMC
- RAM: 2Gbytes LPDDR4
- Note: This model do not support using Google Play Store.
- Display Parameters
- Color: 16.7M (16777216) colors
- Panel Type: IPS
- Viewing Angle: 85/85/85/85 (L/R/U/D)
- Active Area (A.A.): 108.0mm (W)*64.8mm (H)
- Visible Area (V.A.): 108.6mm (W)*65.4mm (H)
- Resolution: 800*480 Pixel
- Backlight: LED
- Brightness: 250nit
- Voltage & Current
- Power Voltage: 12~23V, Typical:12V
- Operation Current: VCC = +12V, Backlight on, 370mA - VCC = +12V, Backlight off, 120mA
- Recommended power supply: 12V 1A DC
- Reliability Test
- Working Temperature: -20~70℃, 60%RH at 12V voltage
- Storage Temperature: -30~80℃
- Working Humidity: 10%~90%RH
- Protective Paint: Yes
- ESD: Air discharge±8KV; Contact discharge±6KV
- EFT: Group pulse interference ±2KV
- CE (Conducted Emission): Class B
- Peripheral Interface
- COM: 1-way RS232(UART8) - 1-way TTL/COMS(UART5)
- USB Interface: HOST*1,OTG*1
- Speaker Interface: 2Pin_1.25mm interface
- SD card Interface: Drawer type card slot(Max 64G)
- Ethernet Interface: 10/100Mbps
- WIFI Interface: IEEE 802.11Bb/g/n,2.4G,Bluetooth
- RTC: Super-capacitor for power. Accuracy: ±20ppm @25℃
