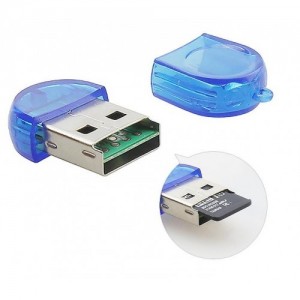

The product image is indicative, actual product may vary in color and looks. FeaturesLow cost and compact micro SD card reader module. High tran..
₹49.00
Ex Gst ₹41.53
HL-340 - USB to RS232 Adapter Cable - CH340 BasedCH340 chip based USB to RS232 full modem cable with moulded connector housing. This cable works p..
₹110.00
Ex Gst ₹93.22
DWIN HDL662K USB to Serial Port FFC Adapter Board - 10 Pi 1.0mm FCC InterfaceThe DWIN HDL662K USB to Serial Port FFC Adapter Board is a compact and re..
₹649.00
Ex Gst ₹550.00
WiFi-10 module for DWIN Cloud Development Platform ESP8266 + 4MB flash 2.4-2.5G AdapterThe WiFi-10 module is a feature-rich component designed for sea..
₹447.00
Ex Gst ₹378.81This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹3,776.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 30
B2B GST Credit Available
Price in reward points: 3028
- Stock: 2 in Stock
- SKU: 04861
- Delivery Time
- Bulk & B2B RFQ
DWIN 7inch Intelligent HMI Serial LCD, Resistive Touch, TN-TFT LCD 800x480 230nit LCD Display With Case, DMG80480T070_15WTR (Industrial Grade)
This is an DWIN 7inch Intelligent HMI Serial LCD, Resistive Touch, TN-TFT LCD 800x480 230nit LCD Display With Case, DMG80480T070_15WTR. The Dwin 7inch TFT LCD come with Four-wire RTP Resistive touch panel 230nit brightness with 16.7 Millions colors, Which Based on T5L1, running DGUS II system.
Features
- Based on T5L1, running DGUS II system
- With built-in speaker, LED lamp and Photosensitive sensor
- With conformal coating, with shell，IP65 protective level
- 16MBytes NOR Flash, for fonts, pictures and audio files
- Easy-to-use DWIN DGUS V7.6 GUIS Development, no coding skills required
- Super-capacitor for power supply
- RS232,RS485 interface support MODBUS Protocol
Display
- Color : 16.7M（16777216） colors
- LCD Type : TN, TFT LCD
- Viewing Angle : Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
- Display Area（A.A）: 154.20mm (W) ×85.88mm (H)
- Resolution : 800x480
- Backlight : LED
- Brightness : 230nit
Touch Parameters
- Type : Four-wire RTP (Resistive touch panel)
- Structure : ITO film + ITO glass
- Touch Mode : Support point touch and drag
- Surface Hardness : 3H
- Light Transmittance : Over 80%
- Life : Over 1,000,000 times touch
Voltage & Current
- Power Voltage : 7~36V
- Operation Current : VCC = +12V, Backlight on,300mA / VCC = +12V, Backlight off,150mA
Reliability Test
- Working Temperature : -20~70℃
- Storage Temperature : -30~85℃
- Working Humidity : 10%~90%RH
Interface
| LCM interface | FCC50_0.5mm, RGB interface |
| RTP interface | FCC4Pin_1.0mm interface |
| Baudrate | 3150~3225600bps |
| Output Voltage (TXD) | Output 1, -13.2 V |
| Output 0, 13.2 V | |
| Input Voltage （RXD） | Input 1,-13.2V |
| Input 0,13.2V | |
| Interface | UART2：N81,RS232 UART4：N81,RS232 UART5：RS485 |
| User interface | 8Pin_3.81mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times Expandable to 64Mbytes NOR Flash |
| Speaker | Onboard speaker. Power: 2W |
| SD interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
